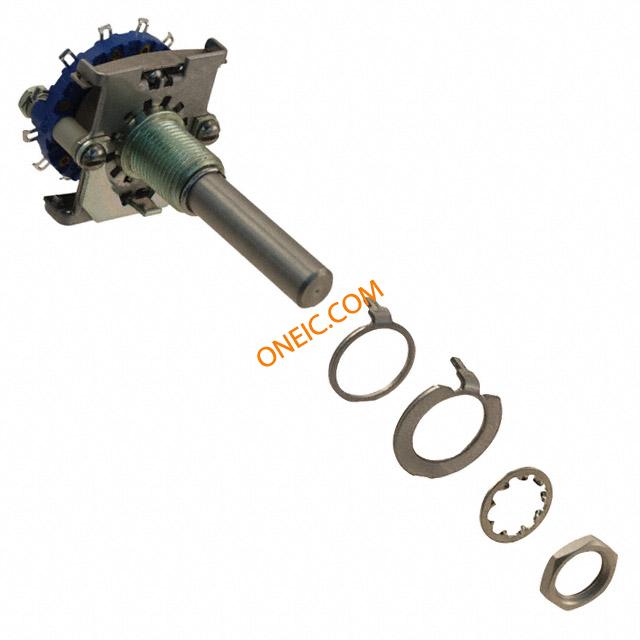

D2D0112N
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Other Names | 451-1056 |
| Subcategory | Switch Rotary | Product Category | Rotary Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
Electrical
| Voltage - Core | :115V | Voltage Rating | 115 V |
| Number of Poles | :1 | Dielectric Strength | 750VAC |
| Current Rating (Max) | 550 mA | Current - Max/Contact | :250mA |
| Contact Rating @ Voltage | 0.55A @ 28VDC | Voltage - Supply (Vcc/Vdd) | :28V |
Mechanical
| Weight | 0.036 | Orientation | Vertical |
| Termination | SolderLugs | Contact Type | Non Shorting |
| Actuator Type | Round (6.35mm dia) | Contact Shape | 30 deg |
| Mounting Type | Panel Mount | Angle of Throw | 30° |
| Contact Finish | Silver | Mounting Style | Panel |
| Termination Style | Solder Lug | Number of Positions | 2 ~ 12 |
| Material - Insulation | DiallylPhthalate | Mounting Hole Diameter | 3/8In. |
| Number of Poles per Deck | 1 | ||
Product Info
| Type | Rotary | Index Stops | Adjustable |
| Manufacturer | D2Series | Number of Decks | 1 |
| Circuit per Deck | SP12T | ||
Documents & Media
Sourcing & traceability
- Datasheet
- D2 Series Adjustable Stop Instr
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
