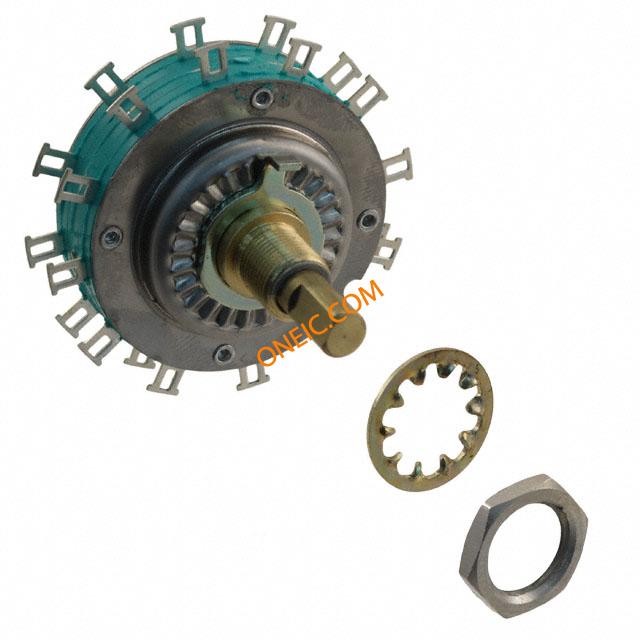

C7D0123N
| Manufacturer | |
| Description | SWITCH ROTARY SP-23POS ENCLOSED SWITCH ROTARY SP-23POS 28V Rotary Switches ROTARY SWITCH 1 POLE 1A Switch Rotary SP23T 23 Flatted Shaft Solder Lug 1A 125VAC 28VDC SWITCH, ROTARY, SP23T, 1A, 125V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Other Names | 451-1035 |
| Subcategory | Switch Rotary | Product Category | Rotary Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365005 |
Electrical
| Voltage - Core | :125V | Voltage Rating | 125 V |
| Number of Poles | :1 | Current Rating (Max) | 1 A at 28 VDC |
| Current - Max/Contact | :500mA | Contact Rating @ Voltage | 1A @ 28VDC |
| Voltage - Supply (Vcc/Vdd) | :28V | ||
Mechanical
| Weight | 0.1 | Orientation | Vertical |
| Contact Form | SP23T | Contact Type | Non Shorting |

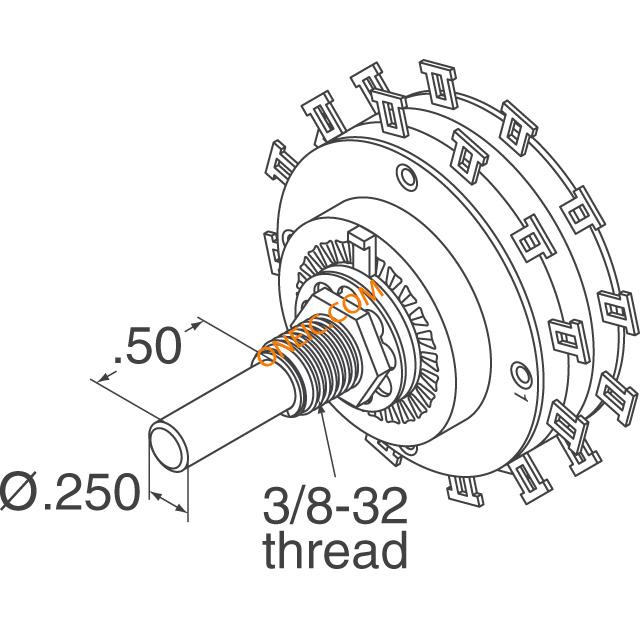

| Actuator Type | Flatted (6.35mm dia) | Contact Shape | 15 deg |
| Mounting Type | Panel Mount | Angle of Throw | 15° |
| Contact Finish | Silver | Termination Style | Solder Lug |
| Number of Positions | 23 | Number of Poles per Deck | 1 |
Product Info
| Number of Decks | 1 | Circuit per Deck | SP23T |
