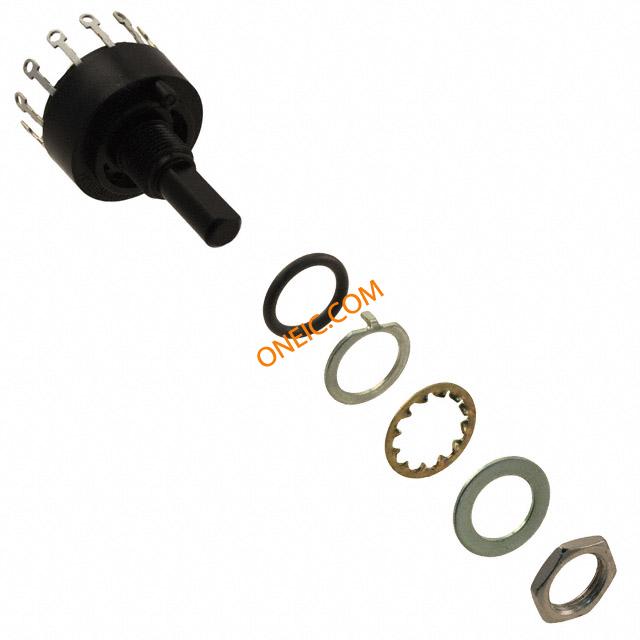

C5P0403N-A
| Manufacturer | |
| Description | SWITCH ROTARY 4P-3POS ENCLOSED SWITCH ROTARY 4P-3POS 28V Switch; Rotary (NON-SHORTING); C5 SERIES; 04 POLES; 02-03 PositionS. Rotary Switches 02-03POS/4P/1SECTION Switch Rotary 4P3T 3 Flatted Shaft Solder Lug 1A 125VAC 28VDC SWITCH, ROTARY, 4PDT, 1A, 125V Switch,Rotary;4Poles;2-3Pos.;1Section;Sealed;Non-shorting;1A;28VDC;SolderT. |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Subcategory | Switch Rotary |
| Product Category | Rotary Switches | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365007 |
Electrical
| Voltage - Core | :125V | Voltage Rating | 125 V |
| Number of Poles | :4 | Dielectric Strength | 1000VAC |
| Current Rating (Max) | 1 A | Current - Max/Contact | :1A |
| Contact Rating @ Voltage | 1A @ 28VDC | Voltage - Supply (Vcc/Vdd) | :28V |
Mechanical
| Weight | 0.018 | Orientation | Vertical |
| Termination | SolderLugs | Contact Type | Non Shorting |
| Actuator Type | Flatted (6.35mm dia) | Contact Shape | 30 deg |
| Mounting Type | Panel Mount | Angle of Throw | 30° |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | BrasswithSilverPlate | Termination Style | Solder Lug |
| Number of Positions | 2 ~ 3 | Material - Insulation | Polyester |
| Mounting Hole Diameter | 3/8In. | Number of Poles per Deck | 4 |
Product Info
| Type | Rotary | Features | FlatShaft |
| Index Stops | Adjustable | Manufacturer | C5Series |
| Number of Decks | 1 | Circuit per Deck | 4P3T |
Environmental
| Rated Life | 25000Cycles(Min.) | ||
