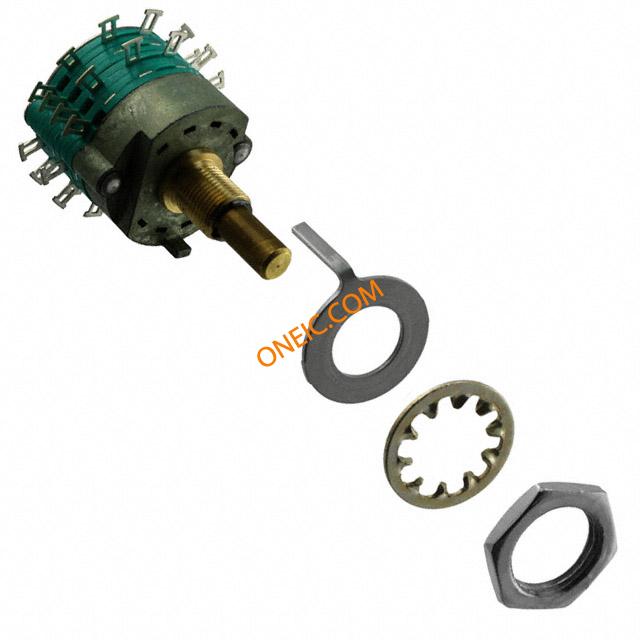

C4D0212N-A
| Manufacturer | |
| Description | SWITCH ROTARY DP-12POS ENCLOSED SWITCH ROTARY DP-12POS ENCLD 28V Switch; Rotary (NON-SHORTING); C4 SERIES; 02 POLES; 02-12 PositionS. Rotary Switches 02-12POS/2P/2 DECKS Switch Rotary DP12T 12 Flatted Shaft Solder Lug 0.5A 125VAC 28VDC SWITCH, ROTARY, DP12T, 500mA, 125V Switch,Rotary;2Poles;2-12Positions;2Decks;Non-shorting;0.5A;28VDC;SolderT. |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Subcategory | Switch Rotary |
| Product Category | Rotary Switches | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365005 |
Electrical
| Voltage - Core | :125V | Voltage Rating | 125 V |
| Number of Poles | :2 | Dielectric Strength | 1000VAC |
| Current Rating (Max) | 500 mA | Current - Max/Contact | :300mA |
| Contact Rating @ Voltage | 0.5A @ 28VDC | Voltage - Supply (Vcc/Vdd) | :28V |
Mechanical
| Weight | 0.073 | Orientation | Vertical |
| Termination | SolderLugs | Contact Type | Non Shorting |
| Actuator Type | Flatted (6.35mm dia) | Contact Shape | 30 deg |
| Mounting Type | Panel Mount | Angle of Throw | 30° |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | BrasswithSilverPlated | Termination Style | Solder Lug |
| Number of Positions | 2 ~ 12 | Material - Insulation | diallyllPhthalate |
| Mounting Hole Diameter | 3/8In. | Number of Poles per Deck | 1 |
Product Info
| Type | Rotary | Features | FlatShaft |
| Index Stops | Adjustable | Manufacturer | C4Series |
| Number of Decks | 2 | Circuit per Deck | SP12T |
Environmental
| Ingress Protection | IP67 | ||
