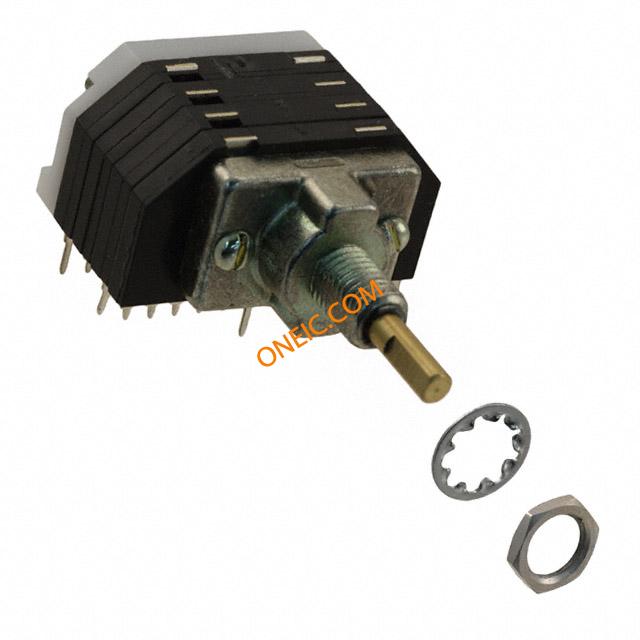

点击放大查看
C3P0406N-A
| Manufacturer | |
| Description | SWITCH ROTARY 4P-6POS ENCLOSED SW ROTARY 4P-6POS ENCLOSED 28V Switch; Rotary (NON-SHORTING); 04 POLES; 02-06 PositionS Rotary Switches 02-06 POS/4P/2 DECKS Switch Rotary 4P6T 6 Flatted Shaft PC Pins 0.25A 125VAC 28VDC Switch,Rotary;4Pole;2-6Positions;2Deck;12Pin/D;Non-shorting;.25A;28VDC;PCT. |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Subcategory | Switch Rotary |
| Product Category | Rotary Switches | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 125 V | Number of Poles | 4 |
| Dielectric Strength | 1000VAC | Current Rating (Max) | 250 mA |
| Contact Rating @ Voltage | 0.25A @ 28VDC | ||
Mechanical
| Orientation | Right Angle | Termination | SolderLugs |
| Contact Type | Non Shorting | Actuator Type | Flatted (3.17mm dia) |
| Contact Shape | 60 deg | Mounting Type | Panel, PCB Through Hole |
| Angle of Throw | 30° | Contact Finish | Silver |
| Mounting Style | Panel | Contact Material | BrasswithSilverPlate |
| Termination Style | PC Pin | Number of Positions | 2 ~ 6 |
| Material - Insulation | Polyester | Mounting Hole Diameter | 1/4In. |
| Number of Poles per Deck | 2 | ||
Product Info
| Type | Rotary | Features | FlatShaft |
| Index Stops | Adjustable | Manufacturer | C3Series |
| Number of Decks | 2 | Circuit per Deck | DP6T |
| Industry Aliases | C3P0406N - A | ||
Environmental
| Rated Life | 25000Cycles(Min.) | ||
