929937-3
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13-17 AWG TIN Automotive Connectors SKT 15-13 CUSN/SN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, SOCKET, 17 TO 13 AWG, CRIMP CONTACT, CRIMP, SOCKET, 15-13AWG, REEL JUN-POW-TIM KONTAKT |
| Category |
Business
| Product | Contacts | Other Names | A105118CT |
| Product Category | Automotive Connectors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3700 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Mechanical
| Weight | 0.01 | Packaging | Tape & Reel (TR) |
| Wire Gauge | 13-17 AWG | Termination | Crimp |
| Contact Type | Signal | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Pre-Tin |
| Mounting Style | Wire | Contact Material | Copper-Tin |
| Termination Style | Crimp | 1st Contact Gender | :Socket |
| Contact Termination | Crimp | Number of Positions | 1 |
| Contact Finish Thickness | 39µin (1.00µm) | Wire Gauge or Range - AWG | 15-13 |
Product Info
| Type | Power | Gender | SKT |
| Series | JPT | For Use With/Related Products | :Junior Power Timer Series Connectors |
Documents & Media
Similar Parts
1-967625-1
te connectivity / amp
Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Timer Connectors JR POW TIM 21P Power to the Board JR POW TIM 21P Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 21Housing Color = BrownNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT RECEPTACLE, JPT, 21WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:21 21 Position 5 mm Brown Female Socket Receptacle Housing Timer Connector
282189-7
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM YEL Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. SPLASH PROOF CONN. W.S.L.
2-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Heavy Duty Power Connectors 4P JPT RECT HSG Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, RECEPTACLE, 1 ROW, 4WAY, PBT-GF
282194-1
te connectivity / amp
Conn Housing RCP 7 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN JR PWR TIMER 7POS 5MM BLACK Junior Power Timer 7W receptacle housing Heavy Duty Power Connectors SP CONN W.S.L. Conn Housing RCP 7 POS 5mm Crimp ST Cable Mount Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 7Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer7Wreceptaclehousing TE Connectivity Junior Power Timer 系列 7路 黑色 母 外壳 , 焊接端接 SPLASH PROOF CONN. W.S.L.
1-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Power to the Board J-P-T GEH KOMPL 4P Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 4 POSITION
282192-3
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer - Seals CONN JR PWR TIMER 4POS 5MM BROWN SPLASH PROOF CONN. W.S.L.

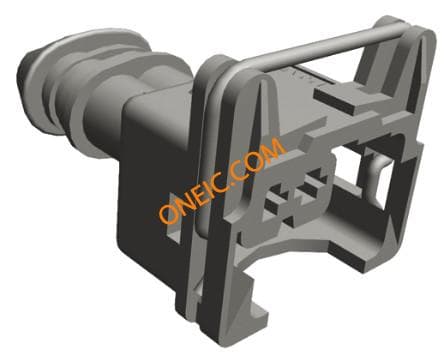

282189-2
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM GRAY Junior Power Timer 2W receptacle housing Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer2Wreceptaclehousing TE Connectivity Junior Power Timer 系列 2路 电缆安装 灰色 母 外壳 SPLASH PROOF CONN. W.S.L.

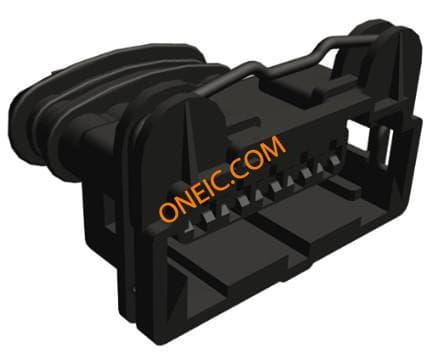

282193-1
te connectivity / amp
Conn Housing RCP 5 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN JR PWR TIMER 5POS 5MM BLACK Junior Power Timer 5W receptacle housing Automotive Connectors SPLASH PROOF CONN. W.S.L. Conn Housing RCP 5 POS 5mm Crimp ST Cable Mount Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 5Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer5Wreceptaclehousing TE Connectivity Junior Power Timer 系列 5路 黑色 母 外壳 , 焊接端接 SPLASH PROOF CONN. W.S.L.
282680-1
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer - Connectors CONN JR PWR TIMER 2POS 5MM GRAY Junior Power Timer 2W receptacle housing Automotive Connectors SPLASH PR.ASSY W.SEC LOCK2W TY Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = JPTNumber of Positions = 2PA 6.6 Housing MaterialHousing Color = GraySearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer3Wreceptaclehousing TE Connectivity Junior Power Timer 系列 2路 灰色 母 外壳 , 焊接端接 SPLASH PR.ASSY W.SEC.LOCK2W TY

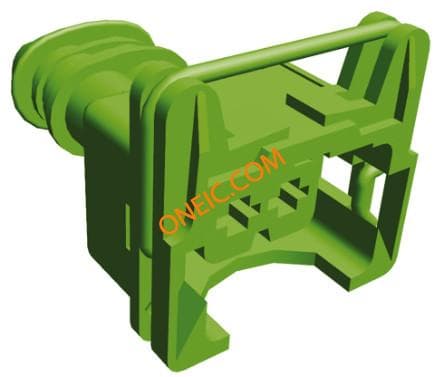

282189-4
