927853-6
| Manufacturer | |
| Description | Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece CONN POS LOCK 17-20AWG TIN Headers & Wire Housings POS-LOCK RCPT 6 3 Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece Product Highlights:ContactContact Gender = ReceptacleTab Fit = 6.35 x 0.81 mmTerminate To WireLine = Mark ISearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 REC TERMINAL 20-17 PTPB LP |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
Electrical
| Core Type | Open | ||
Mechanical
| Packaging | Bulk | Tab Width | 0.250" (6.35mm) |
| Cable Type | FLK | Insulation | Non-Insulated |
| Wire Gauge | 17-20 AWG | Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) | Release Force | .7 – 10.2 |
| Tab Thickness | 0.032" (0.81mm) | Terminal Type | Standard |
| Cable Material | Stranded | Connector Type | No |
| Contact Finish | Tin | Connector Usage | Wire & Cable |
| Insert Material | 黄铜 | Insertion Force | 低 |
| Operating Force | 7 – 100 | Contact Material | Brass |
| Length - Overall | 0.878" (22.30mm) | Package Quantity | 500 |
| Wire Termination | No | Termination Style | 母端 |
| Fits Terminal Size | 1.4 – 2.3 mm [ .055 – .091 in ] | Insulation Diameter | 0.055" ~ 0.091" (1.40mm ~ 2.31mm) |
| Insulation Material | No | Thickness - Overall | .41 mm [ .016 in ] |
| Pin Size - Above Flange | 6.35 mm [ .25 in ] | Pin Size - Below Flange | .81 mm [ .032 in ] |
| Diameter - Outside, Non-Expanded | 2.3 mm [ .091 in ] | ||
Product Info
| Note | FLKr-Wire：薄壁导线 | Gender | Female |
Documents & Media
Similar Parts
6-154719-6
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 BLACK Headers & Wire Housings POS LOCK ISO-HUELSE
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
365016-1
te connectivity / amp
Conn Housing RCP 8 POS ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Headers & Wire Housings 8P POSITIVE- LOCK RECEP HSG Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 8Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
926646-3
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST CONN RCPT HSG 8POS .250 NATURAL Headers & Wire Housings 8P POS-LOCK GEH 6,3
154719-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED
154719-4
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 YELLOW Housing 1way Rec 6.35mm Yellow Posi-Lock Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING1WAYREC6.35MM TE Connectivity Positive Lock 系列 1 触点 尼龙 压接端子外壳 PL 250 REC HSG 1P NYLON YELLOW
1-154719-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 NATURAL Headers & Wire Housings POSILOK RECEPTACLE Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RECEPTACLE PL 250 REC HSG 1P NYLON NAT
215528-1
te connectivity / amp
Conn Housing RCP 2 POS ST Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2P.POS.LOCK HSG.250 Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 2Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
927389-2
te connectivity / amp
Conn Housing PL 3 POS Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 3POS .250 WHITE Headers & Wire Housings 3 POS. POSITIVE LOC Conn Housing PL 3 POS Crimp ST Cable Mount Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 3Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
215956-1
te connectivity / amp
Conn Housing RCP 4 POS ST Positive Lock Connectors CONN RCPT HSG 4POS .250 BLACK
927553-1
te connectivity / amp
Conn Housing PL 2 POS 9.7mm Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2 POS POSITIVE LOCK HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
4-154719-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 BLACK Positive lock plug housing,1 way,6.35mm Headers & Wire Housings POS-LOCK INS SLEEVE Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelockplughousing,1way,6.35mm TE Connectivity Positive Lock Mark I 系列 1 触点 尼龙 压接端子外壳 POSITIVE LOCK (PL) RECEPTACLE
927389-1
te connectivity / amp
Conn Housing RCP 3 POS ST Positive Lock Connectors CONN RCPT HSG 3POS .250 BLACK Headers & Wire Housings 03P.POS.LOCK HSG.
539743-2
te connectivity / amp

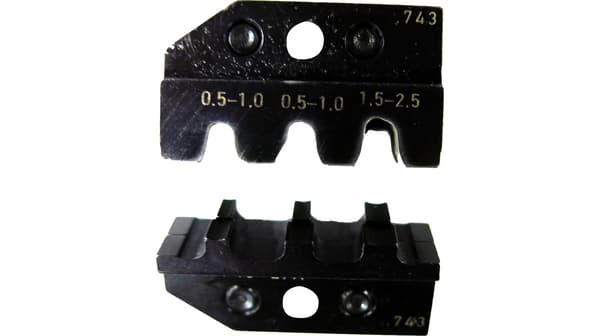

DIE F2.8FF TAB Punches & Dies DIE F2.8FF TAB TOOL DIE SET 2.8MM FF TAB Crimping dies, 539743-2, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具模具 , 0.5 → 1 mm²，1.5 mm²，2.5 mm² 线规格
