926898-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SPLIT PIN 20-14AWG M-N-LOK Contact,crimp,pin splt,Matenlok,20-14awg Power to the Board SPLIT PIN 20-14 AWG 926898-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SPLIT PIN, CONTACT, UMNL, 20-14AWG Contact,crimp,pinsplt,Matenlok,20-14awg Contact; male; 0.5÷2mm2; Universal MATE-N-LOK; tinned; crimped Crimp pin Male 20...14 AWG, 926898-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UNIV.M-N-L.PIN |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
Mechanical
| Weight | 0.031 | Material | :Brass |
| Packaging | Bulk | Wire Gauge | 14-20 AWG |
| Termination | Crimp | Contact Type | Power |
| Pin Diameter | :2.18mm | Pitch - Post | 6.35mm |
| Mounting Type | crimped | Pin or Socket | Split Pin |
| Connector Type | Connector Power | Contact Finish | Tin |
| Package / Case | in bulk | Contact Material | Brass |
| Package Quantity | 1000 | Connector - Cable | contact |
| Termination Style | Solder Tail | 1st Contact Gender | Pin (Male) |
| Contact Termination | Crimp | Insulation Diameter | :3.3mm |
| Wire Gauge or Range - AWG | 20-14 | Wire Gauge or Range - mm2 | :2mm² |
| Contact Material - Plating | tinned | Diameter - Outside, Non-Expanded | :3.3mm |
Product Info
| Spg | 1000 | Gender | PIN |
| Series | Mate-N-Lok | CAD Drawing | 3D CAD Model |
| Product Type | Contacts | Adapter Series | Universal MATE-N-LOK |
| Number of Units | 1 | For Use With/Related Products | :Universal MATE-N-LOK Connectors |
Documents & Media
Similar Parts
58637-2
te connectivity / amp
PRO-CRIMP DIE 20-14 UMNL Punches & Dies PRO-CRIMP DIE 20-14 UMNL TOOL PRO-CRIMP DIE 20-14 UMNL Pro-Crimper Hand Crimping With Die Assembly DIE, SDE, U/MNL
90546-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPR III HND TL ASSY PRO-CRIMPER UNIV M-N-L Crimper,Ratchet,20-14AWG,UniversalMNL TOOL, HAND CRIMP, TYCO UNIVERSAL-MATE-N-LOK CONTACTS Crimper;Ratchet;20-14AWG;UniversalMATE-N-LOKII;90546-2Die;PRO-CRIMPERIII Crimp tool, 90546-1, TE Connectivity
90546-2
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies PROCRIMPER DIE SET MATE & LOK II TOOL DIESET 14-20AWG UNI-MATE Die Set,20/14awg (1.52-3.3mm insul.) DIE SET, 20-14 AWG PROCRIMPERDIEASSYUNIVMNL Crimp insert for UMNL, 90546-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 20 → 14 AWG 线规格, 通用 MATE-N-LOK PROCRIMPER DIE ASSY UNIV MNL
539746-2
te connectivity / amp
ErgoCrimp Die Set For Universal Mate-N-Lok Punches & Dies DIE UMNL TOOL DIE SET UNIV MATE-N-LOK DIE SET, FOR SOCKET CONTACT UMNL DIE UMNL

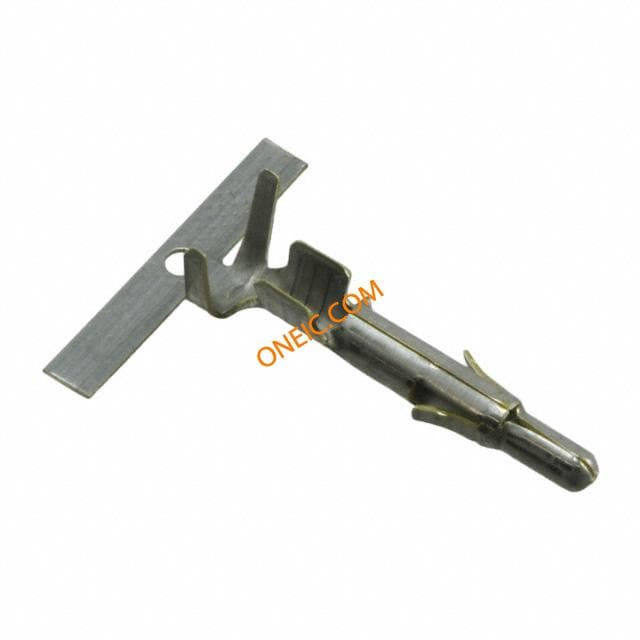

350538-1
