926475-6
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 CRIMP BLACK Connector,6way skt shell single row Headers & Wire Housings HSG RECPT 1X06P Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector,6waysktshellsinglerow Crimp housing Pitch2.54 mm Poles 6 Single row / straight AMPMODU MOD IV, 926475-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 MOD IV HSG SR 6 POS |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 6 |
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhm |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Length | 15.24 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Cable Exit | With | Orientation | 直 |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp |
| Mounting Style | Panel | Number of Rows | 1 |
| Package / Case | Receptacle | Connector Style | Single row |
| Height (Inches) | 14.2 | Housing Material | Polyester (PBT) |
| Package Quantity | 1000 | Primary Material | Connector |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | black | Mating Orientation | Without |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | 1st Connector Gender | Female |
| Mounting Hole Diameter | 不带 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Static Discharge Shielding | 带有 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Preloaded | No | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Manufacturer | IVSeries,ModSeries |
| Product Type | Housing | Connection Method | Wire-Board |
Environmental
| Operating Temperature | -25...+105 °C | ||
Documents & Media
Similar Parts
926478-1
te connectivity / amp
Connector Accessories Retention Plug Polycarbonate Black .100 AMPMODU Headers, Housings & Contacts CONN RETENTION PLUG W/STRAIN REL Headers & Wire Housings RETENTION FORK Connector Accessories Retention Plug Polycarbonate Black Product Highlights:AccessoryAccessory Type = Retention PlugWith Strain ReliefMod IVSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RETENTION FORK, BLACK RETENTION FORK
141603-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings MOD-4 REC.CONTACT .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26AWG 30GOLD CRIMP 141603-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD-4 REC.CONTACT
167021-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings RECPT 0.032-0.09 AU AMPMODU Mod IV, V CONN SOCKET 28-32AWG GOLD CRIMP Crimp contact 32-28 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.20 mmWire Range = 0.03-0.09² [32-28] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET, GOLD CONTACT, CRIMP, SOCKET, 32-28AWG, REEL CRIMPCNTACT32-28AWGAU TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD-4 REC.CONT.SCP.
2-167301-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP TIN Crimp contact 24-20 awg ICP tin Mod IV Headers & Wire Housings CONTACT 24-20AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL Crimpcontact24-20awgICPtinModIV Contact; female; 0.2÷0.6mm2; AMPMODU MOD IV; tinned; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD-4 REC.CONT.SCP
826467-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Box .100 inch AMPMODU Headers CONN HEADER 6POS VERT GOLD Headers & Wire Housings 1X06P HDR SHROUDED Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Box Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 6P MOD II SHROUDED HEADER, ST
86016-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings STANDARD PRESSURE 24-20 AWG gold .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Crimp connector,rcpt,snap-in,Mod IV,Ni Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG Contact;ModIV;24-20AWG;Crimp;250;3A;750V;-65degC;105degC TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP LP
167301-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN RCPT CONTACT 24-20AWG GOLD Crimp contact 24-20 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL AMPMODUMOD.4;Receptacle; Contact; female; 0.2÷0.6mm2; 20÷24AWG; AMPMODU MOD IV; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金触点 MOD-4 REC.CONT.SCP
169481-1
te connectivity / amp
Hand Tool For Modu IV Contacts Crimpers MOD IV CRIMP TOOL Hand Tools MOD IV CRIMP TOOL TOOL HAND CRIMP MOD-4 CONTACT AMP MODU crimp tool TOOL, HAND, CRIMP Crimper;Ratchet;32-20AWG;MODIVContacts Crimping tool Modu IV, 169481-1, TE Connectivity TE Connectivity Mini CERTI-LOK 系列 AMP MOD IV Contacts 压接工具 , 适用于0.03 → 0.56 mm² 线规格 HANDTOOL (MOD-4)

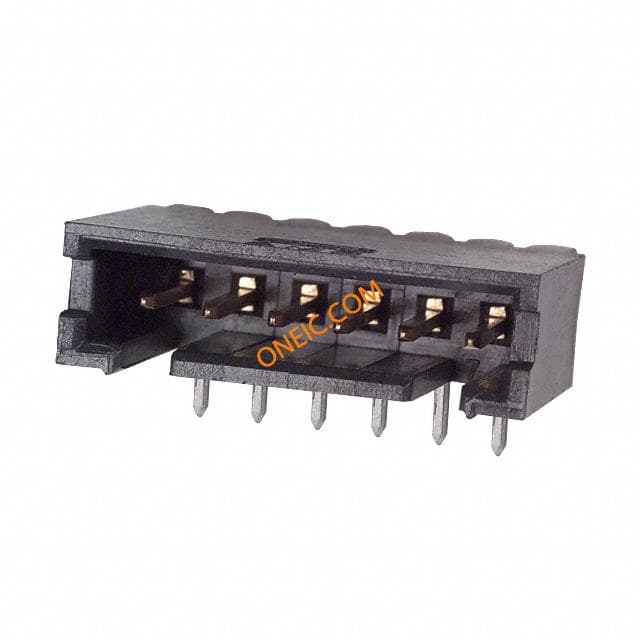

826468-6
