926475-3
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 CRIMP BLACK Headers & Wire Housings HSG RECPT 1X03P Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 3WAY 3WSKTSHELLS/R 03P MODU 4 HSG.S.R. |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | :250V |
| Voltage - Working | :250V | Current Rating (Max) | :3A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.001 | Packaging | Bulk |
| Cable Exit | With | Row Spacing | 2.54 mm |
| Termination | :Crimp | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp |
| Contact Finish | :Gold | Number of Rows | 1 |
| Package / Case | Receptacle | Contact Material | :Phosphor Bronze |
| Housing Material | Polyester (PBT) | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Documents & Media
Similar Parts
926478-1
te connectivity / amp
Connector Accessories Retention Plug Polycarbonate Black .100 AMPMODU Headers, Housings & Contacts CONN RETENTION PLUG W/STRAIN REL Headers & Wire Housings RETENTION FORK Connector Accessories Retention Plug Polycarbonate Black Product Highlights:AccessoryAccessory Type = Retention PlugWith Strain ReliefMod IVSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RETENTION FORK, BLACK RETENTION FORK
141603-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings MOD-4 REC.CONTACT .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26AWG 30GOLD CRIMP 141603-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD-4 REC.CONTACT
2-167301-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP TIN Crimp contact 24-20 awg ICP tin Mod IV Headers & Wire Housings CONTACT 24-20AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL Crimpcontact24-20awgICPtinModIV Contact; female; 0.2÷0.6mm2; AMPMODU MOD IV; tinned; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD-4 REC.CONT.SCP
826468-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole CONN HEADER 3POS R/A .100 GOLD Headers & Wire Housings 03P PIN HEADER Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 3P MOD II SHROUDED HEADER, RT ANG.
86016-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings STANDARD PRESSURE 24-20 AWG gold .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Crimp connector,rcpt,snap-in,Mod IV,Ni Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG Contact;ModIV;24-20AWG;Crimp;250;3A;750V;-65degC;105degC TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP LP
167301-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN RCPT CONTACT 24-20AWG GOLD Crimp contact 24-20 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL AMPMODUMOD.4;Receptacle; Contact; female; 0.2÷0.6mm2; 20÷24AWG; AMPMODU MOD IV; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金触点 MOD-4 REC.CONT.SCP

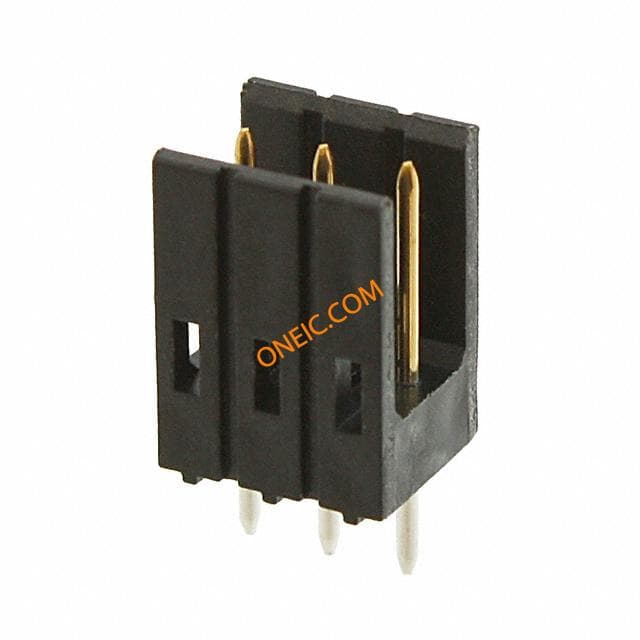

826467-3
