9-212437-1
| Manufacturer | |
| Description | Conn Shielded Circular DIN M 6 POS ST Cable Mount 6 Terminal 1 Port Circular DIN Connectors 6P CIRC DIN PLG ASSY Shielded Circular DIN Connectors CONN PLUG DIN 6POS SHIELD BLACK Shielded Circular DIN Connectors Product Highlights:ConnectorPlug KitShieldedWithout Mounting HolesNumber of Positions = 6Search Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, |
| Category |
Business
| Standard Pack | 1 | Product Category | Circular DIN Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250VAC | Voltage - Supply | Mini DIN |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Shield Type | Yes | Termination | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Tin | Fastening Type | Push-Pull |
| Shield Material | Brass | Housing Material | Nylon |
| 1st Contact Gender | Socket (Female) | Diameter - Outside | 3.81 â 5.08 [0.150 â 0.200], 5.08 â 6.35 [0.200 â 0.250], 6.35 â 7.62 |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | DIN (240 Degree) | Mounting Hole Diameter | Without |
| Shell Material, Finish | Nylon, Glass Filled | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Note | This plug is designed for use in applications where either a separate or post m | Type | Shielded Circular DIN |
| Gender | PL | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts

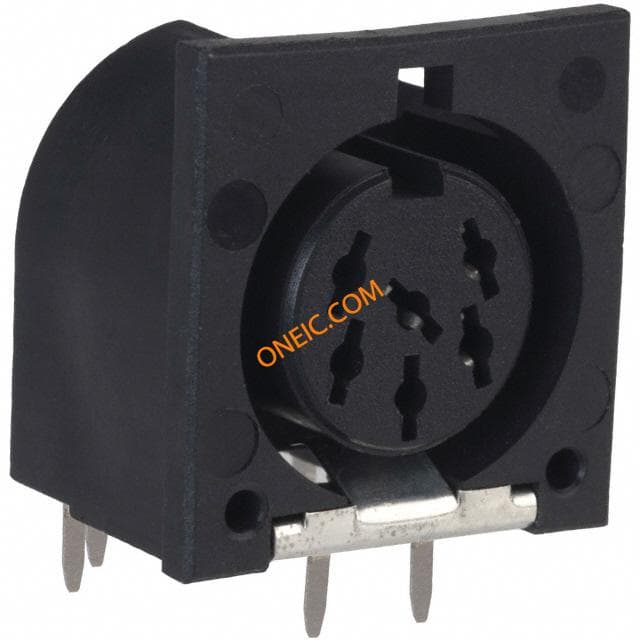

9-211509-0
te connectivity / amp
Conn Shielded Circular DIN F 6 POS Solder RA Thru-Hole 6 Terminal 1 Port Circular DIN Connectors 6 RCPT GRD CLIP LEAD Shielded Circular DIN Connectors CONN RECEPT RTANG 6 POS DIN Shielded Circular DIN Connectors Product Highlights:ConnectorReceptacleNot ShieldedWithout Grounding Fingers2 Panel Mount HolesSearch Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, 6 CIRC DIN RCPT,GRND CLIP LEAD
212800-1
te connectivity / amp
Connector Accessories Circular DIN Cord Guard Thermoplastic Polyether Ester Elastomer Circular DIN Connectors C-DIN ACC:CORD GUARD Shielded Circular DIN Connectors CONN CORD GUARD 3.81-6.35MM Connector Accessories Circular DIN Cord Guard Thermoplastic Polyether Ester Elastomer Product Highlights:Cord GuardCable Diameter Range = 3.81 - 6.35 mmSearch Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, CORD GUARD, DIN CONNECTOR

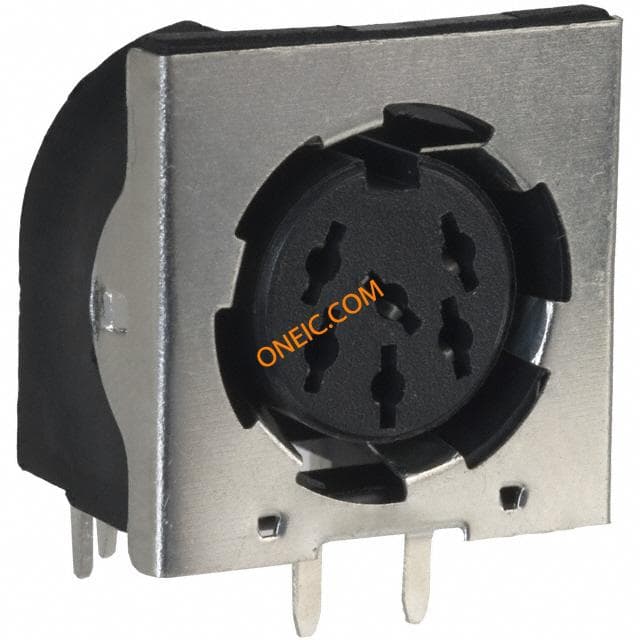

5212045-1
te connectivity / amp
Conn Shielded Circular DIN RCP 6 POS Solder RA Thru-Hole 6 Terminal 1 Port Shielded Circular DIN Connectors CONN RECEPT 6POS SHIELD RT/A TIN Circular DIN Connectors C-DIN 06P REC R/A T/H Conn Shielded Circular DIN RCP 6 POS Solder RA Thru-Hole 6 Terminal 1 Port Product Highlights:ConnectorReceptacleShieldedWithout Grounding FingersWithout Mounting HolesSearch Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, CONNECTOR, RECEPTACLE, 6 POS, PCB 6 Positions Shielded Circular DIN Connectors 6 CIRC DIN RCPT GRND SHLD

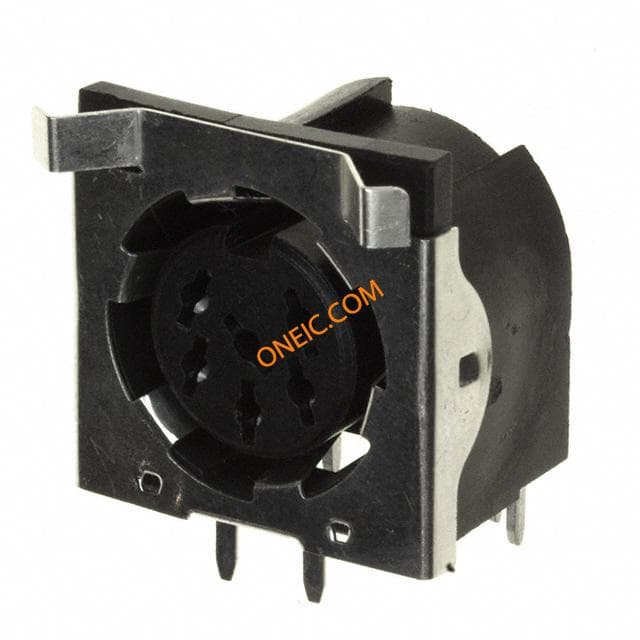

5786676-1
