87631-2
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL 2.54mm,housing,6W,Mod IV,DR,snap in Headers & Wire Housings POLARIZED HSG 6 DBL detent latching Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X3WAY Housing,Connector;Crimp-Snap;Dual;6;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 6 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 06 MODIV HSG DR MRKD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 V |
| Switch Function | Detent Latching | Voltage - Breakdown | 750V |
| Current Rating (Max) | 3 A | Insulation Resistance | :500Mohm |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Length | 7.62mm |
| Weight | 0.049 | Packaging | Bulk |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | :Crimp | Contact Type | Female Socket |
| Polarization | Yes | Housing Color | Black |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | :Gold |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Package / Case | :Black Thermoplastic UL94V-0 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 7.62 mm |
| Primary Material | InterconnectSystem | Connector - Cable | Yes |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 6 |
| Contact Termination | Crimp | Insulation Diameter | 0.069or0.046" |
| Number of Positions | 6 | 1st Connector Mounting Type | :PC Board |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Application Specifics | Board to Board | Matrix (Columns x Rows) | 0.100x0.100in. |
| For Use With/Related Products | Centerline Double-Row Connector | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
104354-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL Headers & Wire Housings 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
5-103166-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 6WAY 06 MODII HDR DRRA SHRD LF
5-103168-1
te connectivity / amp

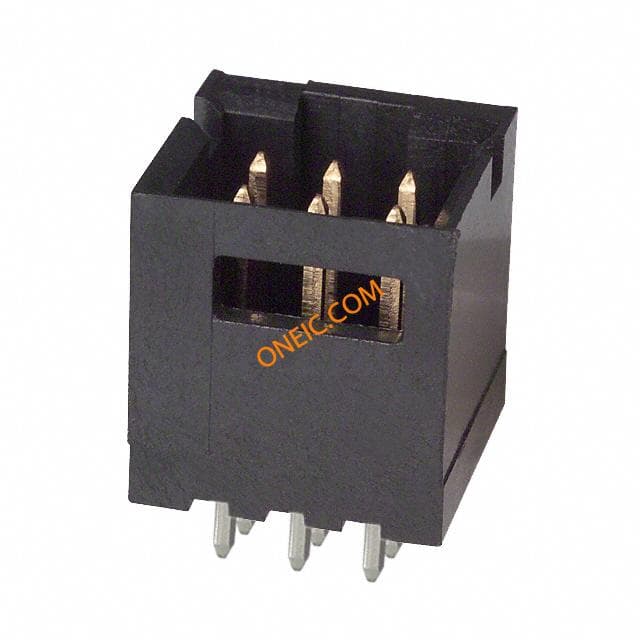

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6 POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 6WAY MODUTHRUDRHDRSHRD,06MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR DRST SHRD .100CL
146257-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL GOLD
3-87579-5
te connectivity / amp

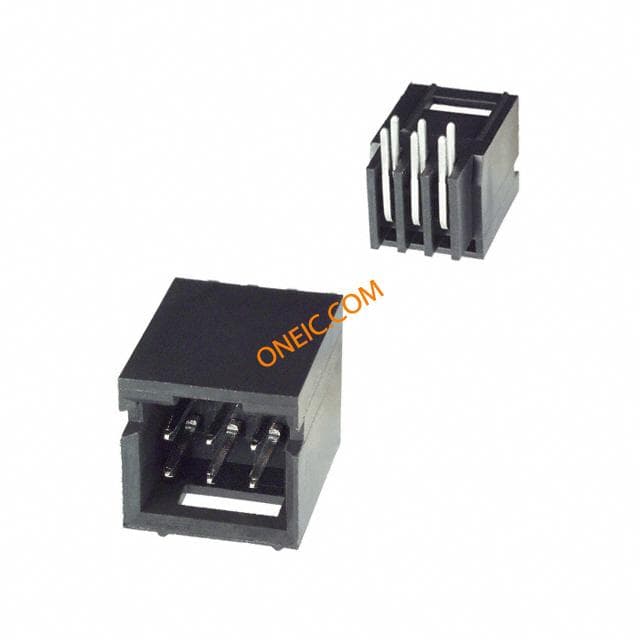

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRRA SHRD .100CL
3-88189-2
te connectivity / amp
Conn Housing PL 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PLUG 6POS HSG W/DETENT FFC & FPC Connectors 006 HOUSING FFC PIN DR 100CL Conn Housing PL 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 6Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 006 HOUSING FFC PIN DR 100CL
103166-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUR/ADRHDRSHRD,06MODIIHDRDRRASHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR DRRA SHRD .100CL
104353-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL
146254-4
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL .100
104352-3
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS DUAL TIN
103168-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6 POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,06MODIIHDRDRSTSHRD.100CL 06 MODII HDR DRST SHRD .100CL
5-146254-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL .100 Headers & Wire Housings 6P HEADER TIN double row Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRST B/A .100CL
5-102619-1
te connectivity / amp

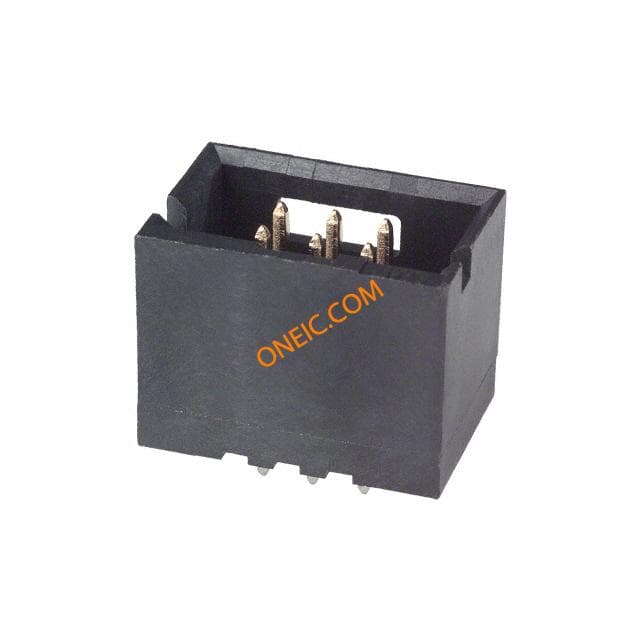

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6POS 15AU Headers & Wire Housings ACTION PIN VERT 6P dual .150 end Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRST SHRD .100CL
