826949-6
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole CONN HEADER BRKWY 6POS R/A TIN TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 1X06 POS R/A TIN HEADER, RIGHT ANGLE, 6WAY Headerhoriz6way2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 6路 2.54mm节距 (1排) 直角 引脚管座 , 焊接端接, 3A, 通孔 6P MOD2 STIFT LEI |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU Mod II Series | Current Rating (Max) | 3A |
Mechanical
| Pitch | 2.54 mm | Weight | 0.001 |
| Packaging | Bulk | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin Over Nickel |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Thermoplastic | Primary Material | Connector |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 6 | Length - Post (Mating) | 5.8 mm |
| Contact Length - Mating | 0.228" (5.80mm) | Termination Post Length | 3.2 mm |
| Exterior Housing Material | :Green, glass filled polyester | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU | Manufacturer | AMPMODU |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
280360
TE Connectivity AMP Connectors
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 6POS CRIMP 6 way 1 row MODU crimp socket shell Headers & Wire Housings 6 POS RECPT Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 6WAY 6way1rowMODUcrimpsocketshell Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable Crimp housing 1 x 6P, 280360, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 6 POS

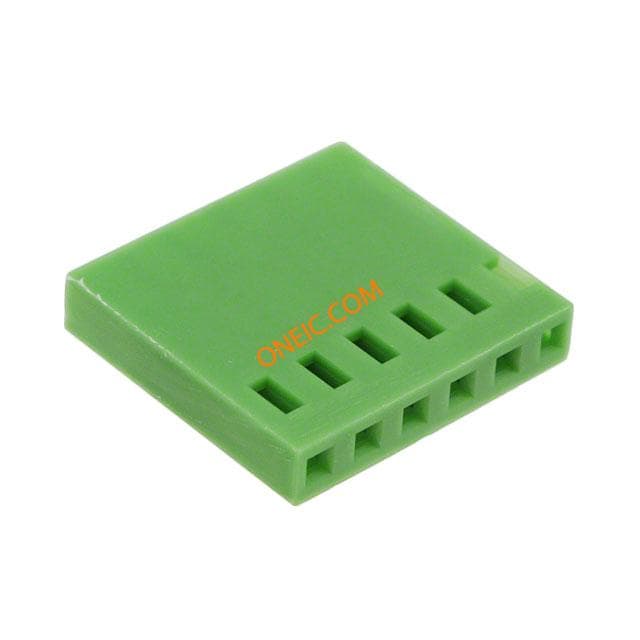

925366-6
