826886-4
| Manufacturer | |
| Description | Conn Housing RCP 3 POS Crimp ST Econoseal Connectors, Series E, EH and EHM 3 way Econoseal E receptacle housing Conn Housing RCP 3 POS Crimp ST Product Highlights:HousingSocketNumber of Positions = 3Product Series = EWith Mating Connector LockSearch Keywords:extreme, environmental conditions, Moisture, dust, corrosive gases, liquids, sealed housings, wiring, sensors, motor hoods, connections, electrical control systems, IP 64, DIN 40050, tree clip, tree, christmas tree, fixation clip SOCKET, ECONSEAL, E 2.3-3MM, 3WAY 3wayEconosealEreceptaclehousing TE Connectivity Econoseal E 系列 3 路 直 母 PCB 壳体 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Mechanical
| Depth | 30.5mm | Width | 19mm |
| Length | 19mm | Weight | 0.004 |
| Mounting Type | Straight | Connector Type | :Circular Industrial |
| Package / Case | :PA 6.6 GF13 | Insertion Angle | :- |
| Housing Material | Nylon | 1st Contact Gender | :Socket |
| Number of Contacts | 3 | Number of Positions | :3 |
| Shell Size - Insert | :- | 1st Connector Mounting Type | :- |
| Diameter - Outside, Non-Expanded | :3mm | ||
Product Info
| Type | Housing | Gender | RCP |
| Series | 826886 | CAD Drawing | 3D CAD Model |
| For Use With/Related Products | Econoseal Connector | ||
Environmental
| NEMA Frame Size | :IP64 | ||
Documents & Media
Similar Parts
926983-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CI 2- Housings and Contacts CI2 pin crimp contact,1-2.5 sq.mm 926983-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.60 mmContact Type = PinLoose PieceWire Range = 1.00-2.50² [17-13.5] mm [AWG] CRIMP PIN, ECONOSEAL, 1-2.5MM TE Connectivity CI 2 系列 公 压接接线端子, 压接, 镀锡触点

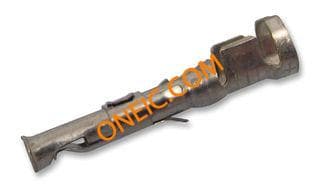

827397-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CI 2- Housings and Contacts CONN SKT CONT CI2 13-17AWG CRIMP CI2 socket crimp contact,1-2.5 sq.mm CRIMP SOCKET, E 1-2.5MM CI2socketcrimpcontact,1-2.5sq.mm TE Connectivity CI 2 系列 母 压接接线端子, 压接, 镀锡触点

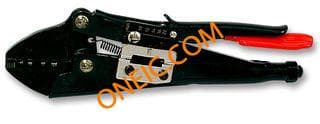

825582-2
