796867-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks 6 POS HDR VERTICAL Terminal Block Connectors TERM BLOCK HDR 6POS VERT 5.08MM Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 6 POS TERMI-BLOK HDR VERTICAL |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Pitch | 5.08 mm |
| End Style | 不带 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Mounting Type | Vertical | Connector Type | 头 |
| Contact Finish | Tin | Flange Feature | 是 |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 100 | Header Orientation | Vertical |
| Number of Contacts | 6 | Number of Positions | 6 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Thread/Screw/Hole Size | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Flange | Number of Levels | 1 |
| Interconnect System | 带有 | Positions Per Level | 6 |
| Side-by-Side Stacking | 否 | ||
Documents & Media
Similar Parts

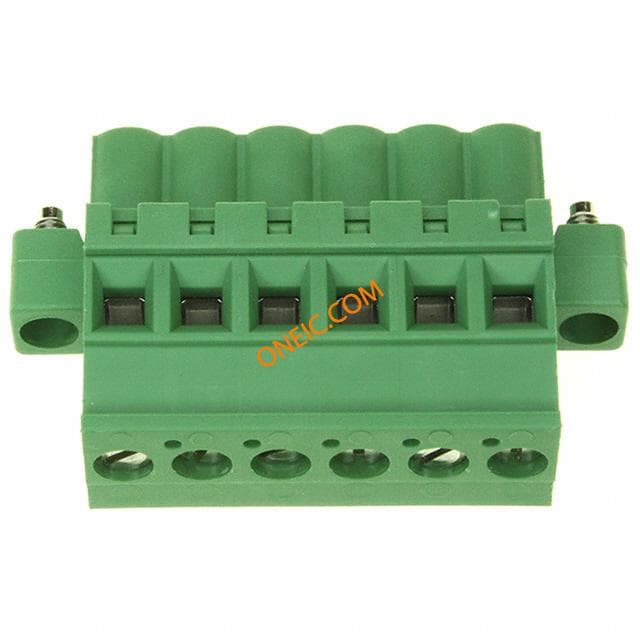

796861-6
te connectivity / amp
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM Pluggable Terminal Blocks 6 POS PLUG VERTICAL Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 6 POS TERMI-BLOK PLUG VERTICAL
796863-6
te connectivity / amp
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 15A/Contact Pluggable Terminal Blocks 6 POS TERMI-BLOK PLG VERTICAL Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM 6 POS TERMI-BLOK PLUG VERTICAL 6 POS TERMI-BLOK PLUG VERTICAL Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

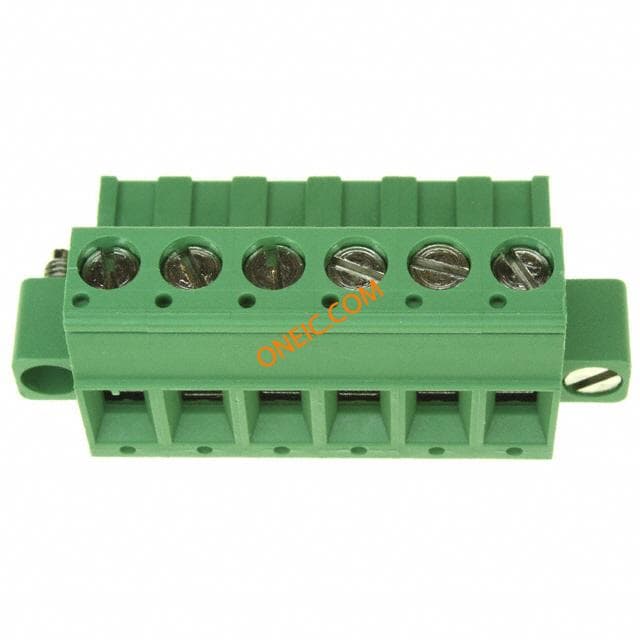

796859-6
