796866-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 5 POS HDR RT ANGLE Terminal Block Connectors TERM BLOCK HDR 5POS R/A 5.08MM 5 POS TERMI-BLOK HDR RT ANGLE 5 POS TERMI-BLOK HDR RT ANGLE Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
| Category |
Business
| Product | Pluggable Terminal Blocks | Standard Pack | 150 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Pitch | 5.08 mm |
| End Style | 不带 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Mounting Type | Right | Connector Type | 头 |
| Contact Finish | Tin | Flange Feature | 是 |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 150 | Header Orientation | 90°, Right Angle |
| Number of Contacts | 5 | Number of Positions | 5 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Thread/Screw/Hole Size | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Flange | Number of Levels | 1 |
| Interconnect System | 带有 | Positions Per Level | 5 |
| Side-by-Side Stacking | 否 | ||
Similar Parts
796863-5
te connectivity / amp
Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 5POS 5.08MM 5 POS TERMI-BLOK PLUG VERTICAL 5 POS TERMI-BLOK PLUG VERTICAL Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

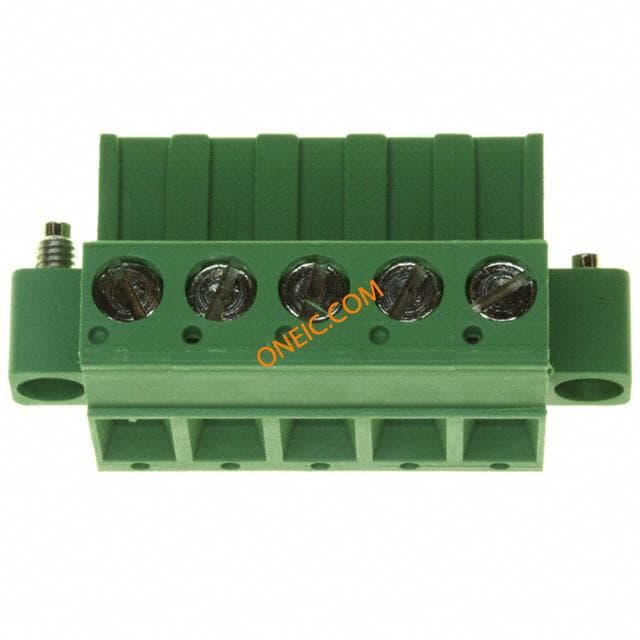

796859-5
te connectivity / amp
Conn Terminal Block F 5 POS 5.08mm Solder RA Thru-Hole 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 5POS STR 5.08MM Pluggable Terminal Blocks 5 POS PLUG RT ANGLE Conn Terminal Block F 5 POS 5.08mm Solder RA Thru-Hole 15A/Contact Product Highlights:ConnectorConnector Type = PlugShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 POS TERMI-BLOK PLUG RT ANGLE

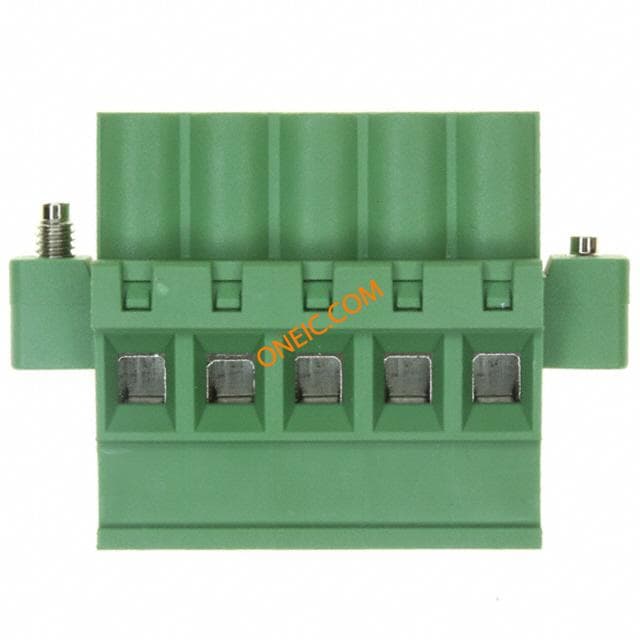

796861-5
