796866-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5.08MM Pluggable Terminal Blocks HDR 2 POS R/A 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2 POS TERMI-BLOK HDR RT ANGLE |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 300 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Pitch | 5.08 mm |
| End Style | 不带 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Mounting Type | Through Hole | Connector Type | 头 |
| Contact Finish | Tin | Flange Feature | 是 |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 300 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Thread/Screw/Hole Size | 不带 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Flange | Number of Levels | 1 |
| Interconnect System | 带有 | Positions Per Level | 2 |
| Side-by-Side Stacking | 否 | ||
Documents & Media
Similar Parts
796863-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw ST Panel Mount 15A/Contact Pluggable Terminal Blocks 2 POS TERMI-BLOK PLUG VERTICAL Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM 2 POS TERMI-BLOK PLUG VERTICAL 2 POS TERMI-BLOK PLUG VERTICAL Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1-1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRA Pluggable Terminal Blocks Crimp Style housing 5.08 Gray 2 posn TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount
1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRE Pluggable Terminal Blocks Crimp Style housing 5.08 Gre Eurostyle Terminal Blocks TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Product Highlights:ConnectorType of Connector = PlugShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUGGABLE, 2POS Crimp Style housing, 5.08, Green, 2 posn

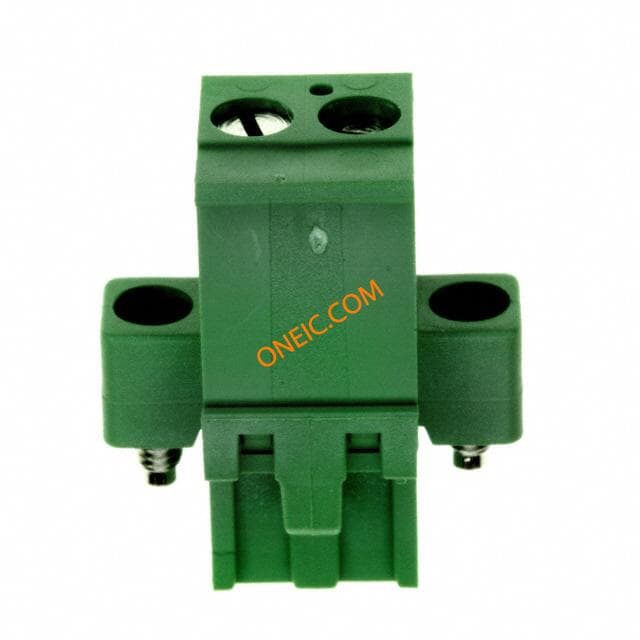

796861-2
