796638-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 7 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 7POS R/A 5.08MM Pluggable Terminal Blocks 5.08MM RA HDR 7P Terminal Block Connectors Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 7POS 5.08MM CE R/A HDR,TRM BLK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Standard Pack | 100 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Pitch | 5.08 mm |
| End Style | 带有 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Mounting Type | Through Hole | Connector Type | 头 |
| Contact Finish | Tin | Flange Feature | 是 |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 100 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 7 |
| Number of Positions | 7 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Thread/Screw/Hole Size | 不带 | Contact Finish Thickness | 6 – 7 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Levels | 1 | Interconnect System | 不带 |
| Positions Per Level | 7 | Side-by-Side Stacking | 否 |
Documents & Media
Similar Parts
282928-5
te connectivity / amp
Connector Accessories Label Terminal Block Connectors TERM BLOCK ADH LABEL 10POS 41-50
796634-7
te connectivity / amp

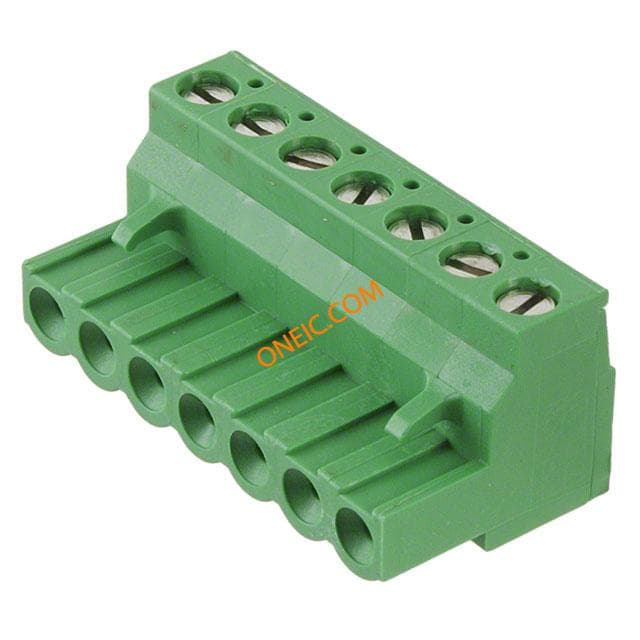

Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 7POS STR 5.08MM Non-Fused Terminal Block Cable Mount 7 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 7P Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugHousing Color = GreenNot StackedWithout Threaded FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 30-12AWG, 7WAY 7WRISINGCLAMPTERMINAL TE Connectivity 7 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 7 POS 5.08MM R/A PLUG,TRM BLK
