794617-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 2POS DL MATE-N-L 2 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 2P Conn Housing RCP 2 POS ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;2;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:2; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 2 路 直 母 连接器外壳 2POS,MICRO MNL,RCPT HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Depth | 14.04mm |
| Pitch | 3 mm | Width | 11.7mm |
| Height | 11.7 mm | Length | 4mm |
| Weight | 0.034 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | 20 AWG |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Pitch - Post | 3mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Package / Case | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | Package Quantity | 1 |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | 1st Connector Mounting Feature | 2x1 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Product Type | Housing | Adapter Series | Micro MATE-N-LOK |
| Number of Units | 1 | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

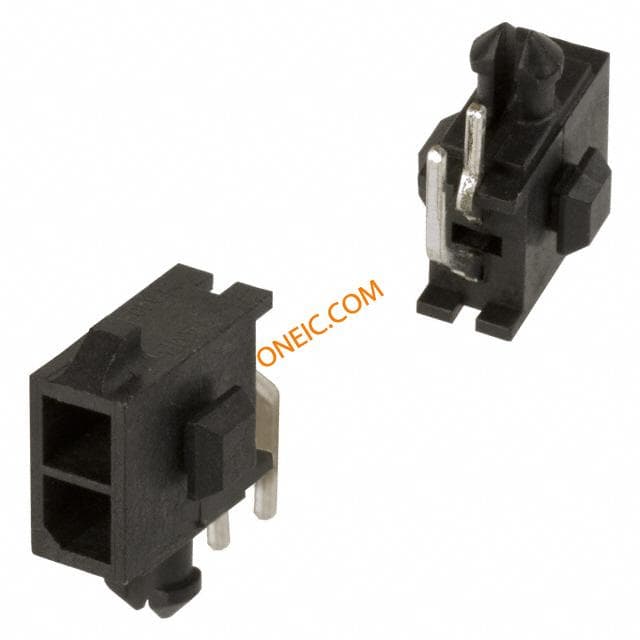

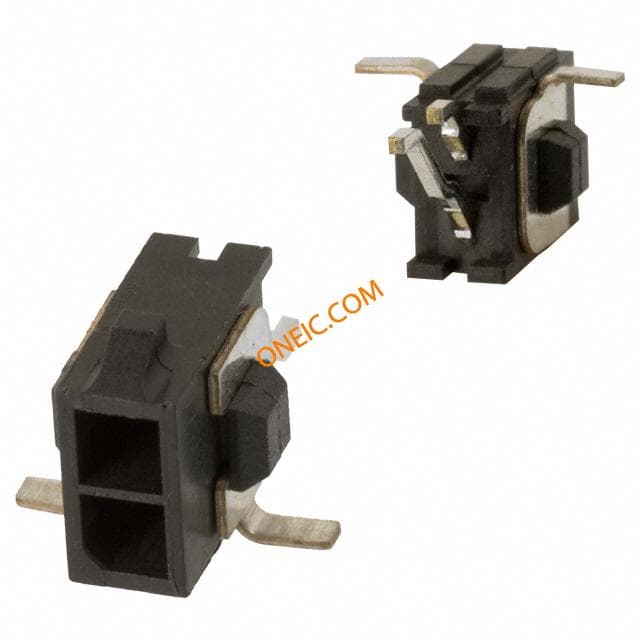

3-794627-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 2POS DUAL R/A TIN SMD Pin & Socket Connectors HDR ASSY 2P TIN R/A SMT 3-794627-2 02P MICRO MNL ASSY,R/A,SMT LF
794637-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL 15GOLD SMD Pin & Socket Connectors 2POS MICRO MNL ASSY 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
3-794632-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Power to the Board HDR VERT 2 POS 30 AU DUAL 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS DUAL GOLD 02P MICRO MNL ASSY,VRT,HDR,LF 02P MICRO MNL ASSY,VRT,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

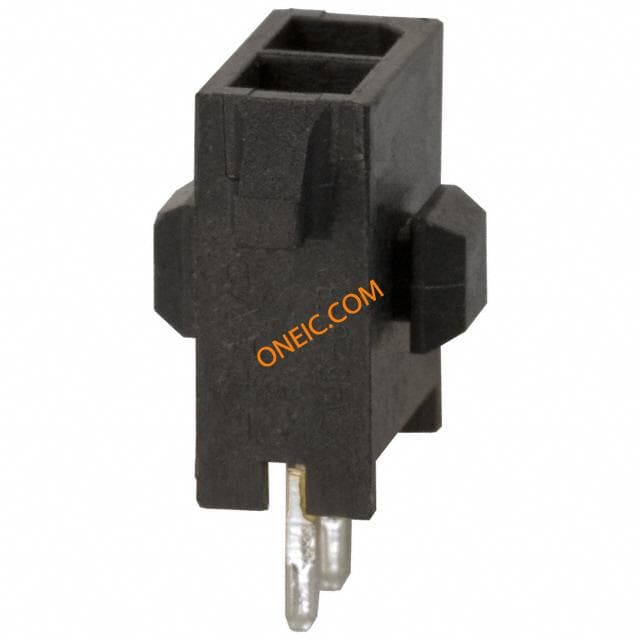

794630-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS DUAL TIN Power to the Board HDR ASSY 2 POS VERT DUAL TIN Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794681-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL VERT 15GOLD Pin & Socket Connectors 2POS MICRO MNL ASSY,VRT,THRU 2POS MICRO MNL ASSY,VRT,THRU 2POS MICRO MNL ASSY,VRT,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

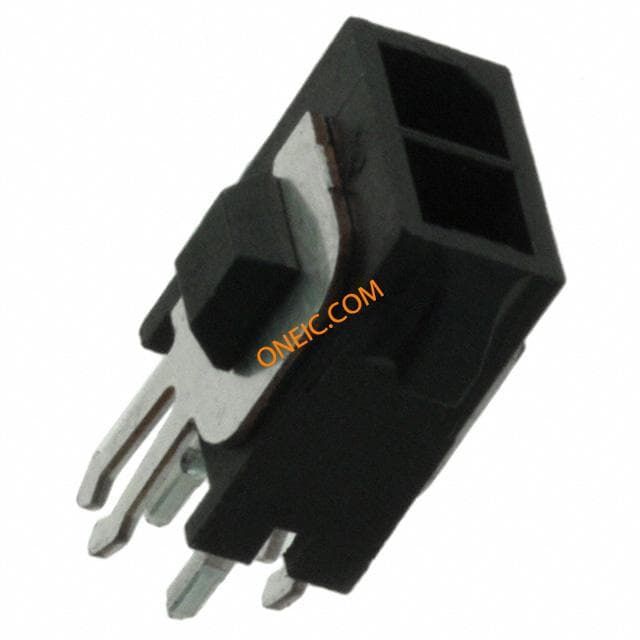

3-794682-2
te connectivity / amp
Conn Wire to Board HDR 2 POS Solder ST Thru-Hole 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS 2ROW VERT T/H Pin & Socket Connectors 2P HDR VERT 3mm T/H 30 AU Conn Power HDR 2 POS Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 02P MICRO MNL ASSY,VRT,THRU,LF
794635-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL 30GOLD SMD Pin & Socket Connectors 2POS MICRO MNL ASSY VRT SMT
794622-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL R/A 15AU SMD Pin & Socket Connectors 2POS MICRO MNL ASSY R/A SMT

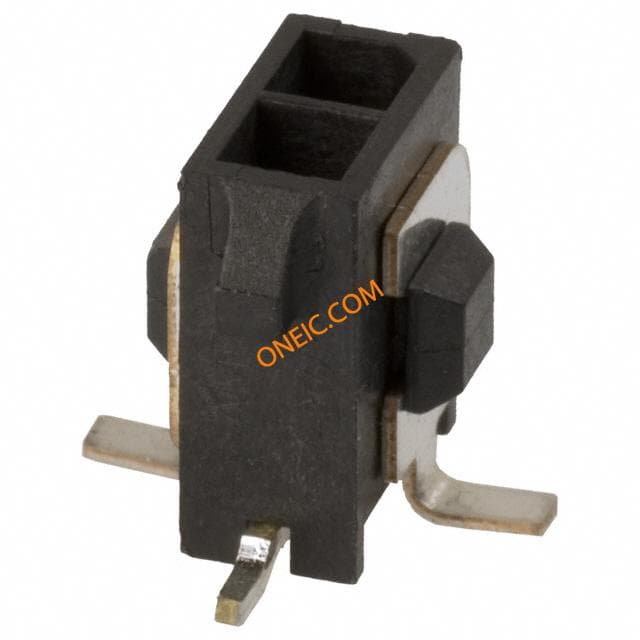

794636-2
