794616-6
| Manufacturer | |
| Description | Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS DL MATE-N-LOK Housing,plug,micro Mate-n-lok,2 row,6Way Pin & Socket Connectors PLUG DUAL F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, PLUG, 6 WAY, NYLON PLUG & SOCKET HOUSING, PLUG, NYLON SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 6 MATE-N-LOK Micro, 794616-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG DBL ROW HSG 6 POS |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Depth | 16.89mm |
| Pitch | 3 mm | Weight | 0.085 |
| Material | :Nylon | Packaging | Bulk |
| Wire Gauge | (20-24)/(26-30) AWG | Row Spacing | 0.118" (3.00mm) |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 2 | Package / Case | Plug |
| Contact Material | Brass | Cord Termination | :Free Hanging |
| Housing Material | Nylon | Length - Overall | 3.00 [0.118] |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Documents & Media
Similar Parts
794608-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 24-20 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 30 GOLD STRIP
794609-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794613-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE L/P

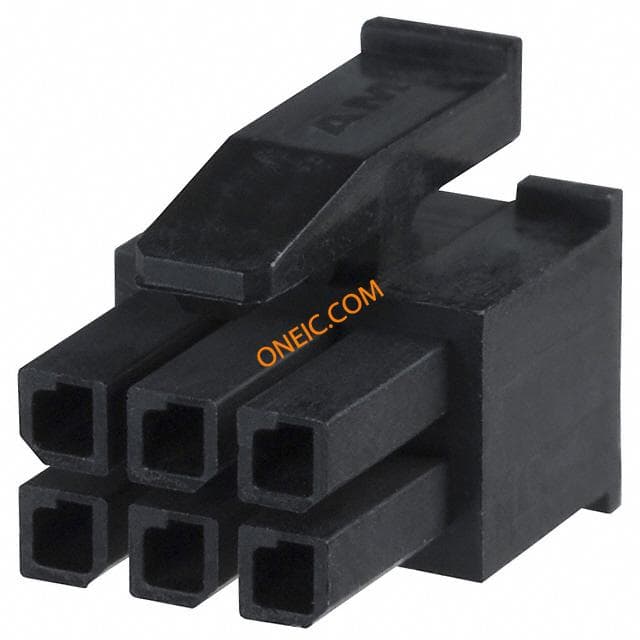

794617-6
