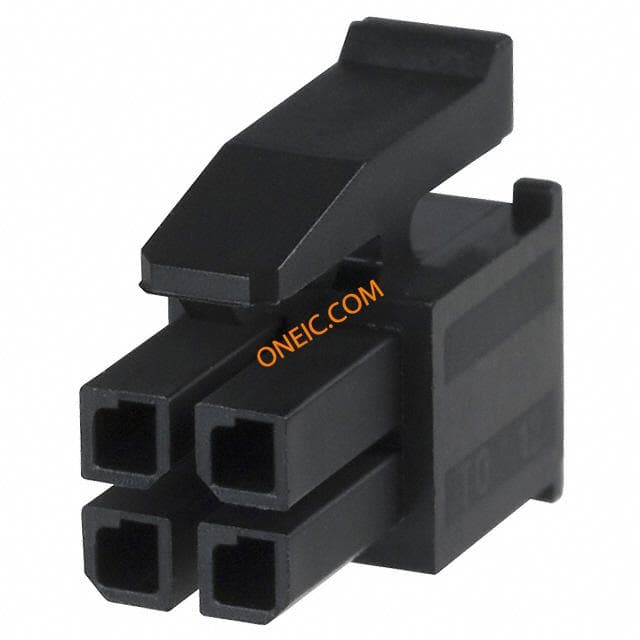

794615-4
| Manufacturer | |
| Description | Conn Housing PL 4 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 4POS DL M-N-L PNL 4 way 2 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG DUAL PNL MNT 4P Conn Housing PL 4 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 4Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG, PANEL, DUAL ROW, 4WAY Connector,SoftShell;Nylon;Plug;Black;4;Dual;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 4 路 直 公 压接连接器外壳 PANEL MT DBL ROW HSG 4 POS |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :20mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 16.89mm |
| Pitch | 3 mm | Weight | 0.001 |
| Material | :Nylon | Packaging | Bulk |
| Wire Gauge | (20-24)/(26-30) AWG | Row Spacing | 0.118" (3.00mm) |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Locking Ramp | Mounting Style | Panel |
| Number of Rows | 2 | Package / Case | Plug |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Black |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
