794241-1
| Manufacturer | |
| Description | Conn Housing PL 4 POS 4.14mm Crimp ST .163" Centerline, 600 V, 9.5 A max. CONN HOUS PLUG MATE-N-LOK 4CIRC Power to the Board 04P MINI PLUG UL94V2 Conn Housing PL 4 POS 4.14mm Crimp ST Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL2 PLUG HSG UL94V2 |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-2 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | Natural | Pitch | 4.14 mm |
| Sealed | Not Sealed | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Pre Tin |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Package / Case | Plug | Contact Material | Brass |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Compatible Shell Size | 印刷电路板板端连接器头 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
| Wire Gauge or Range - AWG | 22-18 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Housing |
| Number of Circuits | 4 | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-794226-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 26-22AWG Gold 1-794226-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP Crimp pin 9.5 A Male 26...22 AWG, 1-794226-0, TE Connectivity MINI UMNL2 PIN 26-22AWG LP LF
1-794230-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 20-16AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 PIN 20-16AWG LP LF
794228-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL2 PIN 22-18 AWG AU LP .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN

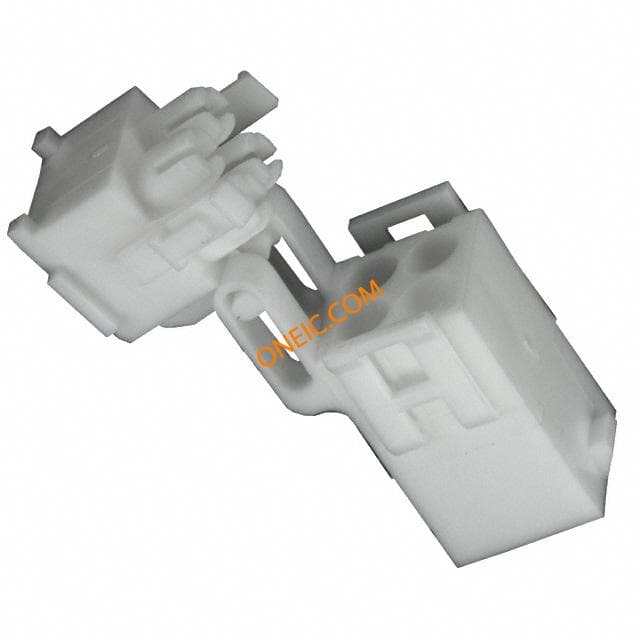

794189-1
