794214-1
| Manufacturer | |
| Description | Conn Housing PL 24 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 24POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 24 POS Conn Housing PL 24 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 24WAY Crimp housing Pitch4.14 mm Poles 2 x 12 MATE-N-LOK II Mini Universal, 794214-1, TE Connectivity 24P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL, VDE |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Test | :1500V | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Current - Max/Contact | :10.5A | Insulation Resistance | :100Mohm |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 | ||
Mechanical
| Color | White | Pitch | 4.14 mm |
| Weight | 0.006 | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :White | Number of Contacts | 24 |
| Contact Termination | Crimp | Number of Positions | 24 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| Product Type | Housing | Number of Circuits | 24 |
| For Use With/Related Products | :Mini-Universal MATE-N-LOK Connectors | ||
Environmental
| Operating Temperature | :65°C | ||
Documents & Media
Similar Parts
794215-1
te connectivity / amp
Conn Housing RCP 24 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 24POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 24 POS Conn Housing RCP 24 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = Receptacle (Cap)Mini-Universal MATE-N-LOK 24.14 mm CenterlineDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL2 CAP HSG UL94V0
794108-2
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Pin & Socket Connectors 24P R/A HDR ASSY MINI UMNL AU Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
1-794072-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER,PIN,24WAY,180DEG TE Connectivity MATE-N-LOK 系列 4.14mm节距 24路 直 RJ45-Rangierfeld, 焊接端接, 9.5A 24P MINI UMNL HDR W/DH SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
1-794108-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 24 POS R/A TIN DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 24WAY HEADER,PIN,24WAY,90DEG Mini-Universal MATE-N-LOK 24 Position Dual Row Through-Hole Right Angle Header TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 24路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 24P MINI UMNL R/A HDR ASSY SN
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794108-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 TIN Power to the Board SOCKET CONTACT 22-18 AWG Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 TIN Power to the Board .163 24CKT 24P MINI UMNL HDR W/DH SN
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794108-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Headers & Wire Housings HEADER 24 POS R/A GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL R/A HDR ASSY LF
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794079-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS VERT MINI-UMNL Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 24WAY 24P MINI UMNL HDR W/O DH SN LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A
1-794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 AU Headers & Wire Housings HEADER 24 POS GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL HDR W/DH AU LF
794079-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS PCB TIN WHITE Power to the Board 12x2 VERT HDR UL94V0 400 Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

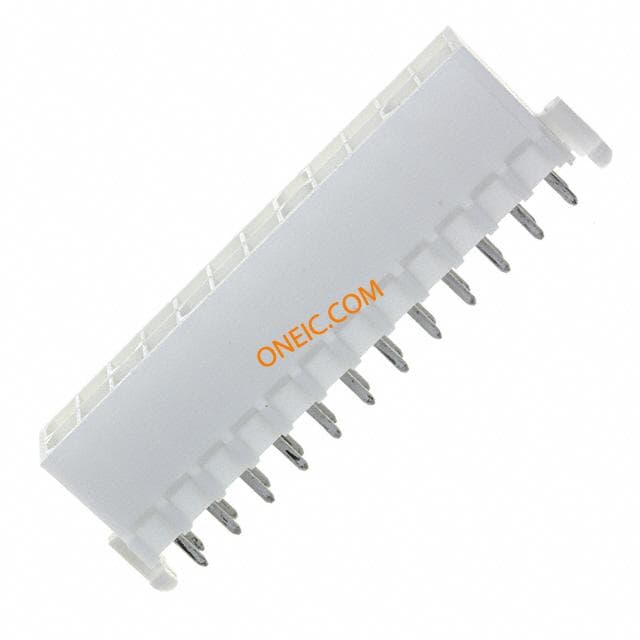

794072-2
