点击放大查看
794212-1
| Manufacturer | |
| Description | Conn Housing PL 22 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 22POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 22 POS Conn Housing PL 22 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 11 MATE-N-LOK II Mini Universal, 794212-1, TE Connectivity 22P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V | Number of Poles | 2 x 11 |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 | ||
Mechanical
| Color | White | Pitch | 4.14 mm |
| Sealed | Not Sealed | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Package / Case | Plug |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 22 |
| Contact Termination | Crimp | Number of Positions | 22 |
| Compatible Shell Size | 印刷电路板板端连接器头 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| Product Type | Housing | Connection Method | Wire-Wire |
| Number of Circuits | 22 | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55...+105 °C |
Documents & Media
Similar Parts

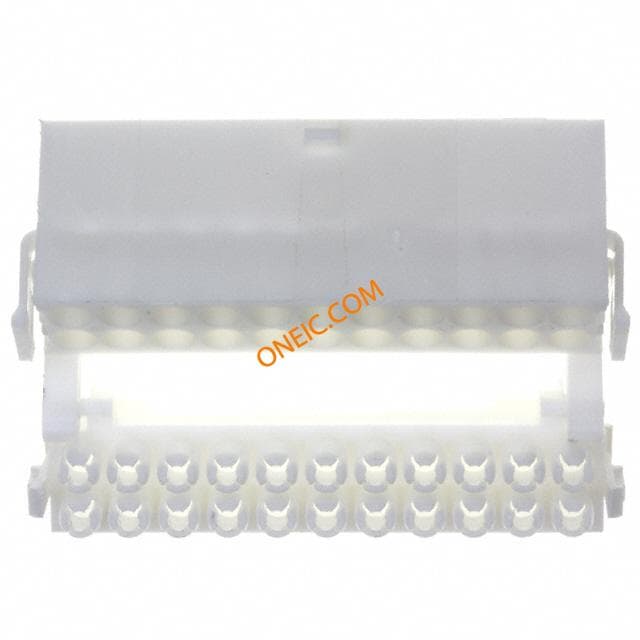

794213-1
