794204-1
| Manufacturer | |
| Description | Conn Housing PL 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 15POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,matrix,15Wy Pin & Socket Connectors 15P MINI UMNL2 PLUG Conn Housing PL 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = PlugMini-Universal MATE-N-LOK 24.14 mm CenterlineMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING,PLUG,MATRIX,15WAY Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794204-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 3 行 4.14mm 节距 15 路 直 公 压接连接器外壳 15P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Other Names | A25714 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 250 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V | Number of Poles | 3 x 5 |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75mm |
| Pitch | 4.14 mm | Width | 21.44mm |
| Height | 21.44 mm | Length | 27.1mm |
| Sealed | Not Sealed | Lock Type | Latch |
| Packaging | Bulk | Orientation | 直 |
| Row Spacing | 0.163" (4.14mm) | Contact Type | Male or Female |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Package / Case | Plug |
| Housing Material | Nylon | Length - Overall | 27.1 mm |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 15 | Contact Termination | Crimp |
| Number of Positions | 15 | Compatible Shell Size | 小型通用 MATE-N-LOK 2 帽护套/印刷电路板插针接头 |
| Center Contact Material | 4.14 [.163] | Contact Layout, Typical | Matrix |
| Contact Finish Thickness | 0.99 [0.039] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| Connection Method | Wire-Wire | Number of Circuits | 15 |
| Assembly Configuration | Without | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55...+105 °C |
Documents & Media
Similar Parts
794205-1
te connectivity / amp
Conn Housing RCP 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 15POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 15 POS Conn Housing RCP 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 154.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794205-1, TE Connectivity 15P MINI UMNL2 CAP HSG UL94V0
770859-1
te connectivity / amp
Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS PCB TIN WHITE Pin & Socket Connectors VERT PCB PIN HDR 15P 800 Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-770190-0
te connectivity / amp
Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 15 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 15 POS TIN MATRIX Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 154.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Pin header Pitch4.14 mm Poles 3 x 5 straight MATE-N-LOK Mini Universal, 1-770190-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 15路 4.14mm节距 直 PCB 针座 , 焊接端接, 9.5A, 通孔 15P MINI-UMNL ASSY V0 SNNI*
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
770190-2
te connectivity / amp
Conn Power HDR 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT .163 AU Pin & Socket Connectors HEADER ASSY 15 POS 200
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
1-770859-0
te connectivity / amp
Conn Power HDR 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT MINI-UMNL Headers & Wire Housings HEADER 15 POS TIN MATRIX 15P MINI UMNL HDR ASSY SN 15P MINI UMNL HDR ASSY SN Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794225-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

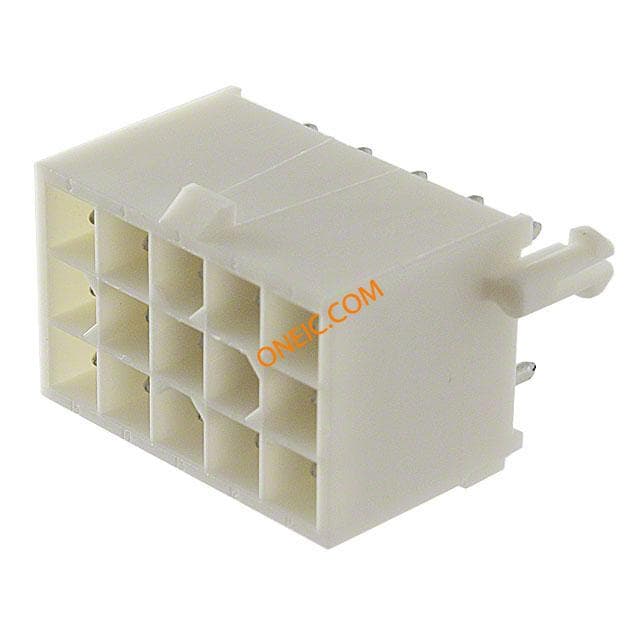

770190-1
