794200-1
| Manufacturer | |
| Description | Conn Housing PL 12 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,matrix,12Wy Pin & Socket Connectors CONN PLUG 12 POS Conn Housing PL 12 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Housing,plug,miniMate-n-lok,matrix,12Wy TE Connectivity Mini-Universal MATE-N-LOK II 系列 3 行 4.14mm 节距 12 路 直 公 压接连接器外壳 12P MINI UMNL2 PLUG HSG MATRIX |
| Category |
Business
| Other Names | A25709 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 300 |
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75mm |
| Pitch | 4.14 mm | Width | 21.44mm |
| Length | 22.89mm | Sealed | Not Sealed |
| Lock Type | Latch | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Package / Case | Plug |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
| Compatible Shell Size | 小型通用 MATE-N-LOK 2 帽护套/印刷电路板插针接头 | Center Contact Material | 4.14 [.163] |
| Contact Layout, Typical | Matrix | Contact Finish Thickness | 0.99 [0.039] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| Number of Circuits | 12 | Assembly Configuration | Without |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-794040-0
te connectivity / amp
Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 12POS VERT MINI-UMNL Headers & Wire Housings HEADER 12 POS TIN MATRIX 12P MINI UMNL HDR ASSY SN LF 12P MINI UMNL HDR ASSY SN LF Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794201-1
te connectivity / amp
Conn Housing RCP 12 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 12POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 12 POS 794201-1 Conn Housing RCP 12 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 4 MATE-N-LOK II Mini Universal, 794201-1, TE Connectivity 12P MINI UMNL2 CAP HSG MATRIX
794225-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
770186-1
te connectivity / amp
Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 12POS VERT .163 TIN Pin & Socket Connectors 12C PCB THRU MNT HDR Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12P MINI-UMNL ASSY V0 SNNI*
1-770186-0
te connectivity / amp
Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 12POS VERT .163 TIN Headers & Wire Housings HEADER 12 POS TIN MATRIX Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 12WAY Pin header, straight Pitch4.14 mm Poles 3 x 4 straight MATE-N-LOK Mini Universal, 1-770186-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 12路 直 PCB 针座, 焊接端接, 9.5A , 通孔 12P MINI-UMNL ASSY V0 SNNI*
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794040-1
te connectivity / amp
Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 12POS VERT MINI-UMNL Headers & Wire Housings HEADER 12 POS GOLD MATRIX Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12P MINI UMNL HDR ASSY AUBR LF

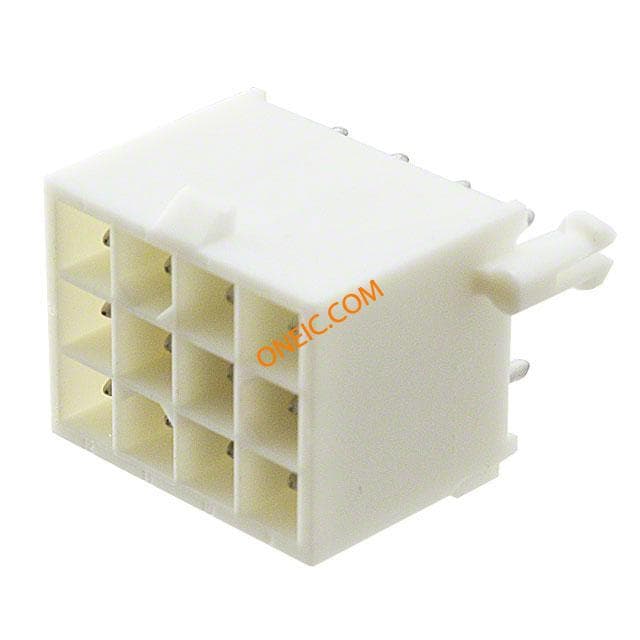

1-770186-1
