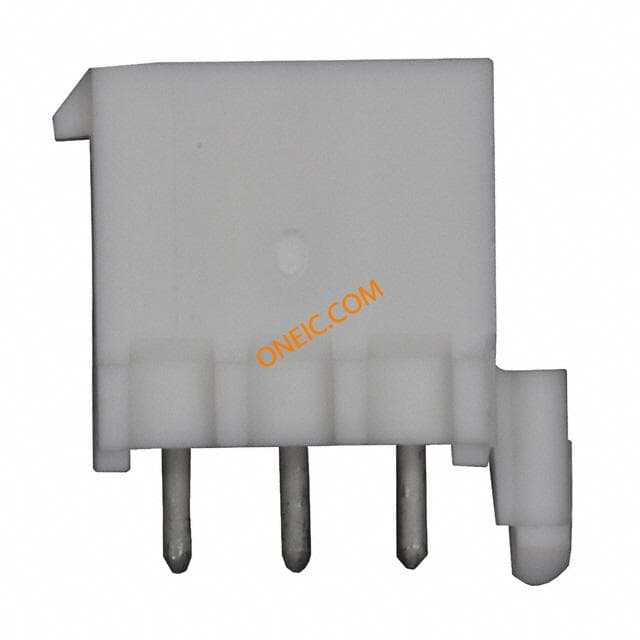

794186-1
| Manufacturer | |
| Description | Conn Housing PL 3 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,3 Way Pin & Socket Connectors 3P MINI PLUG HSG Conn Housing PL 3 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,3POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 3 MATE-N-LOK II Mini Universal, 794186-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 3 路 直 公 压接连接器外壳 03P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 700 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75mm |
| Pitch | 4.14 mm | Width | 10.29mm |
| Length | 21.44mm | Weight | 0.00001 |
| Lock Type | Latch | Packaging | Bulk |
| Row Spacing | 0.163" (4.14mm) | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Housing Material | Nylon |
| Package Quantity | One Piece Housing | Primary Material | InterconnectSystem |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Center Contact Material | 4.14 [.163] |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 0.99 [0.039] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Manufacturer | MATE-N-LOK | Product Type | Housing |
| Number of Circuits | 3 | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
