794065-2
| Manufacturer | |
| Description | Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 8POS STR DUAL .163 GOLD Power to the Board 08P MINI UMNL HDR W/ 200 08P MINI UMNL HDR W/DH AU |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 否 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Frequency - Center | 不带 | Current Rating (Max) | 9.5 A |
Mechanical
| Color | White | Pitch | 4.14 mm |
| Width | 9.83 | Length | 23.24 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 白色 | Row Spacing | 0.163" (4.14mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Pins | 8 |
| Number of Rows | 2 | Package / Case | Plug |
| Height (Inches) | 13.49 | Contact Material | Brass |
| Housing Material | Polyamide (PA) | Mounting Feature | 板锁 |
| Package Quantity | 200 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | Solder Lug | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Number of Positions | 8 |
| Compatible Shell Size | 插头护套 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | Power | Gender | PIN |
| Features | Board Lock | Product Type | Headers |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts

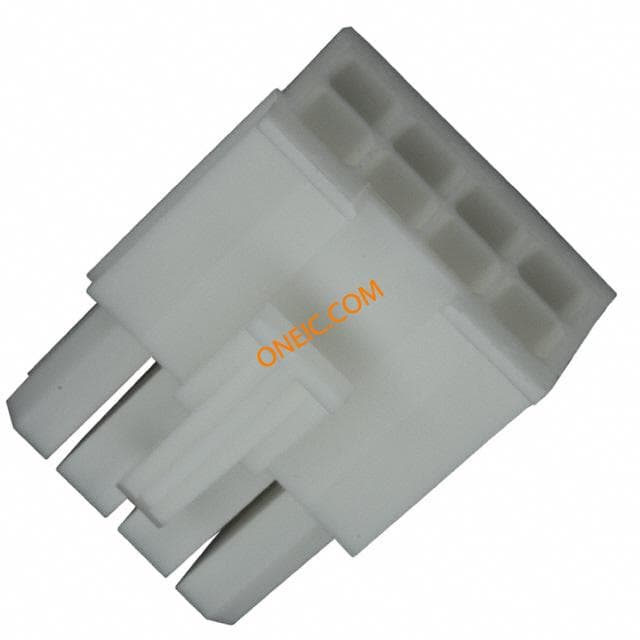

770579-1
