770972-1
| Manufacturer | |
| Description | Conn Power PIN 12 POS 4.14mm Solder RA Thru-Hole 12 Terminal 1 Port CONN HDR 12POS R/A DUAL .163 TIN Power to the Board 12P P/A HDR 800 Conn Power PIN 12 POS 4.14mm Solder RA Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12P MINI UMNL R/A HDR ASSY SN |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | ||
Mechanical
| Color | White | Pitch | 4.14 mm |
| Width | 12.7 | Length | 26.42 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 白色 | Row Spacing | 0.163" (4.14mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Pins | 12 |
| Number of Rows | 2 | Package / Case | Receptacle |
| Height (Inches) | 9.8 | Contact Material | Brass |
| Housing Material | Polyamide (PA) | Mounting Feature | 板锁 |
| Package Quantity | 200 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | Solder Lug | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Insulation Diameter | 3.2 |
| Number of Positions | 12 | Compatible Shell Size | 插头护套 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Finish Thickness | 150µin (3.81µm) | Static Discharge Shielding | 不带 |
Product Info
| Type | Power | Gender | PIN |
| Features | Board Lock | Product Type | Headers |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
770581-1
te connectivity / amp
Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors 12P MINI UMNL PLUG Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;12;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 6 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770581-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 12P MINI UMNL PLUG HSG

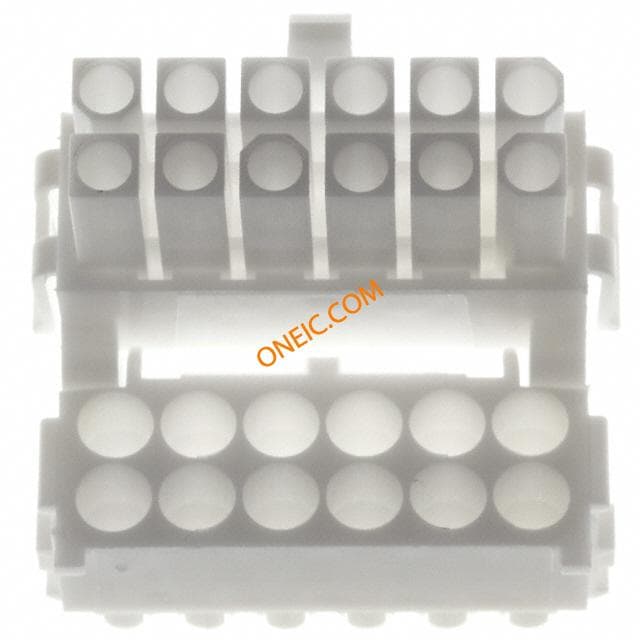

794198-1
