770587-1
| Manufacturer | |
| Description | Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 24POS MINI UNIV-MATE Pin & Socket Connectors FH PLUG HSG 24P Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,24POSITION,NYLON,WHITE Pin housing Pitch4.14 mm Poles 2 x 12 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770587-1, TE Connectivity 24P MINI UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 已认证 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Test | 1500 | Voltage Rating | 600 V |
| Number of Poles | 2 x 12 | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 600VDC/600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK |
Mechanical
| Color | White | Depth | 23.83 mm |
| Pitch | 4.14 mm | Height | 15.19 mm |
| Lock Type | Positive Lock | Packaging | Bulk |
| Body Color | 白色 | Wire Gauge | 16-30 AWG |
| Row Spacing | 0.163" (4.14mm) | Contact Form | Male or Female |
| Contact Type | Male or Female | Lead Spacing | 0.163" (4.14mm) |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Shell Material | 插头 |
| Connector Style | Double row | Housing Material | Nylon |
| Length - Overall | 51.38 mm | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Primary Material | InterconnectSystem |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Color - Connectors | white | Number of Contacts | 24 |
| Contact Termination | Crimp | Number of Positions | 24 |
| Compatible Shell Size | 小型通用 MATE-N-LOK 帽护套 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
| Number of Terminal Strips | 不带 | Wire Gauge or Range - AWG | 30-16 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | M | Series | Mate-N-Lok |
| Manufacturer | MATE-N-LOK | Product Type | Housing |
| Connection Method | Wire-Board | Module/Board Type | No |
| Number of Circuits | 24 | Output Configuration | Free Hanging (In-Line) |
| Assembly Configuration | 不带 | ||
Environmental
| Operating Range | 不密封 | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN

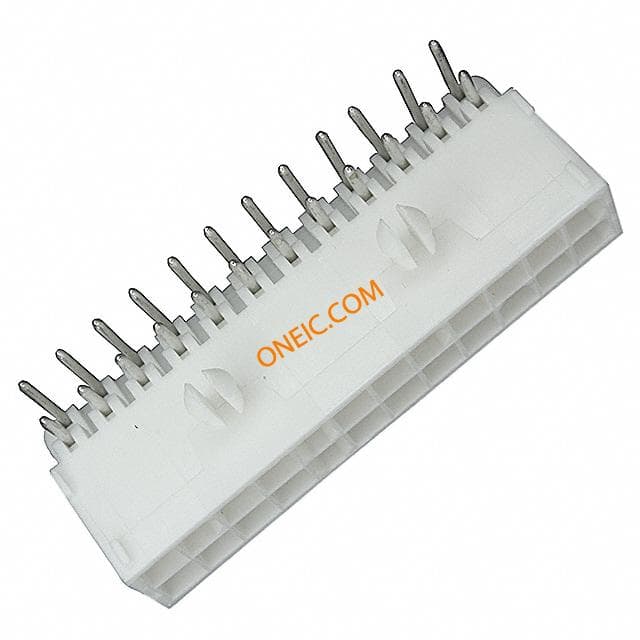

794108-2
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Pin & Socket Connectors 24P R/A HDR ASSY MINI UMNL AU Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794072-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER,PIN,24WAY,180DEG TE Connectivity MATE-N-LOK 系列 4.14mm节距 24路 直 RJ45-Rangierfeld, 焊接端接, 9.5A 24P MINI UMNL HDR W/DH SN
1-794108-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 24 POS R/A TIN DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 24WAY HEADER,PIN,24WAY,90DEG Mini-Universal MATE-N-LOK 24 Position Dual Row Through-Hole Right Angle Header TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 24路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 24P MINI UMNL R/A HDR ASSY SN
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU
770904-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,22-18awg Power to the Board MINI UMNL SOCKET 22- Reel of 4500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL CONTACT,SOCKET,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Socket Contact Crimp contact 11.2 A Female 18...22 AWG, 770904-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL SOK 22-18 AWG SN
770985-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Crimp contact, pin, 9.5A, 26-22AWG Standard Circular Connector PIN 26-22 AWG MINI UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, MALE, 26-22AWG Connector;Pin;Brass;Pre-Tin;600VAC;9.5A;26to22AWG;0.039in. Crimp pin 9.5 A Male 26...22 AWG, 770985-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22AWG SN LP
1-770901-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 26-22 BR/AU 28000 .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN26-22AWGAULF MINI UMNL PIN 26-22 AWG AU LF
794108-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 TIN Power to the Board SOCKET CONTACT 22-18 AWG Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 TIN Power to the Board .163 24CKT 24P MINI UMNL HDR W/DH SN
1-770988-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 18-22AWG MINI-UMNL Pin & Socket Connectors MINI SOK 22-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP MINI UMNL SOK 22-18AWG LP LF
794407-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 20-16AWG M-UNML TIN Contact female 20-16AWG Mini UMNL Pin & Socket Connectors SKT 20-16 AWG BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 20-16AWG, CRIMP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNML SCKT 20-16 AWG SN
1-794108-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Headers & Wire Housings HEADER 24 POS R/A GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL R/A HDR ASSY LF
1-794079-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS VERT MINI-UMNL Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 24WAY 24P MINI UMNL HDR W/O DH SN LF
1-794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 AU Headers & Wire Housings HEADER 24 POS GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL HDR W/DH AU LF
794079-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS PCB TIN WHITE Power to the Board 12x2 VERT HDR UL94V0 400 Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

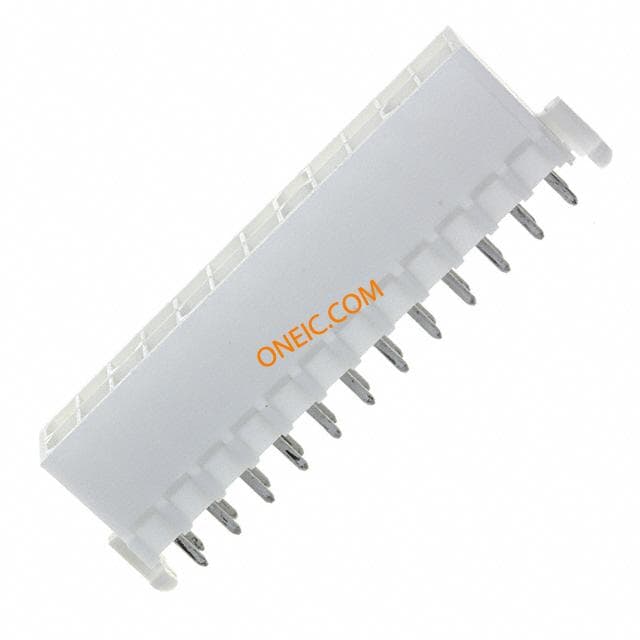

794072-2
