770586-1
| Manufacturer | |
| Description | Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Pin & Socket Connectors 22P MINI UMNL PLUG H .163" Centerline, 600 V, 9.5 A max. CONN PLUG 22POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,22Way Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR PLUG & SOCKET MINI-UMNLPLGHSG,22PMINIUMNLPLUGHSG Pin housing Pitch4.14 mm Poles 2 x 11 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770586-1, TE Connectivity 22P MINI UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Voltage - Supply (Min) | 600VDC/600VAC |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK | ||
Mechanical
| Color | White | Depth | 23.83mm |
| Pitch | 4.14 mm | Width | 15.19mm |
| Height | 15.19 mm | Length | 47.24mm |
| Weight | 0.005 | Lock Type | Positive Lock |
| Packaging | Bulk | Wire Gauge | 16-30 AWG |
| Row Spacing | 0.163" (4.14mm) | Contact Type | Male or Female |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Contact Material | :Brass | Housing Material | Polyamide (PA) |
| Length - Overall | 47.24 mm | Package Quantity | One Piece Housing |
| Primary Material | InterconnectSystem | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :White |
| Number of Contacts | 22 | Contact Termination | Crimp |
| Number of Positions | 22 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
| Wire Gauge or Range - AWG | 30-16 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | M | Series | Mate-N-Lok |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Receptacle Housings | Module/Board Type | No |
| Number of Circuits | 22 | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
794078-1
te connectivity / amp
Conn Power PIN 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 22POS DL VERT TIN Power to the Board 22P MINI UMNL HDR W/ 400 .163" Centerline, 600 V, 9.5 A max. Product Highlights:ConnectorHeaderConnector Style = PlugContact Type = PinThrough Hole Contact Termination TypeSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794071-0
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 TIN Headers & Wire Housings HEADER 22 POS TIN DUAL ROW Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 22P MINI UMNL HDR W/DH SN LF
1-794107-0
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS R/A DUAL .163 TIN Headers & Wire Housings HEADER 22 POS R/A TIN DUAL ROW Conn Power HDR 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mini-Universal MATE-N-LOK 22 Position Dual Row Through-Hole Right Angle Header 22P MINI UMNL R/A HDR ASSY LF
1-794071-1
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 AU Headers & Wire Housings HEADER 22 POS GOLD DUAL ROW Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 22 Position Dual Row 4.14 mm Through Hole Vertical Plug Header 22P MINI UMNL HDR W/DH AU LF
794107-2
te connectivity / amp
Conn Power PIN 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 22POS R/A M-UMNL AU Pin & Socket Connectors 22P MINI UMNL R/A HDR ASSY AU 22P MINI UMNL R/A HDR ASSY AU 22P MINI UMNL R/A HDR ASSY AU Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

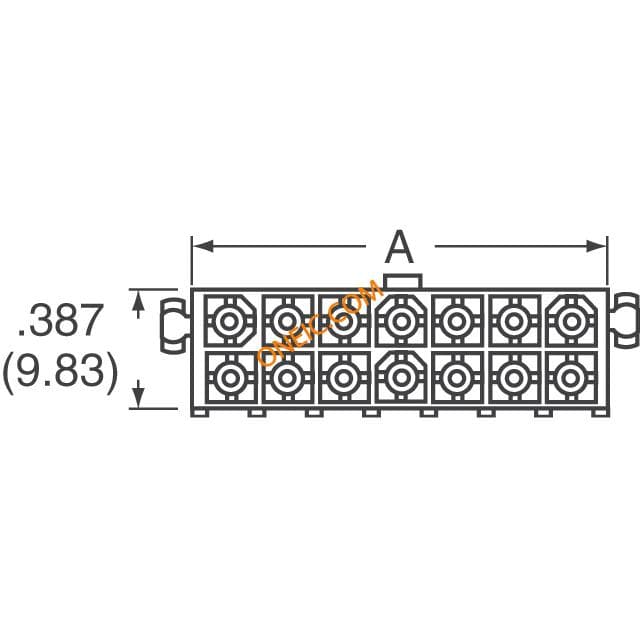

794071-1
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 TIN Power to the Board 22P MINI UMNL HDR W/ 400 Mini-Universal MATE-N-LOK 22 Position Through-Hole Dual Row Straight Pin Header 22P MINI UMNL HDR W/DH SN
794071-2
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Pin & Socket Connectors 22P MINI UMNL HDR W/ DH AU .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 AU Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU

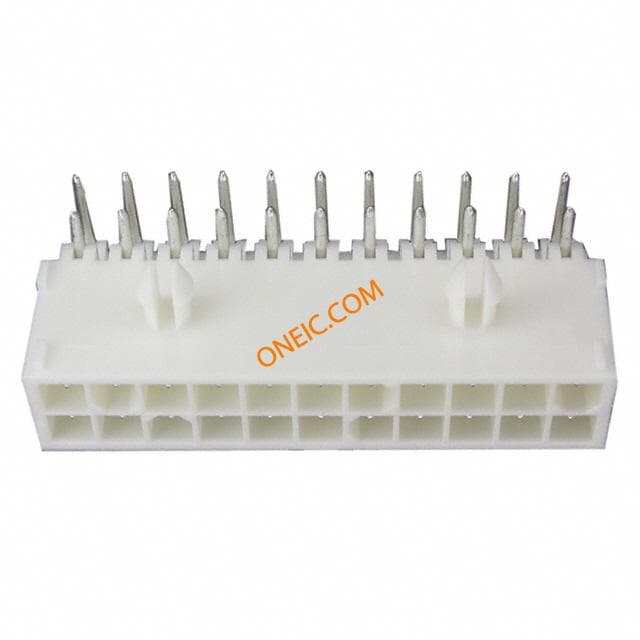

794107-1
