点击放大查看
770584-1
| Manufacturer | |
| Description | Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 18POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,18Way Pin & Socket Connectors 18P MINI UMNL PLUG H Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 184.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON MINI-UMNLPLGHSG,18PMINIUMNLPLUGHSG Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:18; 600V MATE-N-LOK 18 Position Positive Lock Free Hanging Plug Housing Pin housing Pitch4.14 mm Poles 2 x 9 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770584-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 18 路 直 公 电缆安装 压接连接器外壳 18P MINI UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Voltage - Supply (Min) | 600VDC/600VAC |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK | ||
Mechanical
| Color | White | Depth | 23.7mm |
| Pitch | 4.14 mm | Width | 15.19mm |
| Height | 15.19 mm | Length | 38.96mm |
| Weight | 0.005 | Lock Type | Positive Lock |
| Packaging | Bulk | Wire Gauge | 16-30 AWG |
| Row Spacing | 0.163" (4.14mm) | Contact Type | Male or Female |
| Pitch - Post | 4.14mm | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Locking Feature | lock |
| Housing Material | Nylon | Length - Overall | 38.96 mm |
| Package Quantity | One Piece Housing | Primary Material | InterconnectSystem |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 18 |
| Contact Termination | Crimp | Number of Positions | 18 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | Wire Gauge or Range - AWG | 30-16 |
| 1st Connector Mounting Type | :Free Hanging | 1st Connector Mounting Feature | 2x9 |
Product Info
| Spg | 6 | Note | Contacts Not Provided |
| Type | Housing | Gender | M |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Manufacturer | MATE-N-LOK | Product Type | Housing |
| Adapter Series | Mini Universal MATE-N-LOK | Number of Units | 1 |
| Module/Board Type | No | Number of Circuits | 18 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
794076-2
te connectivity / amp
Conn Power PIN 18 POS 4.14mm Solder ST Thru-Hole 18 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 18POS DL VERT 30GOLD Pin & Socket Connectors 18P MINI UMNL HDR W/O DH AU .163" Centerline, 600 V, 9.5 A max. Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 184.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 18P MINI UMNL HDR W/O DH AU
1-770987-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Contact,crimp,pin,mini Matenlok,22-18awg Pin & Socket Connectors PIN CONTACT 22-18AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 22-18AWG MINI-UNIVM-N-LLP,MINIUMNLPIN22-18AWGAULP MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact Crimp pin 9.5 A Male 22...18 AWG, 1-770987-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU LP
794069-2
te connectivity / amp
Conn Power PIN 18 POS 4.14mm Solder ST Thru-Hole 18 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 18POS STR DUAL .163 AU Power to the Board 18P HDR W/DH AU 200 Conn Power PIN 18 POS 4.14mm Solder ST Thru-Hole 18 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 18P MINI UMNL HDR W/DH AU
1-770902-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Mate-n-lok,contact,skt,0.12-0.40mm² Pin & Socket Connectors SKT 26-22 BR/AU 28000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 26-22AWG, CRIMP MINIUMNLSOK26-22AWGAU MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL SOK 26-22 AWG AU
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU
770904-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,22-18awg Power to the Board MINI UMNL SOCKET 22- Reel of 4500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL CONTACT,SOCKET,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Socket Contact Crimp contact 11.2 A Female 18...22 AWG, 770904-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL SOK 22-18 AWG SN
770985-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Crimp contact, pin, 9.5A, 26-22AWG Standard Circular Connector PIN 26-22 AWG MINI UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, MALE, 26-22AWG Connector;Pin;Brass;Pre-Tin;600VAC;9.5A;26to22AWG;0.039in. Crimp pin 9.5 A Male 26...22 AWG, 770985-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22AWG SN LP
1-770901-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 26-22 BR/AU 28000 .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN26-22AWGAULF MINI UMNL PIN 26-22 AWG AU LF
1-794105-0
te connectivity / amp
Conn Power HDR 18 POS 4.14mm Solder RA Thru-Hole 18 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 18PS R/A DL .163 TIN Headers & Wire Housings HEADER 18 POS R/A TIN DUAL ROW Conn Power HDR 18 POS 4.14mm Solder RA Thru-Hole 18 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 18P MINI UMNL R/A HDR ASSY SN
1-770988-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 18-22AWG MINI-UMNL Pin & Socket Connectors MINI SOK 22-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP MINI UMNL SOK 22-18AWG LP LF
1-794105-1
te connectivity / amp
Conn Power HDR 18 POS 4.14mm Solder RA Thru-Hole 18 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 18POS R/A DL M-UMNL Headers & Wire Housings HEADER 18 POS R/A GOLD DUAL ROW Conn Power HDR 18 POS 4.14mm Solder RA Thru-Hole 18 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 18P MINI UMNL R/A HDR ASSY LF

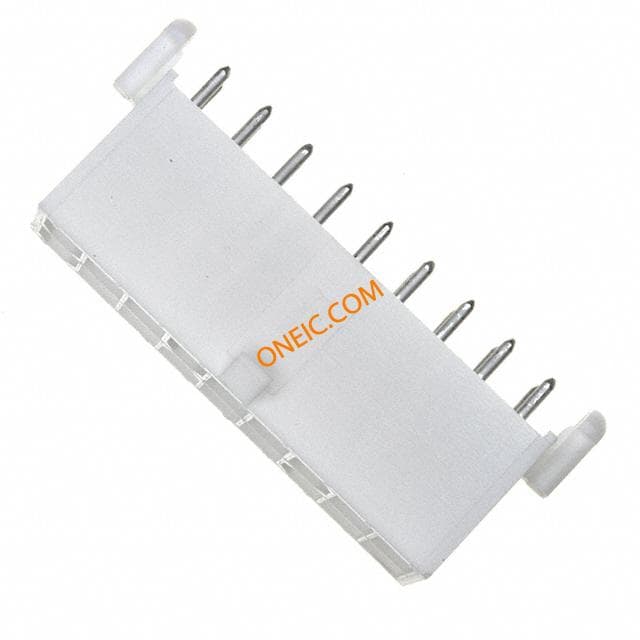

794069-1
