770583-1
| Manufacturer | |
| Description | Conn Housing M 16 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 16POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,16Way Pin & Socket Connectors 16P MINI UMNL PUG Conn Housing M 16 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, MATE-N-LOK, 16WAY Connector,SoftShell;16;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 8 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770583-1, TE Connectivity 16P MINI UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Connector - Voltage Input | Mini-Universal MATE-N-LOK |
Mechanical
| Color | White | Depth | 23.83mm |
| Pitch | 4.14 mm | Length | 34.82mm |
| Weight | 0.004 | Lock Type | Positive Lock |
| Packaging | Bulk | Wire Gauge | 16-30 AWG |
| Row Spacing | 0.163" (4.14mm) | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Package Quantity | One Piece Housing | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 16 |
| Contact Termination | Crimp | Number of Positions | 16 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | Wire Gauge or Range - AWG | 30-16 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | M | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| Module/Board Type | No | Number of Circuits | 16 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Documents & Media
Similar Parts
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
1-794075-0
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16POS VERT .163 TIN Headers & Wire Housings HEADER 16 POS TIN DUAL ROW Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/O DH SN

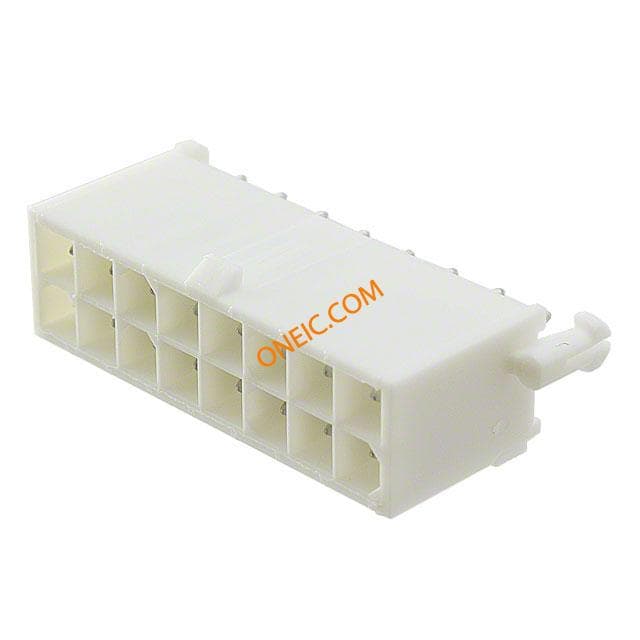

794068-1
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS STR DUAL .163 TIN Power to the Board 16POS VERT MALE CONX 800 Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/DH SN

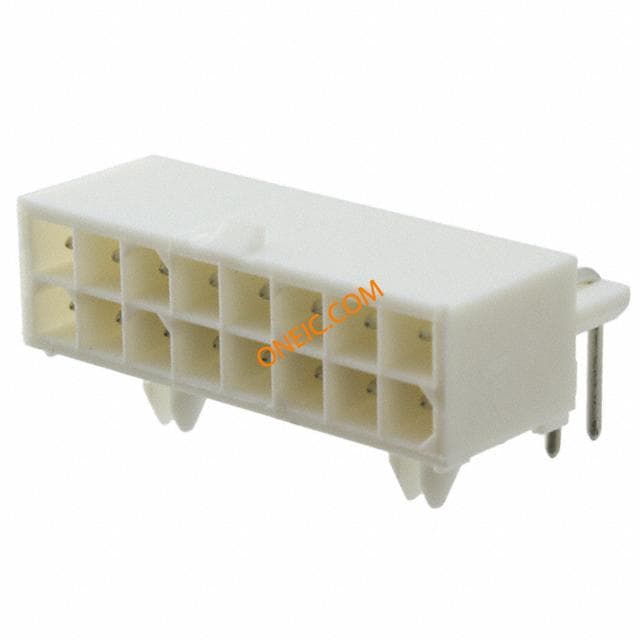

770974-1
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 TIN Pin & Socket Connectors 16P R/A PCB HEADER 400 Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL R/A HDR ASSY SN
1-770974-1
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 AU TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS R/A GOLD DUAL ROW Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Header,pin,miniMatenlok,PCB,16Way,90deg Pin header Pitch4.14 mm Poles 2 x 8 90° MATE-N-LOK Mini Universal, 1-770974-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL R/A HDR ASSY LF
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU

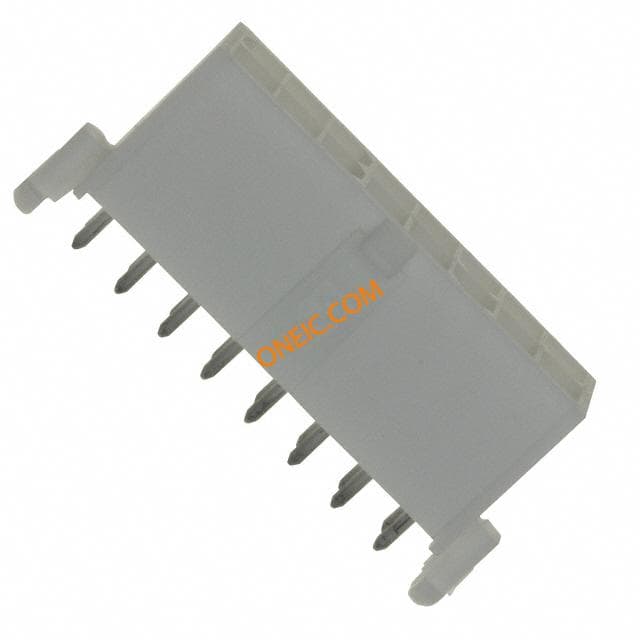

794068-2
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS STR DUAL .163 AU Pin & Socket Connectors 16P MINI UMNL HDR W/ DH AU Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOKNumber of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/DH AU
1-794068-0
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS TIN DUAL ROW Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,16PMINIUMNLHDRW/DHSN Pin header Pitch4.14 mm Poles 2 x 8 straight MATE-N-LOK Mini Universal, 1-794068-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL HDR W/DH SN
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU

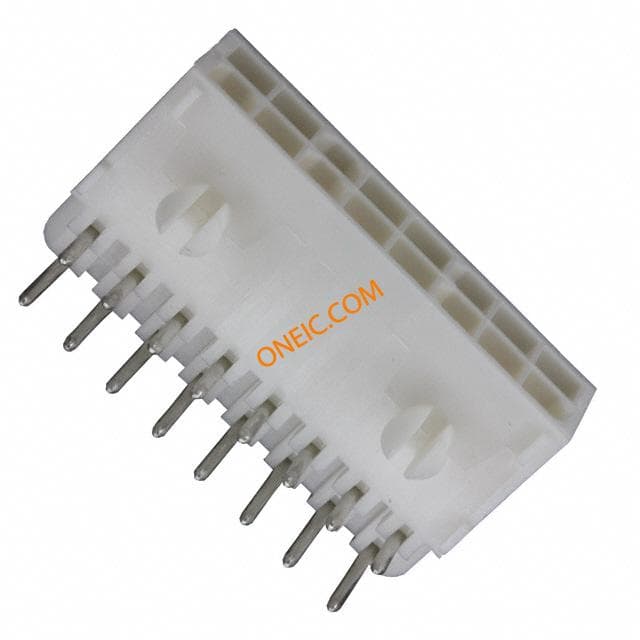

770974-2
