770355-1
| Manufacturer | |
| Description | Conn Housing M 6 POS 3.68mm ST Individual Pin & Socket Connectors 6 CIR. MATRIX PLUG .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 6POS .062 .062 Pin and Socket housing Plug 6P Conn Housing M 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Plug,FreeHanging,Matrix,6circuit 06P .062 COMM P&S PLUG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 7 A | Voltage - Supply (Min) | 250VDC/250VAC |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Depth | 19.05 mm |
| Pitch | 3.68 mm | Width | 11.3 mm [ .445 in ] |
| Height | 15.24 mm | Length | 19.05 mm [ .75 in ] |
| Sealed | Not Sealed | Lock Type | Detent Lock |
| Packaging | Bulk | Cable Type | 分离式导线 |
| Wire Gauge | 18-30 AWG | Row Spacing | 3.68 mm |
| Contact Type | Male or Female | Pitch - Post | 3.68 x 3.68 [.145 x .145] |
| Housing Color | Natural | Mounting Type | Straight |
| Cable Diameter | 394.71 – 1776.17 | Connector Type | Plug |
| Fastening Type | Detent Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Package / Case | Plug |
| Housing Material | Nylon | Length - Overall | 11.3 mm |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Termination Style | Plug | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Insulation Diameter | 1.27 – 2.79 mm [ .05 – .11 in ] | Number of Positions | 6 |
| Contact Layout, Typical | Matrix | Contact Finish Thickness | 1.57 [0.062] |
| Wire Gauge or Range - AWG | 30-18 | ||
Product Info
| Note | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | Type | Housing |
| Gender | M | Product Type | Plug Housings |
| Number of Circuits | 6 | Application Specifics | Power, Signal |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
770356-1
te connectivity / amp
Conn Housing F 6 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 6POS .062 .062 Pin + Socket housing Receptacle 6P Pin & Socket Connectors 6 CIR. MATRIX RECPT Conn Housing F 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET CONN, RCPT, 6POS, 3.68MM .062Soft-ShellPin&Socket,Receptacle,FreeHanging,Matrix,6circuit 06P .062 COMM P&S RECPT
770273-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors 0.062 COMM P&S .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062" Commercial Pin & Socket Connector Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,
770354-1
te connectivity / amp

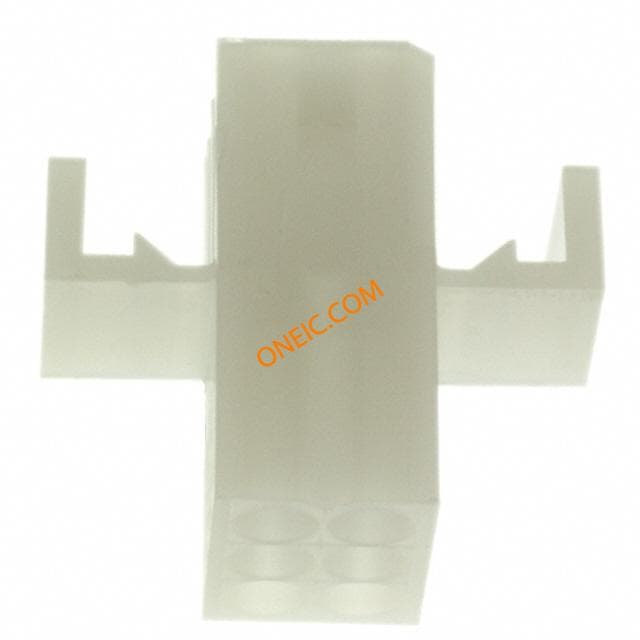

Conn Housing F 6 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 6POS .062 Pin & Socket Connectors 6C MATRIX RCPT PNLMT Conn Housing F 6 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 6Mount = Panel MountOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 06P .062 COMM P&S RECPT
