770333-1
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN RECEPT W/DETENT 3POS .062 .062 Pin + Socket housing Receptacle 3P Pin & Socket Connectors 3 CIR. IN-LINE RECPT Conn Housing RCP 3 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 3Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,Shell;250VAC;7A(Max.);3;Receptacle;Nylon;Natural;0.062in. 03P .062 COMM P&S RECPT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85366910 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Number of Outputs | 3 | Current Rating (Max) | 7 A |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Pitch | 3.68 mm |
| Length | 0.785in | Weight | 0.00091 |
| Lock Type | Detent Lock | Packaging | Bulk |
| Wire Gauge | 18-30 AWG | Contact Type | Male or Female |
| Core Diameter | 0.062in. | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 1 | Housing Material | Nylon |
| Length - Overall | 0.785" | Package Quantity | One Piece Housing |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.145" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Center Contact Material | 3.68 [.145] |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 1.57 [0.062] |
| Wire Gauge or Range - AWG | 30-18 | 1st Connector Mounting Type | :Free Hanging |
Product Info
| Note | See AMP Guide 65422 for cross references to Industry Standard .062/.093 product | Type | Housing |
| Gender | RCP | Series | Soft Shell |
| Features | FreeHanging | Manufacturer | SoftShell |
| Product Type | Housing | Number of Circuits | 3 |
| Matrix (Columns x Rows) | 0.145in. | For Use With/Related Products | :.062" Commercial Pin & Socket Connectors |
Documents & Media
Similar Parts
770273-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors 0.062 COMM P&S .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062" Commercial Pin & Socket Connector Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,

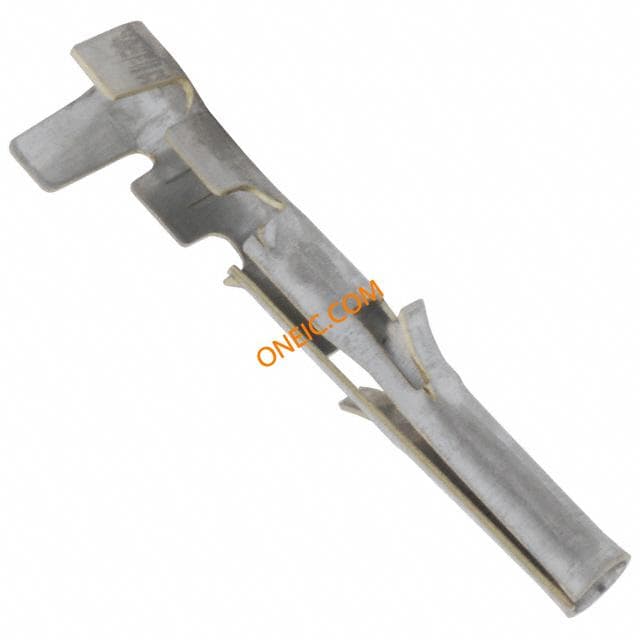

794016-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Contact female crimp 24-18AWG CPS Pin & Socket Connectors SCKT CONTACT 24-18 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = Loose PieceSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT, CRIMP, SOCKET, 24-18AWG .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for24-18AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S SOK PTPBR L/P 24-18

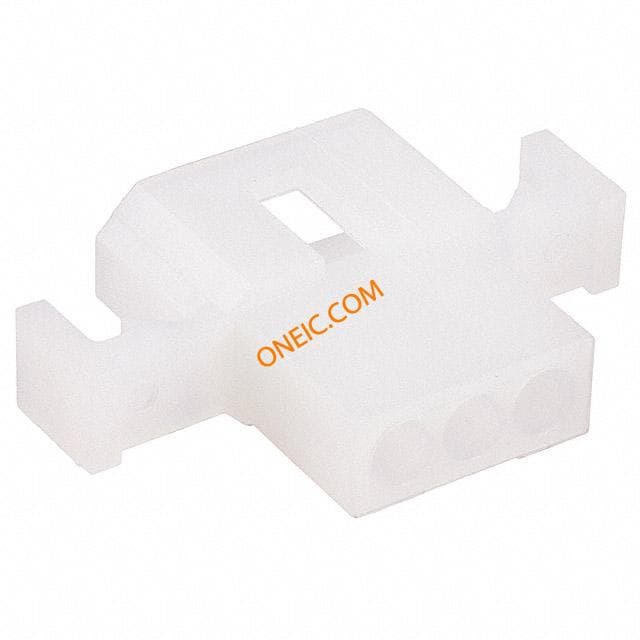

770332-1
te connectivity / amp
Conn Housing PL 3 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 3POS .062 Pin & Socket Connectors 3P .062 PLUG HSG Conn Housing PL 3 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 3Mount = Panel MountPackaging Method = One Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 03P .062 COMM P&S PLUG

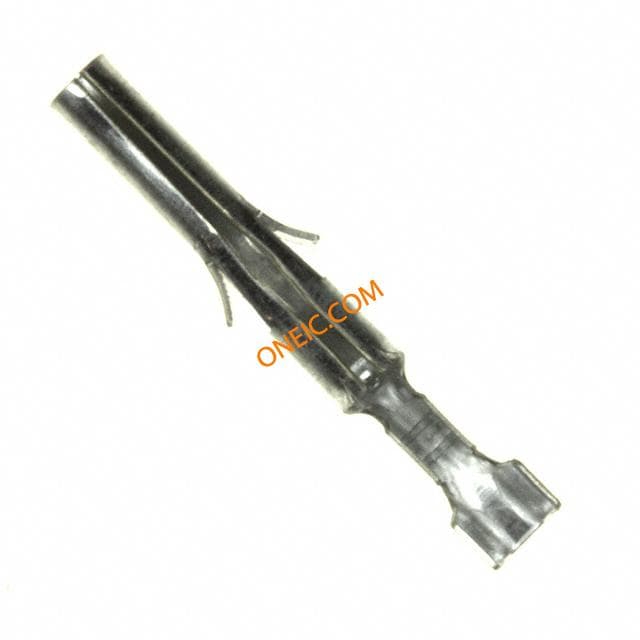

794019-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062 Pin + Socket Socket Contact24-30AWG Pin & Socket Connectors SCKT CONTACT 30-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for30-24AWG 1 Position Wire-to-Wire Crimp Straight Cable Mount Receptacle Connector .062 CP&S SOK PTPBR L/P 30-24

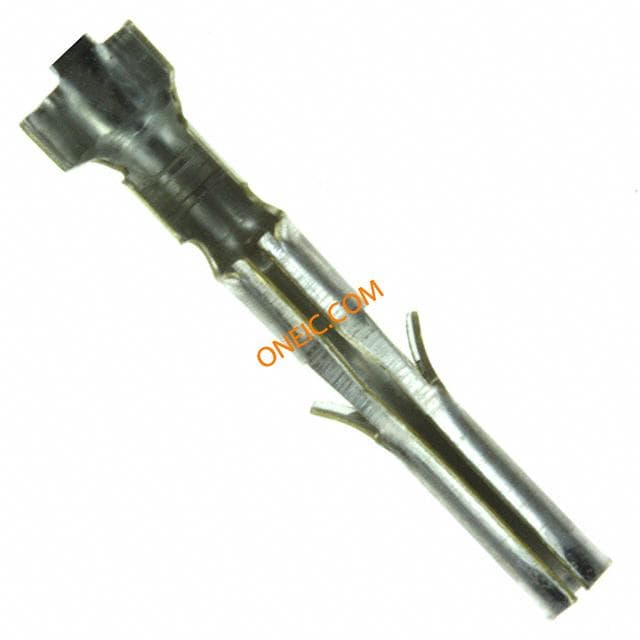

350628-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG TIN CRIMP Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors UMNL SPLIT PIN Reel of 6500 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 母 压接接线端子, 压接, 镀锡触点 .062 COMM P&S SOK 18-24 PTPBR
794017-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG TIN CRIMP Contact male crimp 24-18AWG CPS Pin & Socket Connectors PIN CONTACT 24-18 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Pin,for24-18AWG Commercial 18-24 AWG Discrete Wire to Wire Strain Relief Pin Socket Contact TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡镀镍触点 .062 CP&S PIN PTPBR L/P 24-18

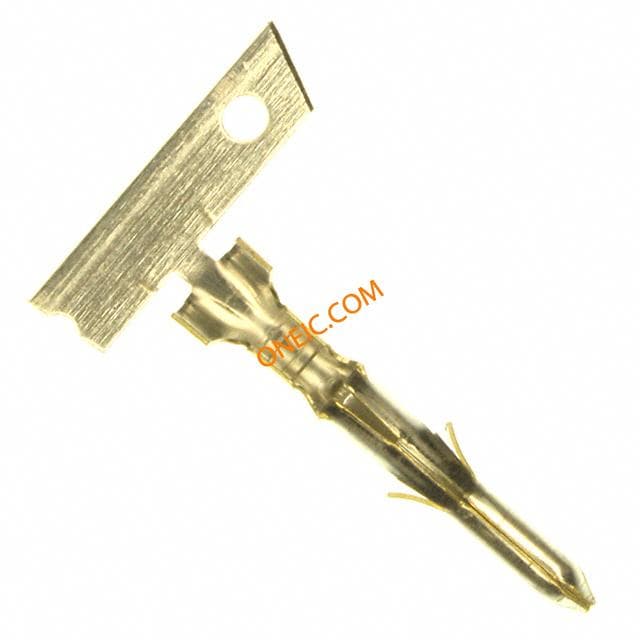

770983-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG TIN CRIMP Pin & Socket Connectors PIN 24-18 AWG TIN .062" Commercial Pin & Socket Connector Product Highlights:ContactContact Diameter = 1.57 mmPackaging Method = StripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S PIN 18-24 PTPBR

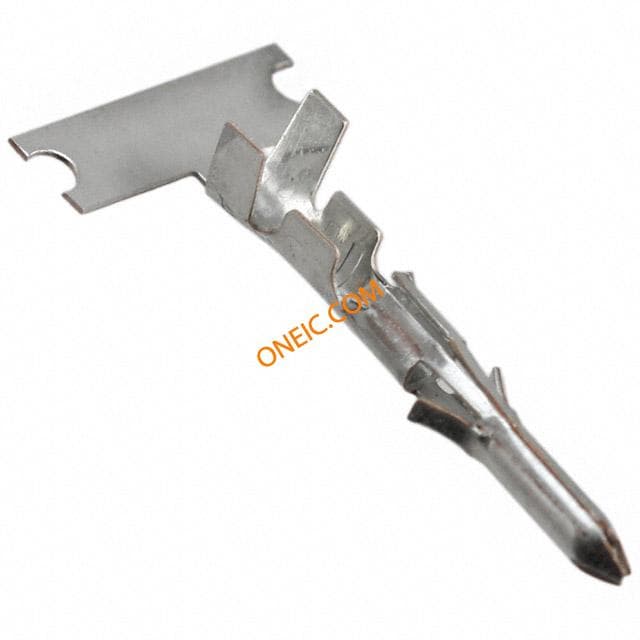

350629-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN PIN .062 18-24AWG PRE-TIN Pin & Socket Connectors 062CPS PIN 24-18 .062 COMM P&S PIN PRE TIN/PHBZ

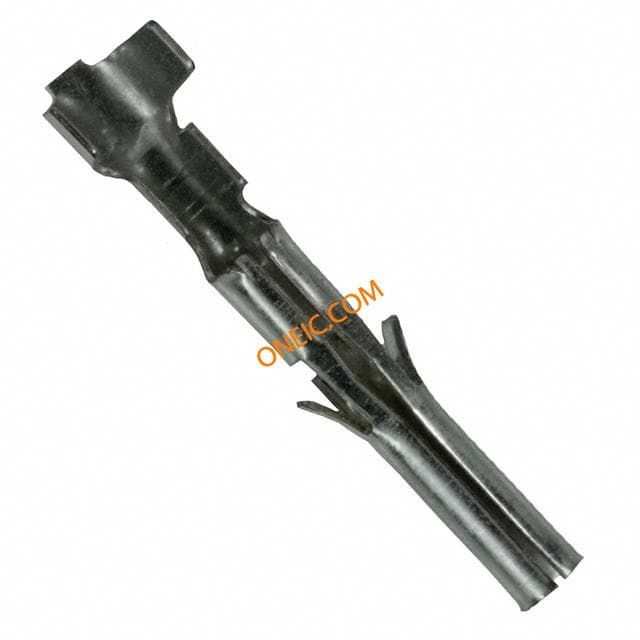

350628-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG .062 TIN Pin & Socket Connectors SOCKET CONTACT 24-18 350628-2 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, SOCKET, 24-18AWG, CRIMP .062 COMM P&S SOK PTPPHBZ
640392-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP Pin & Socket Connectors .062 COMM P&S 24-30 Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOK 24-30 PTPBR
318831-1
te connectivity / amp
EXTRACTION TOOL ASSY Hand Tools CONTACT EXTRACT TOOL Extraction Tool Assembly Extraction Tool For Removing Socket Contacts From Connector Housings EXTRACTIONTOOLASSY;.062CommercialContacts

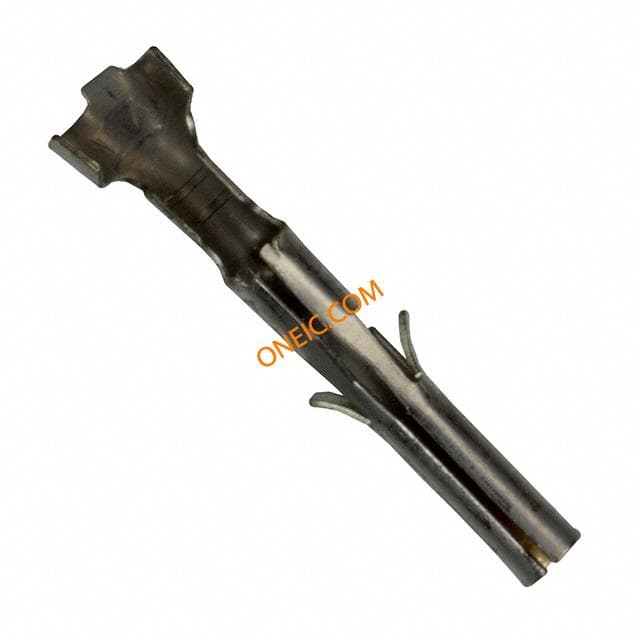

350628-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET 18-24AWG .062 GOLD Pin & Socket Connectors SOCKET CONTACT 24-18 AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOK AUNI/BR

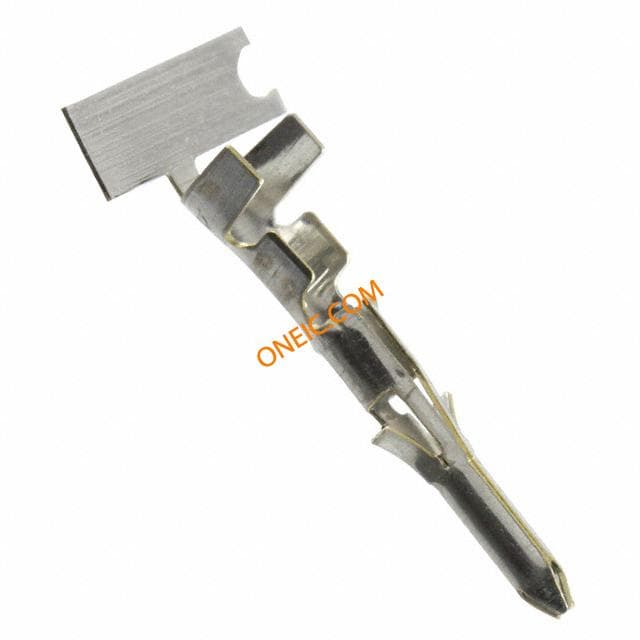

350629-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG .062 TIN Contact male crimp 24-18AWG CPS Pin & Socket Connectors SPLIT PIN 24-18 REEL Reel of 6000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 1.57 mmStripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,SOFTSHELL0.062,18-24AWG TE Connectivity Commercial .062 系列 公 压接接线端子, 压接, 镀锡触点 .062 COMM P&S PIN 18-24 PTPBR
770331-1
te connectivity / amp
Conn Housing PL 3 POS 3.68mm ST Individual .062" Commercial Pin & Socket Connector CONN PLUG W/DETENT 3POS .062 .062 Pin and Socket housing Plug 3P Pin & Socket Connectors 3 CIR. IN-LINE PLUG Conn Housing PL 3 POS 3.68mm ST Individual Product Highlights:HousingContact Diameter = 1.57 mmNumber of Circuits = 3Mount = Free HangingOne Piece HousingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;250VAC;7A(Max.);Plug;Nylon;Natural;3;0.062in. 03P .062 COMM P&S PLUG
350628-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .062" Commercial Pin & Socket Connector CONN SOCKET .062 24-18AWG GOLD Pin & Socket Connectors SOCKET 24-18 AWG AU .062 COMM P&S SOK AUNI/PHBZ .062 COMM P&S SOK AUNI/PHBZ Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,
794018-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 24-30AWG TIN CRIMP .062 Pin + Socket Pin Contact 24-30AWG Pin & Socket Connectors PIN CONTACT 30-24 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmLoose PiecePinWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 30-24AWG, CRIMP .062Soft-ShellPin&Socket,Contacts(PreTinnedBrass),Pin,for30-24AWG .062 CP&S PIN PTPBR L/P 30-24
640392-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .062" Commercial Pin & Socket Connector CONN SOCKET 30-24AWG 30GOLD Pin & Socket Connectors 0.062 COMM P&S SOCKET AUPLBR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 1.57 mmStripSocketWire Range = 0.05-0.24² [30-24] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S SOCKET AUPLBR
350629-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN PIN 18-24AWG .062 GOLD Pin & Socket Connectors PIN 24-18 AWG TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 1.57 mmStripPinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062 COMM P&S PIN AUNI/BR

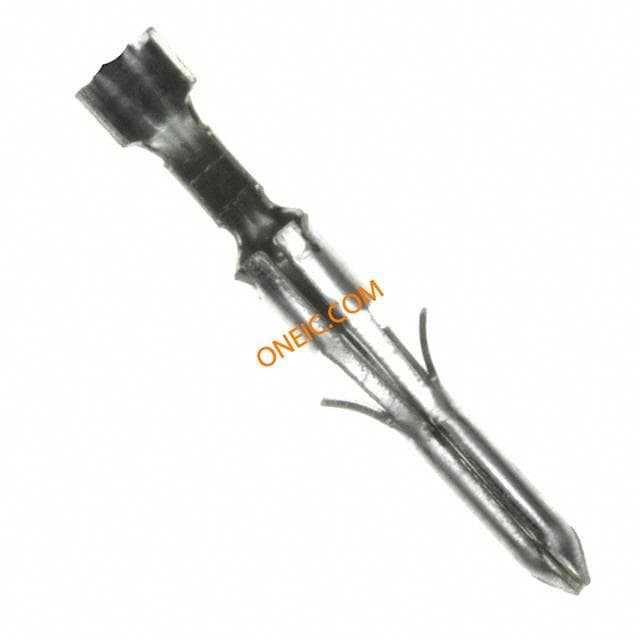

640391-1
