770329-1
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 6.35mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 4POS .093 Pin & Socket Connectors 04P .093 COMM P&S RECPT .250CL Conn Housing RCP 4 POS 6.35mm ST Individual Product Highlights:HousingReceptacle6.35 mm CenterlineNumber of Circuits = 4In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .093 COMM P&S RECPT .250CL |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-2 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 13 A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Depth | 28.96 mm |
| Pitch | 6.35 mm | Sealed | Not Sealed |
| Lock Type | Detent Lock | Packaging | Bulk |
| Size - Body | 1.57 mm [ .062 in ] | Contact Type | Male or Female |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Number of Rows | 1 | Package / Case | Receptacle |
| Housing Material | Nylon | Length - Overall | 6.35 [0.250] |
| Package Quantity | One Piece Housing | Panel Mount Type | 带有 |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | Compatible Shell Size | 插头护套 |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 2.36 [0.093] |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | Housing |
| Number of Circuits | 4 | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
350417-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG GOLD .093" Pin & Socket Connectors 093CPS SKT 24-18 350417-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingStripWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 COMM P&S SOK AU/NI/BR

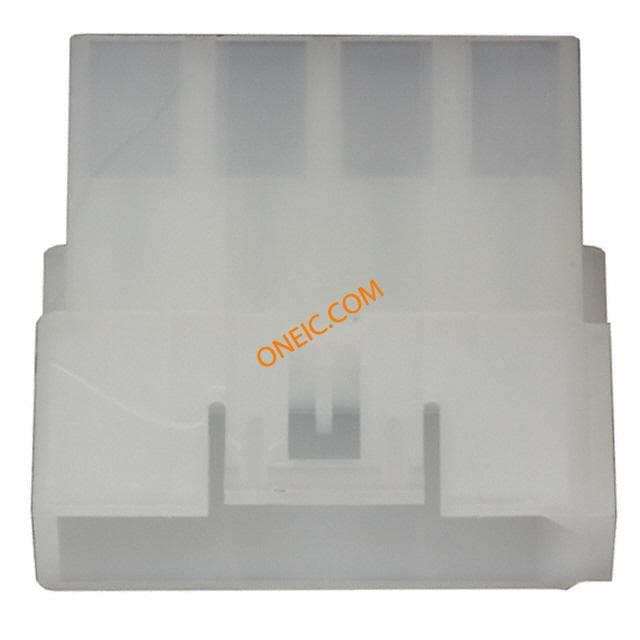

770336-1
