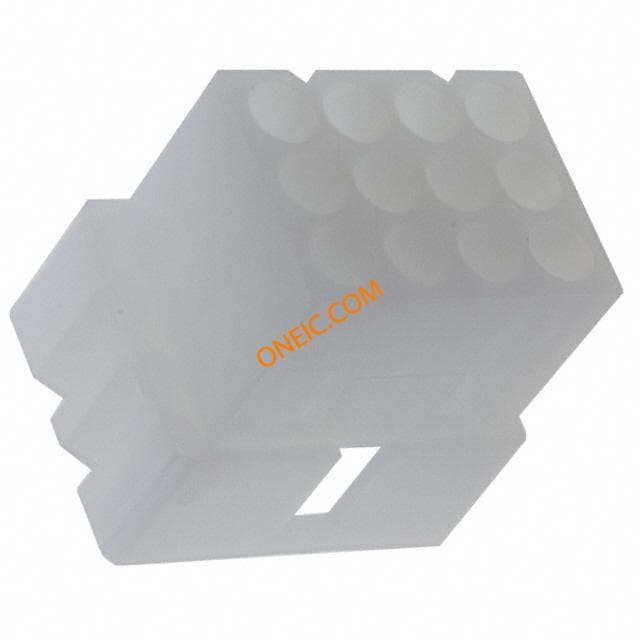

770098-1
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 12POS .093 Pin & Socket Connectors RECPT 12P DETENT LK matrix Conn Housing RCP 12 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 12Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 12P .093 COMM P&S RECPT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-2 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 13 A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Depth | 25.4 mm |
| Pitch | 5.03 mm | Width | 16.13 |
| Length | 25.4 | Sealed | Not Sealed |
| Lock Type | Detent Lock | Packaging | Bulk |
| Row Spacing | 0.198" (5.03mm) | Contact Type | Male or Female |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Number of Rows | 3 | Package / Case | Receptacle |
| Height (Inches) | 21.97 | Housing Material | Nylon |
| Length - Overall | 5.03 [0.198] | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
| Compatible Shell Size | 插头护套 | Contact Layout, Typical | Matrix |
| Contact Finish Thickness | 2.36 [0.093] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mate-N-Lok |
| Product Type | Housing | Number of Circuits | 12 |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
