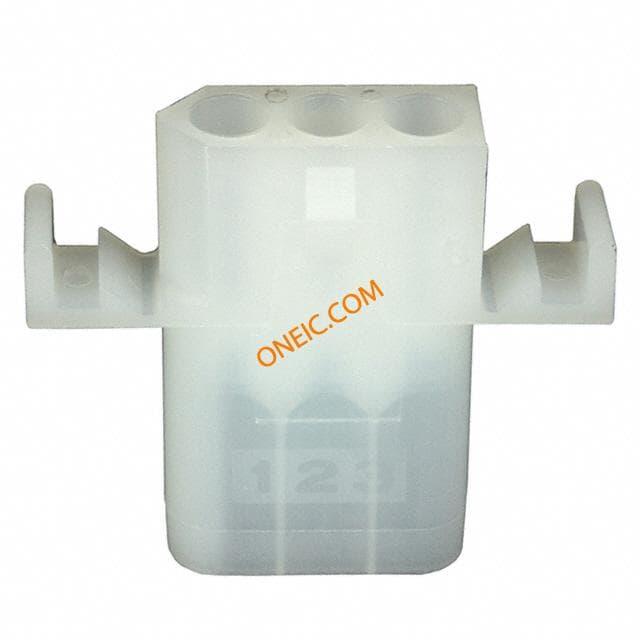

770074-1
| Manufacturer | |
| Description | Conn Housing PL 3 POS 5.03mm Crimp ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 3POS .093 Housing 3 way Commercial Pin and Socket Pin & Socket Connectors PLUG W/O EAR 3P in-line Conn Housing PL 3 POS 5.03mm Crimp ST Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 3In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Connector,SoftShell;250VAC;13A(Max.);Plug;Nylon;Natural;3;0.093in. TE Connectivity .093 Commercial 系列 5.03mm 节距 3 路 直 公 压接连接器外壳 03P .093 COMM P&S PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| UL Rating | 获得认可 | Part Status | E28476 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-2 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Number of Outputs | 3 | Current Rating (Max) | 13 A |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Depth | 9.56mm |
| Pitch | 5.03 mm | Width | 6.1mm |
| Length | 27.81mm | Sealed | Not Sealed |
| Lock Type | Detent Lock | Packaging | Bulk |
| Orientation | 直 | Contact Type | Male or Female |
| Core Diameter | 0.093in. | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Plug |
| Fastening Type | Detent Lock | Mounting Style | FreeHanging |
| Number of Rows | 1 | Package / Case | Plug |
| Height (Inches) | 19.56 | Width - Overall | .34 |
| Housing Material | Nylon | Length - Overall | 5.03 [0.198] |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.198" |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Compatible Shell Size | 母端护套 |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 2.36 [0.093] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Commercial Pin and Socket |
| Features | FreeHanging | Manufacturer | SoftShell |
| Product Type | Housing | Number of Circuits | 3 |
| For Use With/Related Products | PCB Connector | ||
Environmental
| Operating Temperature | +25to+65°C | ||
Documents & Media
