770050-1
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 4POS UNIV-MNL II Pin & Socket Connectors 04P UMNL II CAP REAR Conn Housing RCP 4 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOK II Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL II CAP REAR 94VO |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Depth | 21.45 mm |
| Pitch | 6.35 mm | Width | 26.67 |
| Height | 14.73 mm | Length | 21.46 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 白色 | Contact Type | Male or Female |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Receptacle, Rear Section | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Panel Mount, Free Hanging |
| Number of Rows | 2 | Package / Case | Receptacle |
| Height (Inches) | 14.73 | Panel Thickness | .03 – .09 |
| Housing Material | Polyamide (PA) | Length - Overall | 26.67 mm |
| Package Quantity | 1 | Termination Style | Quick Connect |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Compatible Shell Size | 标准通用 MATE-N-LOK 连接器 | Contact Layout, Typical | 直插式 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | 护套 |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 120 °C [ -67 – 248 °F ] |
Documents & Media
Similar Parts

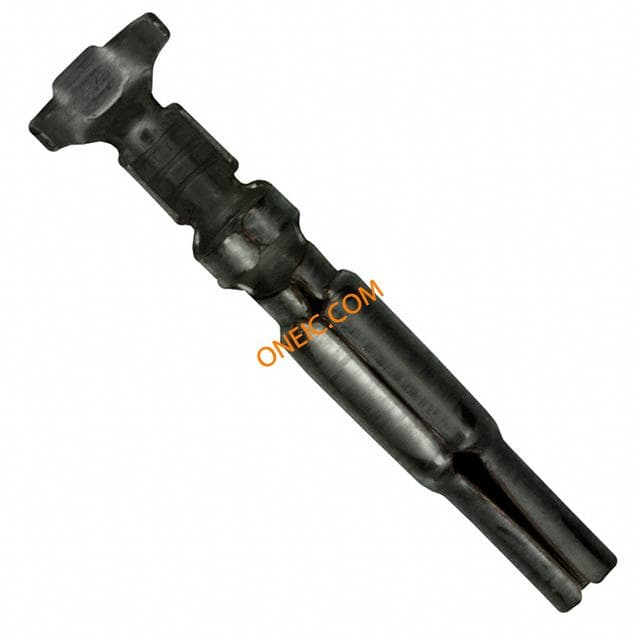

770006-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Power to the Board SOCKET CONTACT REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II SOK PTPPHBZ
770193-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors UMNL II GROUND PIN 14-20 AWG .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP TERM Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN 14-20 AWG
1-770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
1-770254-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG GROUND PIN LP DUPL BR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK II Product LineTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN LP DUPL BR
1-770007-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Power to the Board PIN 20-14 BR/AU 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,SplitPin,UniversalMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL II PIN AUSN/NI/BR
1-770249-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board II SKT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ LP
770010-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP Power to the Board SOCKET 24-18 REEL Conn Contact SKT 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,Socket,UniversalMATE_N_LOKII,24-18AWG Universal MATE-N-LOK II 24-18 AWG Wire to Cable Crimp Socket Contact UMNL II SOK PTPPHBZ

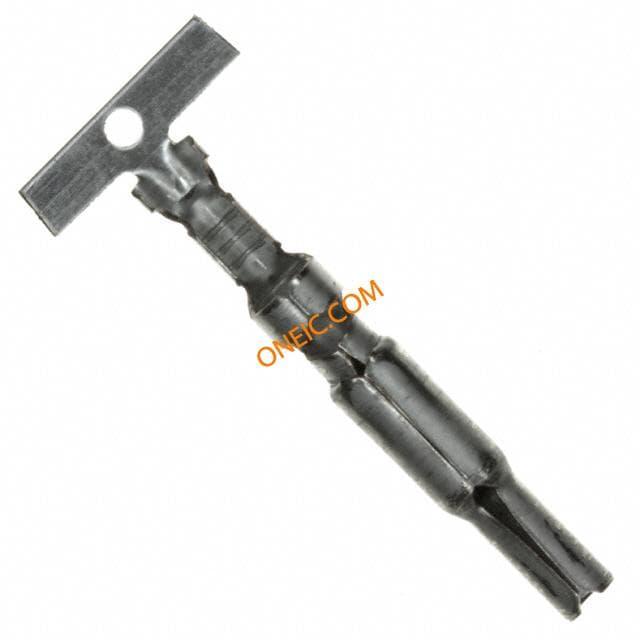

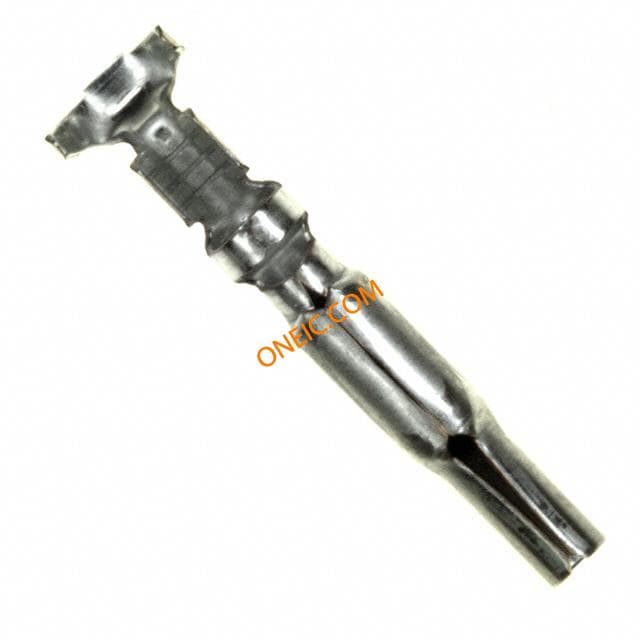

770249-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP MATE-N-LOK II Socket Contact tin24-18AWG Power to the Board SOCKET 20-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for20-14AWG UMNL II SOK PTPPHBZ LP 12-14
1-770251-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG MATE-N-LOK 20-14 AWG Wire to Cable Crimp Socket Contact UMNLII SOK PTPPHBZ LP LF 20-14
770248-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact male 20-14AWG UMNL II Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity MATE-N-LOK 系列 公 印刷电路板连接器触点, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14AWG
1-770247-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board SKT 12-10 PHBR/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ UMNL II SOK SN/AUNI/PHBZ LP
770005-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP
1-770004-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board UMNLII SKT 12-10 PHBR/AU 1-770004-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK II Product LineContact Gender = SocketTerminate To WireCrimp Termination MethodSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ Contact; female; 3÷6mm2; Universal MATE-N-LOK II; gold plated UMNL II SOK SN/AUNI/PHBZ
770253-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP MATE-N-LOK II Pin Contact tin 24-18 AWG Power to the Board SOCKET 24-18 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for24-18awg UMNL II SOK PTPPHBZ LP 24-18

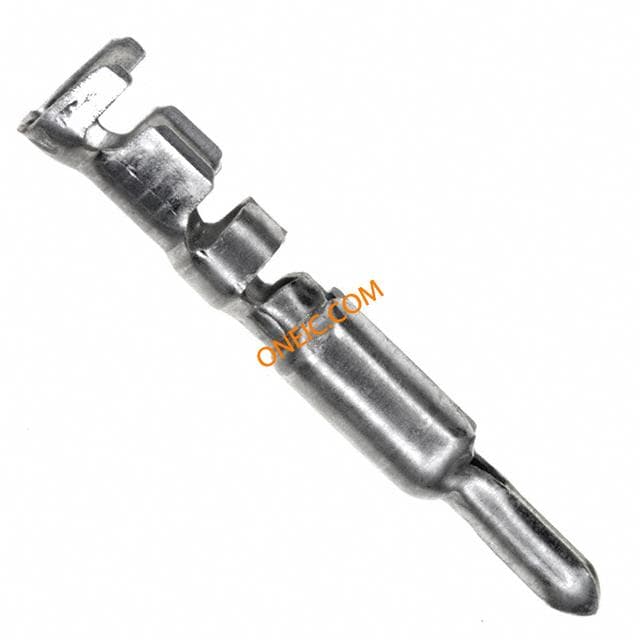

770250-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact Crimp Pin 20-14AWG Mate-n-Lok Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14
1-770250-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP CONTACT,SPLITPIN,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II PIN SN/AUNI/BR LP20-14
770254-2
TE Connectivity / AMP
ピン & ソケットコネクタ UMNL II GROUND PIN LP DUPL BR .250" Centerline, 600 V, 19 - 36 A max CONN PIN GRND 14-20AWG AU CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

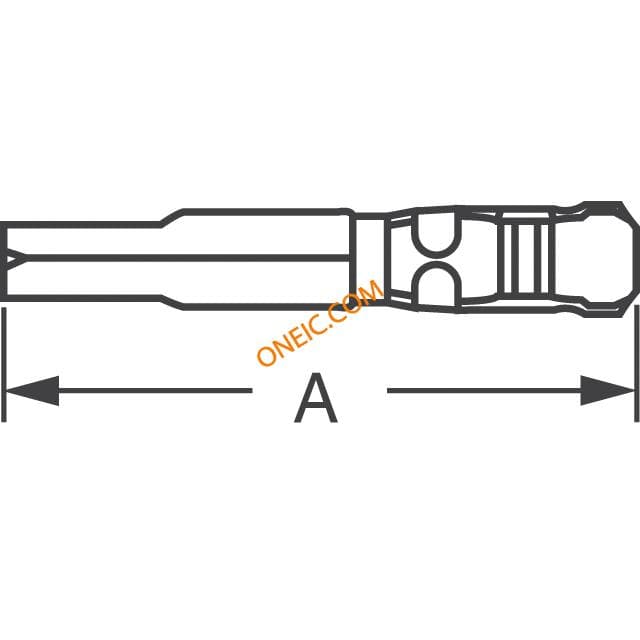

770004-4
