770044-1
| Manufacturer | |
| Description | Conn Housing PL 15 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 15POS UNIV-MNL II Pin & Socket Connectors 15P UMNL II PLUG REAR 94VO Conn Housing PL 15 POS 6.35mm ST Rear Piece Product Highlights:ConnectorUniversal MATE-N-LOK II Product LineHousingConnector Style = PlugContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15 Position 6.35mm 19A 600V Free Hanging Mate-N-Lok Plug 15P UMNL II PLUG REAR 94VO |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 VAC | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | White | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Row Spacing | 0.250" (6.35mm) | Contact Form | Male or Female |
| Contact Type | Male or Female | Lead Spacing | 0.250" (6.35mm) |
| Mounting Type | Straight | Connector Type | Plug, Rear Section |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 3 |
| Package / Case | Plug | Height (Inches) | .375 |
| Panel Thickness | .03 – .09 | Width - Overall | .8 |
| Housing Material | Nylon | Length - Overall | 1.3 |
| Package Quantity | 1 | 1st Contact Gender | Pin (Male), Socket (Female) |
| Number of Contacts | 15 | Contact Termination | Crimp |
| Number of Positions | 15 | Compatible Shell Size | 标准通用 MATE-N-LOK 连接器 |
| Contact Layout, Typical | 矩阵 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| Product Type | Plug Housings | Output Configuration | Free Hanging (In-Line) |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 120 °C [ -67 – 248 °F ] |
Documents & Media
Similar Parts
770006-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Power to the Board SOCKET CONTACT REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II SOK PTPPHBZ
770193-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors UMNL II GROUND PIN 14-20 AWG .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP TERM Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN 14-20 AWG
1-770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
1-770254-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG GROUND PIN LP DUPL BR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK II Product LineTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN LP DUPL BR
1-770007-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Power to the Board PIN 20-14 BR/AU 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,SplitPin,UniversalMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL II PIN AUSN/NI/BR
1-770249-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board II SKT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ LP
770010-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP Power to the Board SOCKET 24-18 REEL Conn Contact SKT 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,Socket,UniversalMATE_N_LOKII,24-18AWG Universal MATE-N-LOK II 24-18 AWG Wire to Cable Crimp Socket Contact UMNL II SOK PTPPHBZ
770249-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP MATE-N-LOK II Socket Contact tin24-18AWG Power to the Board SOCKET 20-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for20-14AWG UMNL II SOK PTPPHBZ LP 12-14
1-770251-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG MATE-N-LOK 20-14 AWG Wire to Cable Crimp Socket Contact UMNLII SOK PTPPHBZ LP LF 20-14
770248-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact male 20-14AWG UMNL II Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity MATE-N-LOK 系列 公 印刷电路板连接器触点, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14AWG
1-770247-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board SKT 12-10 PHBR/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ UMNL II SOK SN/AUNI/PHBZ LP
770005-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP
1-770004-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board UMNLII SKT 12-10 PHBR/AU 1-770004-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK II Product LineContact Gender = SocketTerminate To WireCrimp Termination MethodSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ Contact; female; 3÷6mm2; Universal MATE-N-LOK II; gold plated UMNL II SOK SN/AUNI/PHBZ
770253-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP MATE-N-LOK II Pin Contact tin 24-18 AWG Power to the Board SOCKET 24-18 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for24-18awg UMNL II SOK PTPPHBZ LP 24-18
640718-1
te connectivity / amp

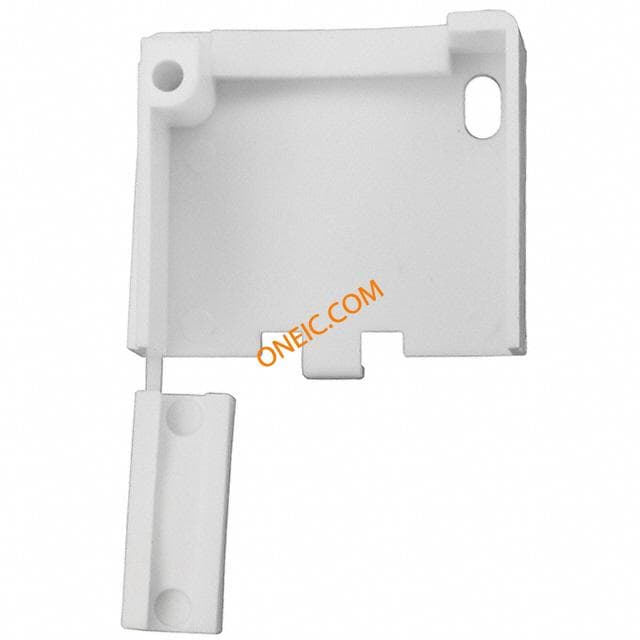

15P UMNL STR/REL Connector Accessories Strain Relief 15 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 15POS Mate-N-Lok cable-clamp housing 15W Pin & Socket Connectors STRN RLF 15P MATRIX Connector Accessories Strain Relief 15 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 15Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 15WAY U-M-N-LACCESSORIES,15PUMNLSTR/REL Strain relief shell, 640718-1, TE Connectivity TE Connectivity 640718 15路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器
