770024-1
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN RECPT/CAP 2POS UMNL-II 2PC Housing,cap,kit,Mate-n-lokII,2way Pin & Socket Connectors 2 IN LINE CAP Conn Housing RCP 2 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING KIT, 2WAY Connector,SoftShell;UniversalMATE-N-LOKII;2;Receptacle(Cap);Nylon Crimp housing Pitch6.35 mm Poles 2 MATE-N-LOK Universal, 770024-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 6.35mm 节距 2 路 直 母 压接连接器外壳 02P UMNLII IN-LINE CAP HSG KIT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 31 A |
| Voltage - Input (Min) | 600VAC | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Depth | 22.99mm |
| Pitch | 6.35 mm | Weight | 0.002 |
| Packaging | Bulk | Wire Gauge | 10-30 AWG |
| Contact Type | Male or Female | Housing Color | White |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Contact Material | :Copper | Housing Material | Nylon |
| Color - Connectors | :White | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Receptacle Housings |
| For Use With/Related Products | Universal MATE-N-LOK II Connector | ||
Environmental
| Operating Temperature | -55C to 120C | ||
Documents & Media
Similar Parts

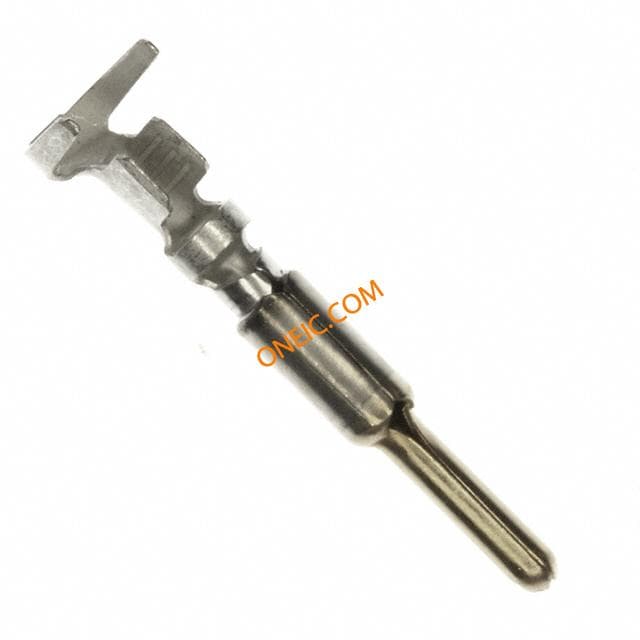

770255-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG GROUND PIN LP DUPL BR 770255-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK II Product LineTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

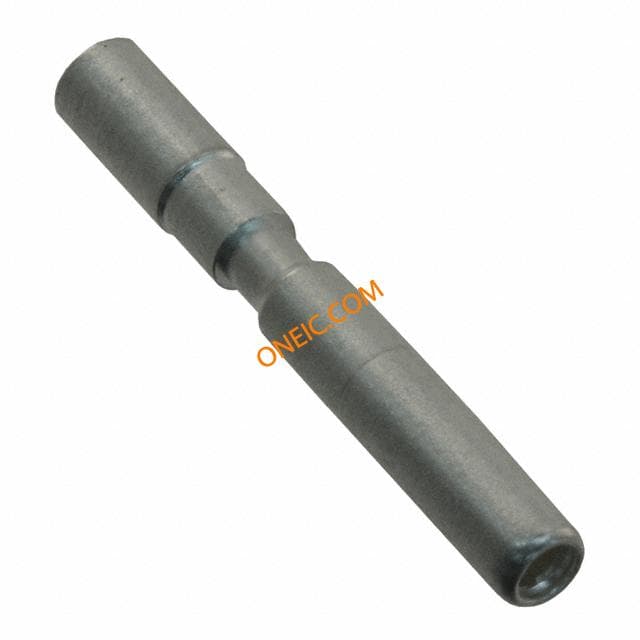

193842-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT CRIMP SOCKET AWG 12-14 Contact socket Universal Mate-n-Lok Power to the Board SOCK TERM 14-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketHigh CurrentSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, SOCKET, 14-12AWG CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,2MM,12-14AWG,HIGHCURRENT TE Connectivity Elcon 系列 压接接线端子, 镀金镀镍触点 SKT ASSY., 2MM, 12-14 AWG
1-770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

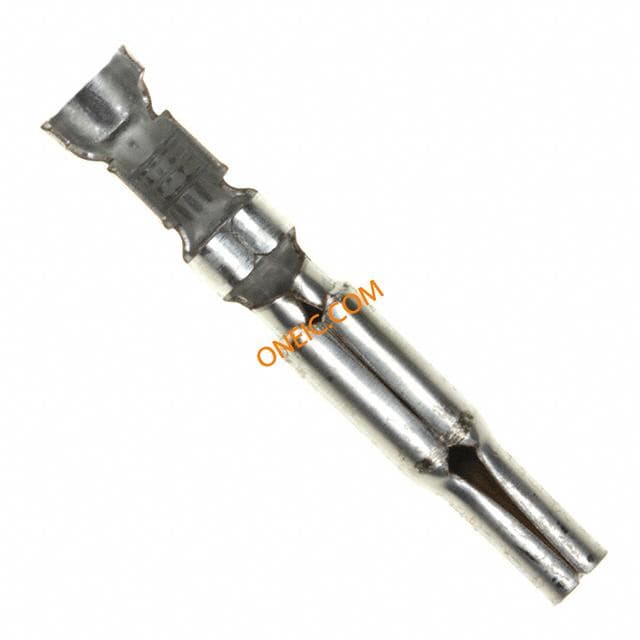

770008-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ

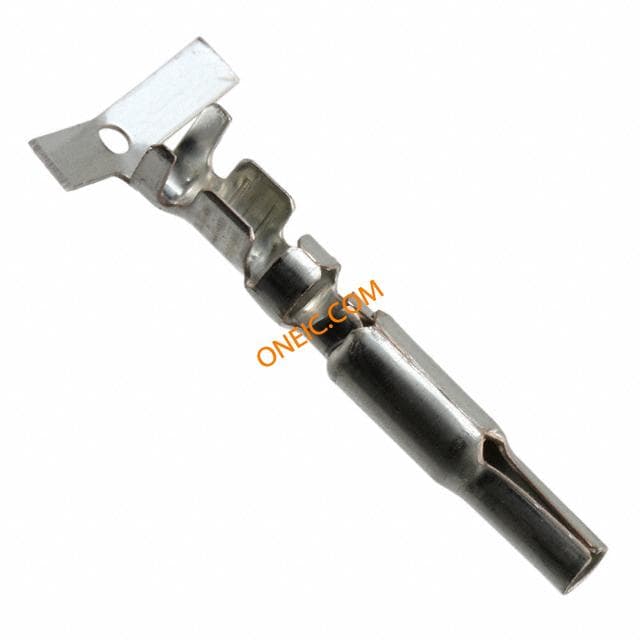

770008-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Contact female 20-14AWG UMNL II Power to the Board SOCKET 20-16 AWG Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡镀镍触点 UMNL II SOK PTPPHBZ
1-770007-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Power to the Board PIN 20-14 BR/AU 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,SplitPin,UniversalMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL II PIN AUSN/NI/BR
770249-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP MATE-N-LOK II Socket Contact tin24-18AWG Power to the Board SOCKET 20-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for20-14AWG UMNL II SOK PTPPHBZ LP 12-14
770017-1
te connectivity / amp
Conn Housing PL 2 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,2Way Pin & Socket Connectors 2 POS IN LINE PLUG Conn Housing PL 2 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING HOUSING, PLUG, MATE-N-LOCK, 2WAY Connector,SoftShell;UniversalMATE-N-LOKII;2;Plug;Nylon;White;31A Plug; wire-wire; 6.35mm; PIN:2; Pin layout:1x2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 MATE-N-LOK Universal, 770017-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 6.35mm 节距 2 路 直 公 压接连接器外壳 02P UMNLII IN-LNE PLUG HSG KIT

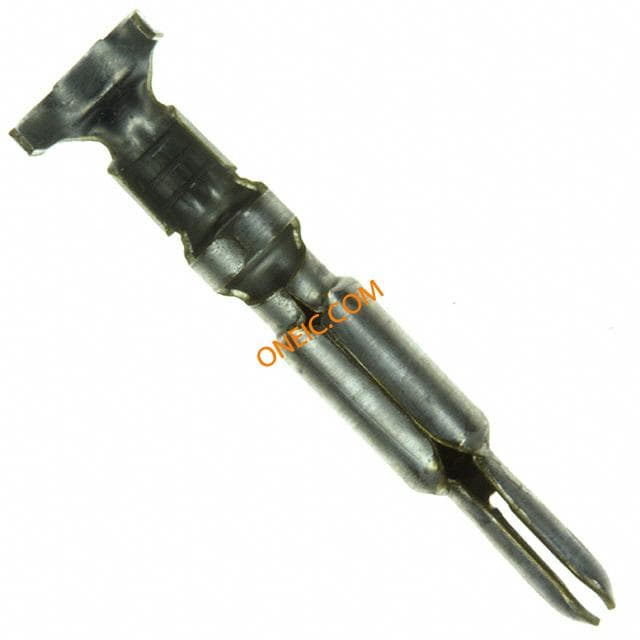

770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Pin & Socket Connectors SPLIT PIN CONTACT REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,SPLITPIN,UNIVERSALMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 UMNL II PIN PTPBR
770512-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN SPLIT 30-26AWG U-MNL II Pin & Socket Connectors UMNL PIN AU/PHBZ LP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

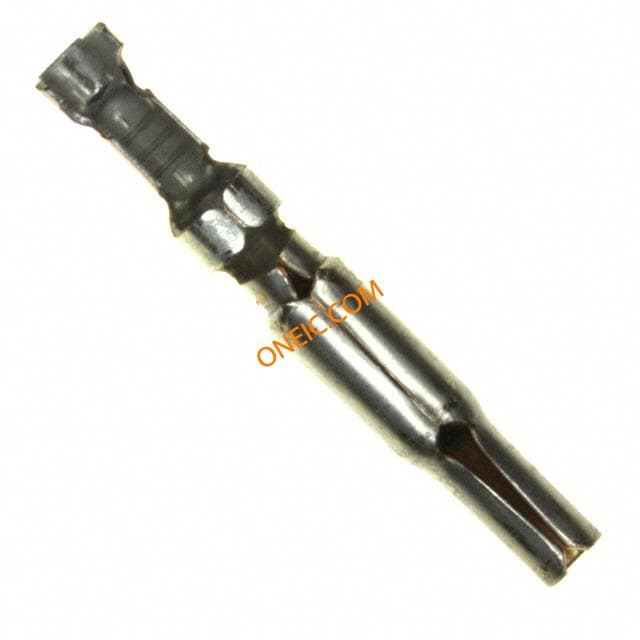

770253-4
