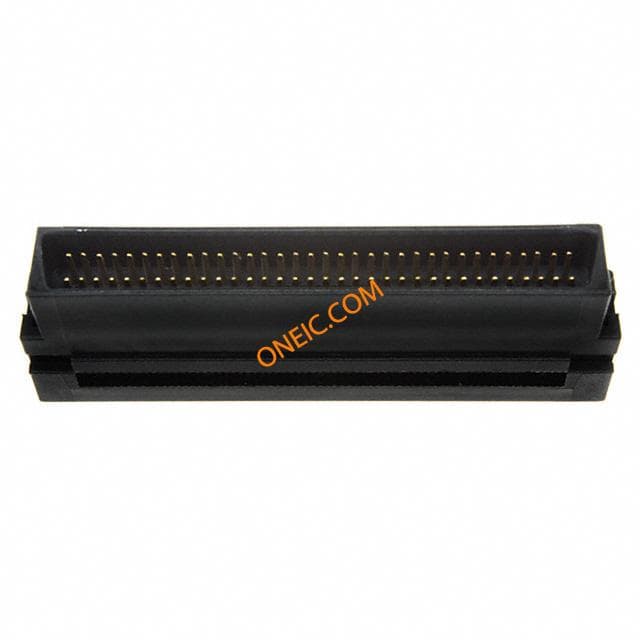

749656-7
| Manufacturer | |
| Description | Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 68POS .050 PNLMT W/COV I/O Connectors 68 POS RECEPTACLE 256 68 50SR PANEL MOUNT RCPT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SCSI Connectors | Lead Time | 70 Days |
| Subcategory | Connector SCSI | Product Category | I/O Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 8 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | Not ELV/RoHS compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Frequency | 不带 | Voltage Rating | 30V |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 1A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Shielding | 否 | Body Color | 黑色 |
| Cable Type | Ribbon Cable, Round Jacketed Cable | Wire Gauge | .05 – .09 mm² [ 30 – 28 AWG ] |
| Shield Type | No | Termination | IDT |
| Thread Size | 2-56 | Contact Type | Signal |
| Lead Spacing | .64 mm [ .025 in ] | Shell Finish | 铜镀镍 |
| 2nd Connector | With | Mounting Type | Cable Mount |
| Shell Plating | Nickel over Copper | Connector Type | IDC |
| Contact Finish | Tin-Lead over Nickel | Flange Feature | Housing/Shell (2-56); Latchblocks |
| Mounting Rails | Without | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Type |
| Insert Material | 磷青铜 | Locking Feature | Latch Blocks |
| Contact Material | Phosphor Bronze | Cord Termination | Assembled |
| Housing Material | Thermoplastic | Mounting Feature | 无 |
| Package Quantity | 8 | Panel Mount Type | With |
| Termination Style | With | Number of Contacts | 68 |
| Insulation Diameter | 0.74 â 0.91 [0.029 â 0.036] | Number of Positions | 68 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Wire Gauge or Range - AWG | 30 – 28 | Wire Gauge or Range - mm2 | 0.05-0.09² [30-28] |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Torque - Max Momentary (oz-in / mNm) | 不带 |
Product Info
| Mfr | .91 | Type | SCSI |
| Detent | Without | Gender | RCP |
| Series | Series III | Features | .050 Series Cable Connectors |
| Manufacturer | AMP | Preinstalled | 是 |
| Product Type | Connector | Configuration | 已装配 |
| Connection Type | Wire | Other Specifications | 锌 |
| For Use With/Related Products | 1-749656-2 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
