7-1103640-1
| Manufacturer | |
| Description | Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN MALE INSERT HE.24 SERIES HD Connect Insert HE24 male clamp Heavy Duty Power Connectors HE.24.STI.SC.B1-24 Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, HE.24, SPRING-CLAMP, PIN Connector: HTS; male; HTS HE; PIN:24; 24+PE; size 8; 16A; 400V TE Connectivity HE 系列 24针 24P+E极 插头 电源连接器外壳 HE.24.STI.SC.B1-24 |
| Category |
Business
| Lead Time | 73 Days | Subcategory | Connector Rectangular |
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| Tariff No | 85366910 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 400V | Current Rating (Max) | 16A |
| Voltage - Supply (Min) | 400V | ||
Mechanical
| Size | 8 | Color | Gray |
| Depth | 34 mm | Height | 33 mm |
| Weight | 0.05 | Material | thermoplastic |
| Boreholes | 104mm | Packaging | Loose Piece |
| Termination | Crimp | Mounting Type | Cable Mount |
| Connector Type | Insert | Contact Finish | Silver |
| Mounting Style | Cable | Number of Rows | :2 |
| Package / Case | size 8 | Insert Material | :Power |
| Contact Material | Hard Silver | Housing Material | Polycarbonate (PC), Glass Filled |
| Length - Overall | 110 mm | Package Quantity | 5 |
| Size / Dimension | see | Termination Style | Tension Clamp |
| 1st Contact Gender | :Pin | Diameter - Outside | 110mm |
| Number of Contacts | 24Signal/1Ground | Contact Termination | :Crimp |
| Cross Section Shape | 0.5...2.5mm2 | Number of Positions | 24+Ground |
| Shell Size - Insert | :8 | Diameter - Small Outside | 27mm |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | 24+PE |
Product Info
| Spg | 5 | Type | Rectangular |
| Gender | PL | Series | Han E |
| Pole Format | 24P+E | Product Type | Inserts |
| Accessory Type | Contact | Adapter Series | HTS HE |
| Number of Units | 1 | Other Specifications | 33mm |
| For Use With/Related Products | Machined Crimp Contact | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
1-1102316-6
te connectivity / amp

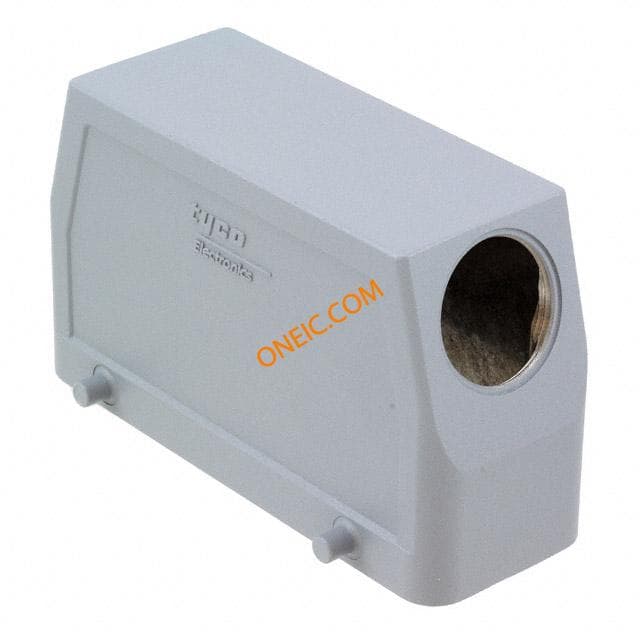

Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories HB.24.STS.1.21.G Heavy Duty Power Connectors HOOD SZ 8 PG21 HB.24.STS.1.21.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Product Highlights:HB SeriesHoodProduct Size = 8Dimensions (L x H x W) = 120.00 x 70.00 x 43.00 mmLocking Device Type = Locking Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 8; PG21; for cable
1102837-1
te connectivity / amp
Connector Accessories Housing Loose Piece Heavy Duty Power Connectors HF-EMV-K.8.AG.N CONN HOUSING SZ8 HF-EMV
1-1102291-8
te connectivity / amp
Connector Accessories SMD Mounting Base Housing Die Cast Aluminum Silver Gray CONN HOUSING Connector Accessories SMD Mounting Base Housing Die Cast Aluminum Silver Gray Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CONN BASE BOTTOM ENTRY SZ8 HB-Z.24.AG-ZVGR
1-1102237-8
te connectivity / amp
Connector Accessories Housing Loose Piece Heavy Duty Connectors CONN HOUSING SZ12 HB Heavy Duty Power Connectors HB/Z.48.AG-ZVGR Connector Accessories Housing Loose Piece Product Highlights:HB SeriesHousingProduct Size = 12Dimensions (L x H x W) = 185.0 x 37.0 x 90.0 mmLocking Device Type = Central Locking Clip on HoodSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB/Z.48.AG-ZVGR
1-1102328-7
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOOD TOP SZ8 PG29 HB Heavy Duty Power Connectors HB.24.STO-GR.1.29.G HB.24.STO-GR.1.29.G HB.24.STO-GR.1.29.G Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650
1-1102319-7
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum CONN HOOD SIDE SZ8 PG29 HB Connector Accessories Hood Die Cast Aluminum Product Highlights:HB SeriesHoodProduct Size = 8Dimensions (L x H x W) = 120.00 x 70.00 x 43.00 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB.24.STS-GR.1.29.G
1-1106465-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Black Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ8 M32 HB-K Heavy Duty Power Connectors Conn AccHood Type M32 Die Cast Alum Connector Accessories Hood Die Cast Aluminum Black Loose Piece Product Highlights:HB-K SeriesHoodProduct Size = 8Dimensions (L x H x W) = 120.00 x 70.00 x 43.00 mmLocking Device Type = Locking Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB-K.24.STS.1.M32.G
1106461-2
te connectivity / amp
Connector Accessories Hood Loose Piece Die Cast Aluminum Silver Gary HTS Connectors and Accessories CONN HOOD SIDE ENTRY EMV SERIES Heavy Duty Power Connectors HOOD SIDE ENTRY EMV SERIES Connector Accessories Hood Loose Piece Die Cast Aluminum Silver Gary Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CONN HOOD SIDE ENTRY SZ8 M40 EMV24/64.STS.1.M40G
1106469-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HSG W/CVR SZ8 M32 HD Heavy Duty Power Connectors HD.64.SGD-LB.2.M32G Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HD.64.SGD-LB.2.M32G
1-1102331-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOUSING SZ8 PG21 HB HTS Connectors and Accessories Product Highlights:HB SeriesHousingProduct Size = 8Dimensions (L x H x W) = 144.00 x 55.50 x 57.00 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650
1-1102660-5
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Heavy Duty Power Connectors HIP.24/64.STS.1.29. HTS Connectors and Accessories CONN HOOD SIDE SZ8 PG29 HIP.24
1106465-4
te connectivity / amp

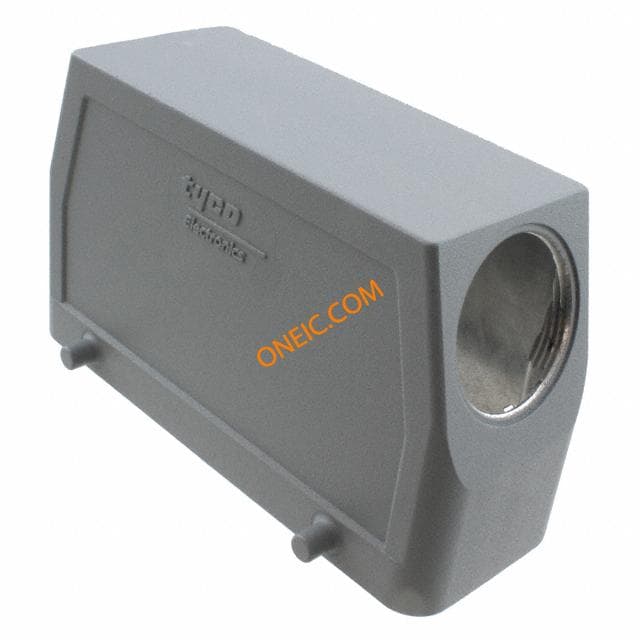

Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ8 M32 HB HE Connector, Hood HB.24.STS.1.M32.G Heavy Duty Power Connectors HB.24.STS.1.M32.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOOD, SIZE 8, SIDE ENTRY, M32 HDCONNECTOR,HOODHB.24.STS.1 TE Connectivity HB 系列 电源连接器 HB.24.STS.1.M32.G
