点击放大查看
6605759-1
| Manufacturer | |
| Description | モジュラーコネクタ/Ethernetコネクタ 1X1 7N2 726 CAP MAG45 Integrated Magnetic, Stacked (Mag45) and Power over Ethernet (PoE) Modular Connectors / Ethernet Connectors 1X1 7N2 726 CAP MAG45 Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:10/100BASE-T Ethernet ApplicationSingle Port ConfigurationJack Type = RJ45Magnetic Circuit = 726Turns Ratio = 1:1Search Keywords:IEEE 802.3, ANSI X3.263, physical layer transceiver chip (phy), 10/100BASE-T, modular jacks, NIC, Network Interface Cards, PC Cards, input/output, box to box, Power Over Ethernet, PoE, POE, Mag45, MagJack, Cat5e, 7mm centerline, 10/100/1000BASE-T, RJ point 5, RJ.5, double density, next-generation Ethernet, modular, data center switching, high density Ethernet, server I/O, wiring closet switching, routing, PlanarMag, integrated magnetics, ICM, Integrated Circuit Magnetics MODULAR, JACK, THT, R/A, RJ45, 8P8C MagjackRJ45Sheilded10/100BaseTR/A |
| Category |
Business
| Product Category | Modular Connectors / Ethernet Connectors | Factory Pack Quantity | 63 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | :ANSI X3.263, IEEE 802.3, UL203973 recognised |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| LED | Without | Core Type | 726 |
| Impedance | 100 | Signal Types | Auto MDI/MDIX |
| Capacitance @ Vr, F | 2KV | Number of Conductors | 8 |
| Connector - Voltage Input | :- | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Weight | 0.001 | Packaging | Tray |
| Shielding | Shielded | Orientation | Inverted - Latch Up |
| Shield Type | Yes | Mounting Type | Right |
| Shell Plating | Semi-Bright Nickel (Pre-plated) | Angle of Throw | RightAngle |
| Connector Type | Without | Contact Finish | Gold |
| Mounting Style | Thru Hole | Shield Material | Brass |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Primary Material | Modular | Termination Style | Through Hole |
| Bottom Termination | Without | Number of Contacts | :8 |
| Shield Termination | With | Contact Termination | :Through Hole Right Angle |
| Insulation Material | Without | Number of Positions | :8 |
| Material - Insulation | :Thermoplastic | ||
Product Info
| Type | Single Port | Gender | Female |
| Series | Mag45 | USOC Codes | RJ45 |
| Manufacturer | Transpower | Specifications | RJ45 |
| Number of Ports | 1 | Jack Configuration | 1 x 1 |
Environmental
| Temperature Rating | Office / Premises (0 ºC to +70 ºC) | Operating Temperature | 0 C to + 70 C |
Similar Parts
5-6605308-1
te connectivity / amp
Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port Integrated Magnetic, Stacked (Mag45) and Power over Ethernet (PoE) Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port Product Highlights:10/100BASE-T Ethernet ApplicationComponent Type = Single PortMagnetic Circuit = 326P1Turns Ratio = 1:11 x 1 Jack ConfigurationSearch Keywords:IEEE 802.3, ANSI X3.263, physical layer transceiver chip (phy), 10/100BASE-T, modular jacks, NIC, Network Interface Cards, PC Cards, input/output, box to box, Power Over Ethernet, PoE, POE, Mag45, MagJack, Cat5e, 7mm centerline, 10/100/1000BASE-T, RJ point 5, RJ.5, double density, next-generation Ethernet, modular, data center switching, high density Ethernet, server I/O, wiring closet switching, routing, PlanarMag, integrated magnetics, ICM, Integrated Circuit Magnetics JACK, MAG45, THRU HOLE
2100357-1
TE Connectivity / AMP
Cable Assemblies 0.5M RJ POINT FIVE To RJ45 Cable Assy RJ Point Five/RJ45, 0.5M Cable Assembly Ethernet Cables / Networking Cables 0.5M RJ POINT FIVE To RJ45 Cable Assy Cable Assembly Cat 5e 0.5m 24AWG 8 POS RJ Point Five to 8 POS Modular Plug PL-PL Cable Assembly Cat 5e 0.5m 24AWG 8 POS RJ Point Five to 8 POS Modular Plug PL-PL Search Keywords:Digital Visual Interface, high performance, NIC, Network Interface Cards, PC Cards, box to box, plug and play, DVI-D, Dongle, computer, monitor, display port, video, VGA, HDMI, DP Cable Adapters, DisplayPort, VESA, D2G, D2M, D2V, D2X, DisplayPort Cable Adapters, DP, DP++, DP ++, CLOUDSPLITTER RJ POINT FIVE CABLE, CAT5E, 0.5M, BLACK CABLE, RJ POINT5 - RJ45, 0.5M RJPointFive/RJ45,0.5MCableAssembly TE Connectivity 500mm 黑色 UTP屏蔽 交叉线路配置 5e 类电缆组件
SS-60000-009
bel
Conn Telephone/Telecom F 8 POS 2.03mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 6

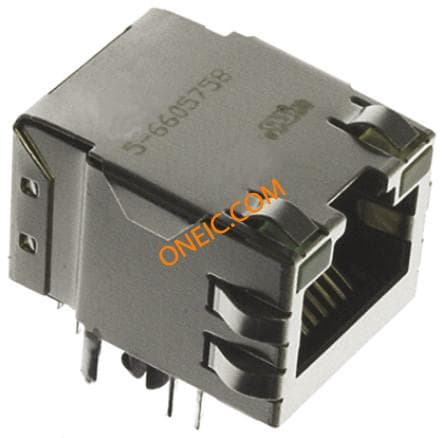

5-6605758-1
