647401-7
| Manufacturer | |
| Description | Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS HOUSING SL-156 Headers & Wire Housings 07P SL156 HSG W/RAMP LRG OPEN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Housing7 PositionsConnector Style = ReceptacleContact Type = ReceptacleSL-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P SL156 HSG W/RAMP,LRG OPEN |
| Category |
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 已获认证 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | Locking Ramp | Voltage - Supply | 250 VAC |
| Connector Impedance | 压接 | Current Rating (Max) | 6.5 |
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 18-24 AWG | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Connector Type | Crimp |
| Contact Finish | 3.96 [0.156] | Fastening Type | Locking Ramp |
| Mounting Style | 不带 | Number of Rows | 1 |
| Shell Material | 盖 | Connector Usage | Receptacle |
| Height (Inches) | 6.35 | Locking Feature | Locking Ramp |
| Housing Material | Nylon | Length - Overall | 1.126 |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 7 | Termination Finish | 不带 |
| Contact Termination | Crimp | Insulation Diameter | Large |
| Number of Positions | 7 | Compatible Shell Size | SL .156 端子 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | SL-156 Housings | Application Specifics | Wire-to-Board |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN

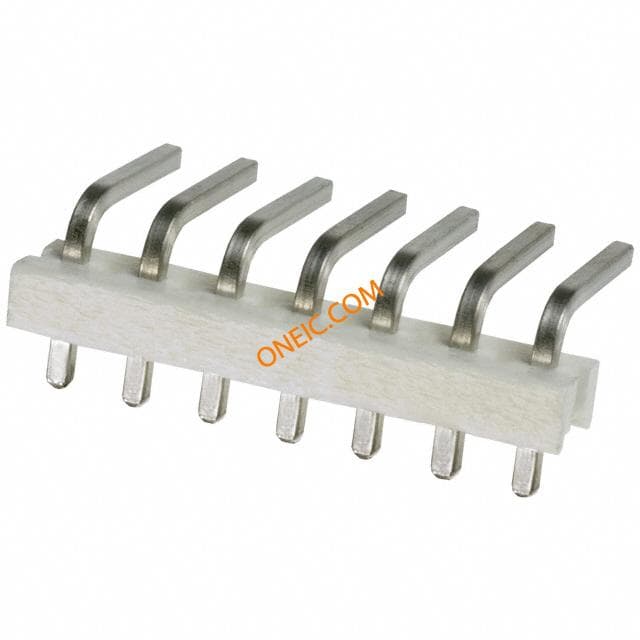

640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU
647485-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN CONTACT 16AWG GOLD CRIMP Power to the Board CONTACT 30 AU SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Plating, Mating Area, MaterialWire Size = 1.29-1.42² [16] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

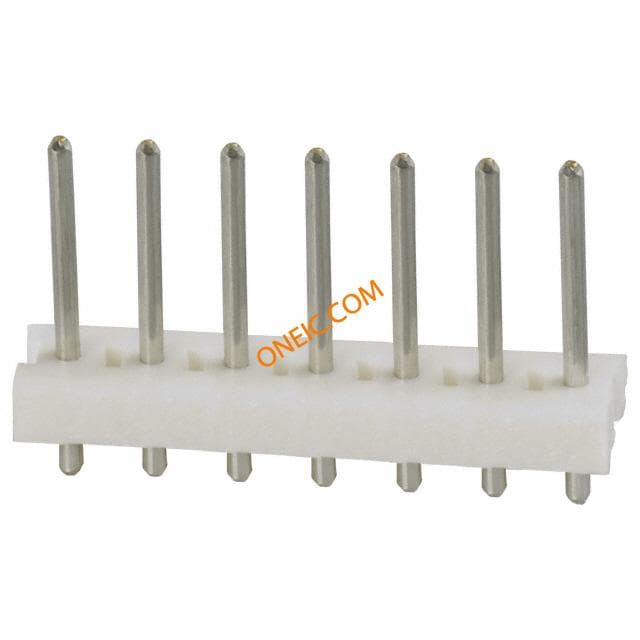

640384-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Round post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR RND SN
644766-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD
647406-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN CONTACT SL156 18-24AWG Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP
641120-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD Headers & Wire Housings 07P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644751-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY R/A 07P MTA156 HDR ASSY R/A
647409-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ L/P LRG MTA, CST, CST-100 II and SL Contacts CONN CONTACT 18-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

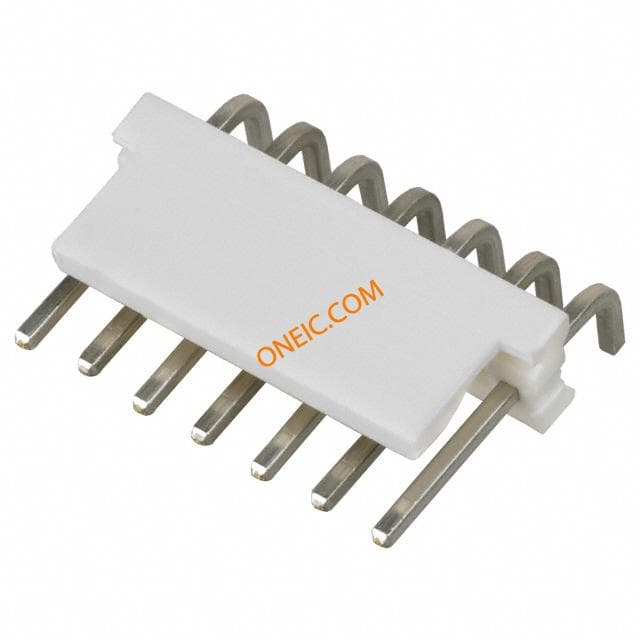

640389-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L
640388-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 7P Round post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 3.96MM MTA-156HEADER-TIN,07PMTA156HDRASSYRNSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 07P MTA156 HDR ASSY RN STR F/L

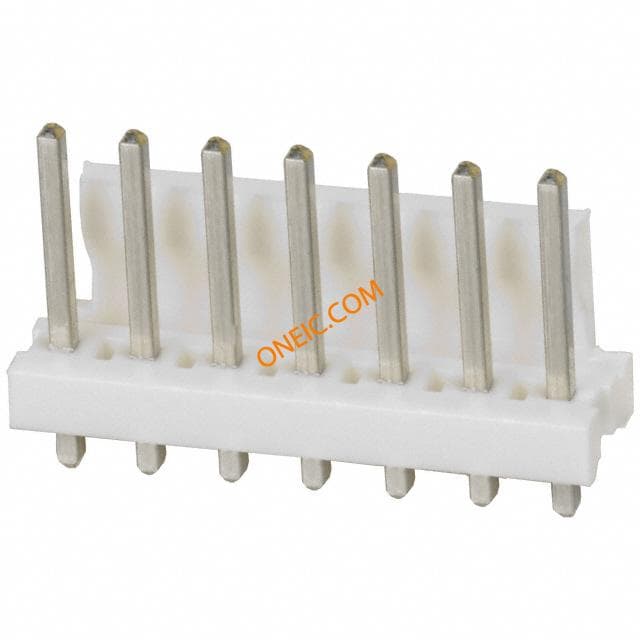

640445-7
