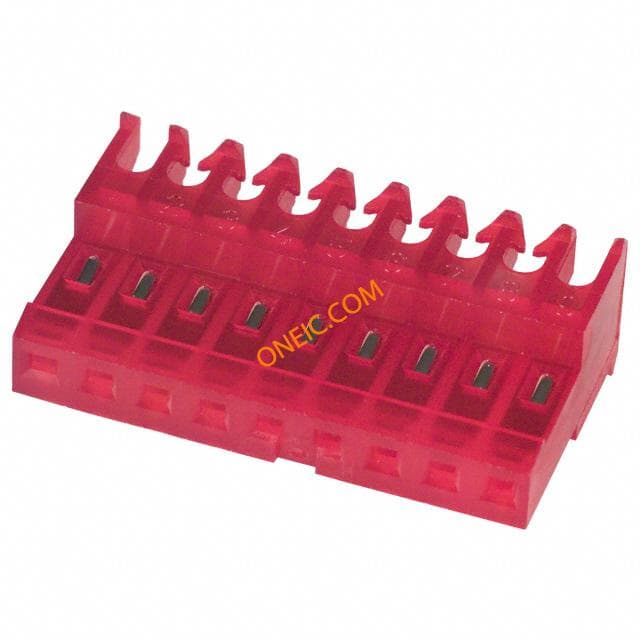

647016-9
| Manufacturer | |
| Description | Conn IDC Connector F 9 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-100 09P MTA100 PSTD CONN ASSY 15AU 09P MTA100 PSTD CONN ASSY 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 75 | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | IDC | Current Rating (Max) | 5 |
Mechanical
| Color | Red | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 25.4 mm [ 1 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 实心, 绞线 | Wire Gauge | 22 AWG |
| Termination | IDT | Contact Type | Male Pin |
| 2nd Connector | Without | Housing Color | Red |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | 不带 | Number of Rows | 1 |
| Plating - Body | Nickel | Shell Material | 标准 |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | 75 |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | 插针 | Mating Orientation | Without |
| Number of Contacts | 9 | Termination Finish | 带有 |
| Contact Termination | Locking Lance | Insulation Diameter | 1.52 mm [ .06 in ] |
| Number of Positions | 9 | Compatible Shell Size | MTA .100 标准连接器 |
| Contact Length - Post | 电源 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Finish Thickness | 15µin (0.38µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.3-0.4² [22] | Static Discharge Shielding | 带有 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Features | Closed End |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
