点击放大查看
6469028-1
| Manufacturer | |
| Description | Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS DUAL R/A HM-ZD Hard Metric Connectors REC 4X010P R/A B-PLANE HMZD Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, FEMALE, 40WAY HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position 2.5 mm Receptacle Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子, 7A HM-ZD 2PR RECP 40P |
| Category |
Business
| Other Names | 64690281 | Part # Aliases | 512-6920 |
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | HM-Zd | Voltage Rating | 250V |
| Current Rating (Max) | 0.700A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Depth | 19.9 mm | Pitch | 2.5 mm |
| Height | 13.35 mm | Weight | 0.002 |
| Packaging | Tube | Termination | Press Fit |
| Contact Type | ACTION PIN Post | Lead Spacing | :2mm |
| Pitch - Post | :2mm | Mounting Type | Through Hole |
| Pitch - Cable | 20.3 [0.8] | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 4 | Connector Style | High Speed |
| Connector Usage | Daughtercard | Shield Material | Phosphor bronze |
| Contact Material | Copper-Nickel-Silicon | Housing Material | Polyester GF |
| Length - Overall | 24.90 [0.980] | Termination Style | Press Fit |
| Color - Connectors | 20 | Number of Contacts | 40 |
| Termination Finish | Tin over Nickel | Contact Termination | :Press Fit Vertical |
| Number of Positions | 2 | Contact Layout, Typical | 40 Signal, 20 Ground |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Hard Metric | Gender | RCP |
| Series | Z-Pack HM-ZD | Manufacturer | AMP |
| Product Type | Receptacle | Number of Columns | 10 |
| Selectively Loaded | No | Number of Positions Loaded | All |
| Number of Positions (Convert From) | 10 | ||
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts
6469076-1
te connectivity / amp
Conn Hard Metric HDR 40 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories HM-ZD 2PR HDR ASSY 1.8MM Hard Metric Connectors HM-ZD 2PR HDR ASSY 1.8MM Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories Product Highlights:20.3 mm Card Slot PitchHeaderPCB Mount Angle = VerticalPairs per Column = 2Columns per Connector = 10Search Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd

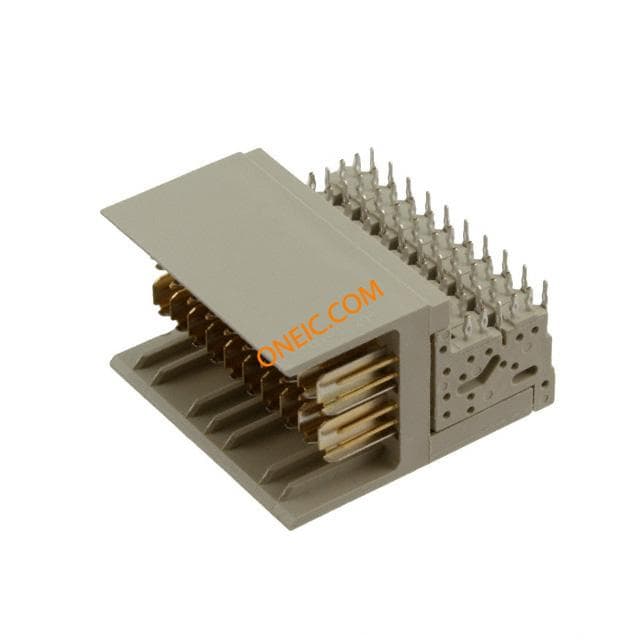

6469169-1
te connectivity / amp
Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 40POS R/A HM-ZD TIN TE Connectivity Z-PACK Series 2.5mm Pitch 40 Way 4 Row Right Angle PCB Header, Solder Termination, 0.7A Hard Metric Connectors HDR 4X010P R/A B-PLANE HMZD Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER, HM-ZD, THT, VERTICAL, 40WAY HMZDPINHDR2PR,HMZD2PRRAHDR40PASSYLF 40 Position 2.5 mm Header Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 公 背板连接器, 焊接端子, 7A HMZD 2PR RA HDR 40P ASSY LF

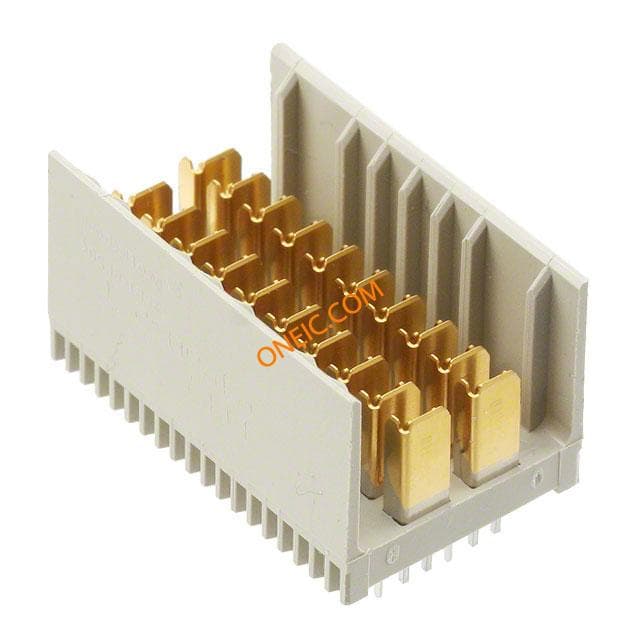

6469025-1
