点击放大查看
643817-7
| Manufacturer | |
| Description | Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 18AWG MTA156 Headers & Wire Housings CLOSED WITH TABS 7P L.R. orange 18 AWG Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Connectors7 PositionMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 18AWG ORA |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| UL File Number | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 VAC | Switch Function | Locking Ramp |
| Voltage - Supply | 600 | Contact Resistance | 3 mohm |
| Connector Impedance | IDC | Current Rating (Max) | 7 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Orange | Depth | 9.02 mm |
| Pitch | 3.96 mm | Height | 18.42 mm |
| Length | 27.74 | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 18 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Housing Color | Orange | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin-Lead |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Shell Material | 标准 | Height (Inches) | 9.02 |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Length - Overall | 27.74 mm |
| Package Quantity | 250 | Panel Mount Type | 不带 |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 7 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 2.41 mm [ .095 in ] | Number of Positions | 7 |
| Compatible Shell Size | MTA .156 头 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 同轴 | Surface Mount Land Size | Without |
| Contact Finish Thickness | 80µin (2.03µm) | Static Discharge Shielding | 带有 |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-156 |
| Features | Closed End, Polarizing Key | Sealable | 否 |
| Product Type | Connector Assemblies | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Similar Parts
640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN
640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU

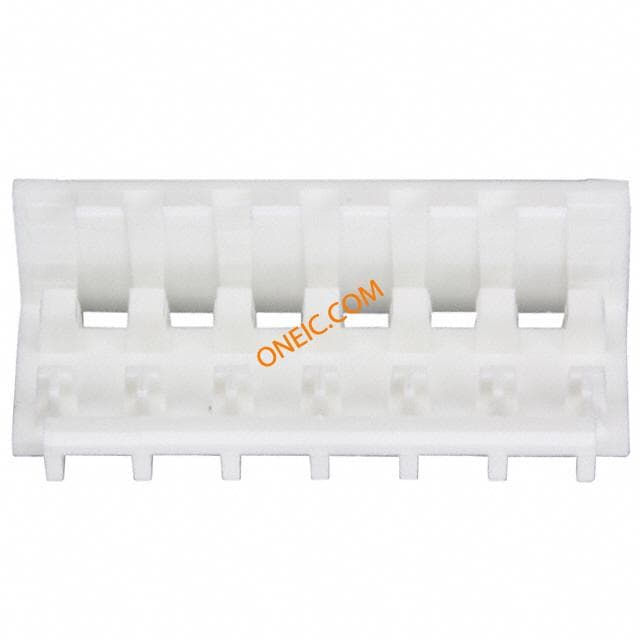

643067-7
