643408-1
| Manufacturer | |
| Description | Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Pin & Socket Connectors 6P PCB VERT HEADER .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN Header vert 6 way Pin UMNL Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,06PUMNLPINHDRASSYPOL94VO TE Connectivity MATE-N-LOK 系列 工业电源 通孔 插头 , 19A额定电流, 600 V 交流 06P UMNL PIN HDR ASSY POL 94VO |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Plug |
Mechanical
| Color | White | Pitch | 6.35 mm |
| Height | 14.73 mm | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Pre Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Primary Material | InterconnectSystem | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Number of Positions | 6 |
Product Info
| Type | Power | Gender | HDR |
| Series | Universal Mate-N-Lok | Features | Board Guide |
| Manufacturer | MATE-N-LOK | Product Type | Headers |
| Number of Ports | 1 Port | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 85C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts

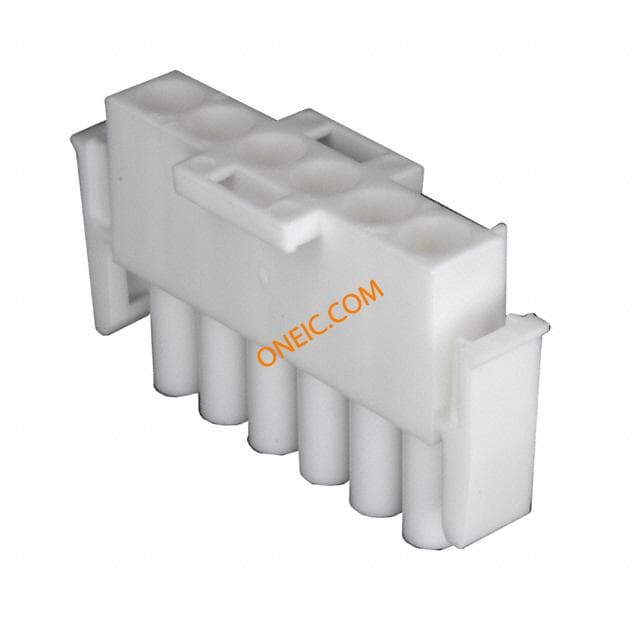

640581-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Pin & Socket Connectors 6 P IN-LINE PLUG Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, 6WAY CONNECTOR,SOFTSHELL,UNIVERSALMATE-N-LOK,6POSITION,FREEHANGING,WHITE Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 640581-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG
640585-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Individual Pin & Socket Connectors 6P IN-LINE PLUG .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-2 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Conn Housing PL 6 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, RECEPT Plug,6Postition,UniversalMATE-N-LOK,6.35mmCenterline,Matrix Crimp housing Pitch6.35 mm Poles 6 Single row / Free hanging/cable mount MATE-N-LOK Universal, 640585-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG V2 NATL
643424-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 6 Way 3 Row Straight PCB Socket Through Hole Power Power to the Board 06P UMNL HDR ASSY PO Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 6WAY HEADERVERTPCB6WAYPIN TE Connectivity Universal MATE-N-LOK 系列 3行 6路 直 6.35mm节距 通孔 印刷电路板插座, 功率 06P UMNL HDR ASSY POL 94VO

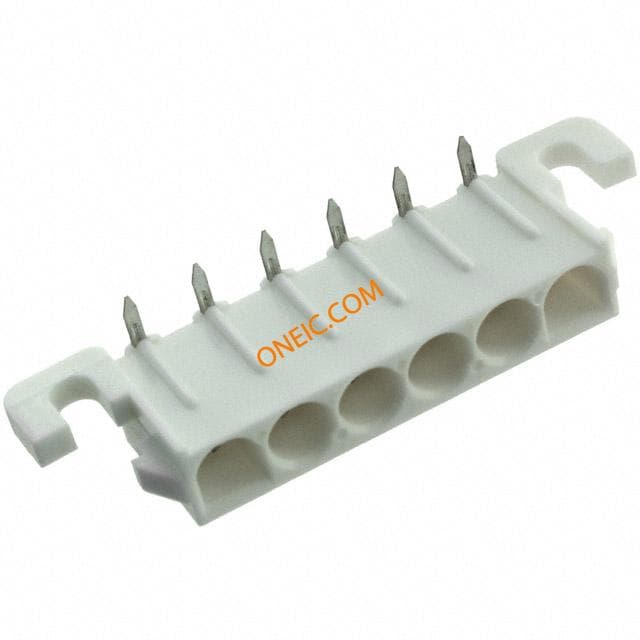

643234-1
