640717-1
| Manufacturer | |
| Description | 12P UMNL STR/REL Connector Accessories Strain Relief 12 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 12POS Mate-N-Lok cable-clamp housing 12W Pin & Socket Connectors STRN RLF 12P MATRIX Connector Accessories Strain Relief 12 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 12Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 12WAY Connector;SoftShell;12;UniversalMATE-N-LOKII;Nylon;Matrix;AMPBrand Strain relief shell, 640717-1, TE Connectivity TE Connectivity 640717 12路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Number of Outputs | 12 | Connector - Voltage Input | Universal MATE-N-LOK II |
Mechanical
| Color | White | Depth | 33.02 mm |
| Width | :33mm | Height | 4.73 mm |
| Length | :33mm | Weight | 0.006 |
| Material | :Nylon | Wire Diameter | 3.81 â 19.05 [0.150 â 0.750] |
| Connector Type | SoftShell | Mounting Style | Panel |
| Size, Supplied | Yes | Housing Material | Nylon |
| Length - Overall | 32.51 mm | Primary Material | Interconnect |
| Termination Style | Screw | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :White | Number of Contacts | 12 |
| Number of Positions | 12 | Material - Insulation | :Nylon (Polyamide) |
| Contact Layout, Typical | Matrix | Diameter - Outside, Non-Expanded | :19.05mm |
Product Info
| Note | Strain relief part number represents one half of a strain relief. Two of a part | Type | Strain Relief |
| Style | :#6 x 16 mm Lg Type B Pan head sheet metal screw | Series | Universal Mate-N-Lok |
| Manufacturer | MATE-N-LOK | Product Type | Strain Relief |
| Accessory Type | Strain Relief | Number of Circuits | 12 |
| RF Family/Standard | 640717 | For Use With/Related Products | Universal MATE-N-LOK II Series |
Documents & Media
Similar Parts
770056-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 12POS UNIV-MNL II Pin & Socket Connectors 12 MATRIX CAR REAR Conn Housing RCP 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL II CAP REAR 94VO
770042-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 12POS UNIV-MNL II Pin & Socket Connectors FREE HNG PLUG 12P Conn Housing PL 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UniversalMATE-N-LOKII,Connector,19A,Plug,Rear,.25"Centerline 12P UMNL II PLUG REAR 94VO
770022-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UMNL-II (2PC) Pin & Socket Connectors 12 MATRIX PLUG Conn Housing PL 12 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;12;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 770022-1, TE Connectivity 12P UMNLII IN-LNE PLUG HSG KIT
641777-1
te connectivity / amp
UMNL STR/REL ADAPTER NATL Soft Shell - Accessories ADAPTER FOR CAP HOUSING RELIEF Pin & Socket Connectors NATURAL NYLON CAP Connector Accessories Cap Housing Adapter Nylon Natural Connector Accessories Cap Housing Adapter Nylon Natural Product Highlights:Cap Housing AdapterUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalUL 94V-2Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, MATE-N-LOK CAPHOUSINGADAPTER,UNIVERSALMATE-N-LOK,STRAINRELIEF,NYLON,NATURAL

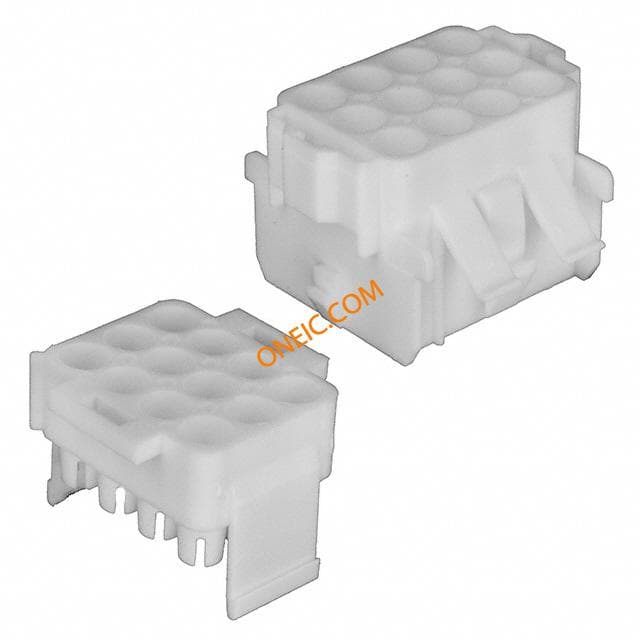

770029-1
